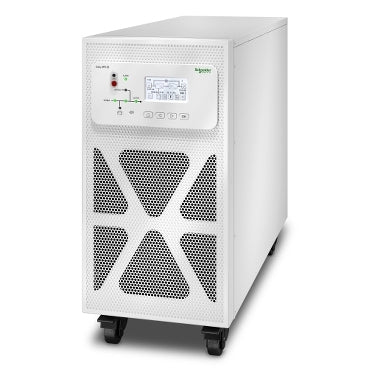

APC E3SUPS15K3I | Easy UPS 3S Online UPS, 15 kVA, 400 V, 3:1, External Batt

Name: APC E3SUPS15K3I | Easy UPS 3S Online UPS, 15 kVA, 400 V, 3:1, External Batt
Brand: APC
SKU: E3SUPS15K3I
Price: 10104.19 AUD
Availability: Discontinued

Authorised APC Partner

SKU:E3SUPS15K3I

Stock Status: Enquire

$10,104.19 inc. GST

$9,185.63 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

End of life

This product is end of life. Contact us for alternatives.

Description

The Easy UPS 3S 15 kVA online UPS delivers double-conversion power protection rated at 15 kVA / 15 kW at 400 V. It uses a 3:1 configuration, with three-phase input and single-phase output, and has no internal batteries, so it runs from an external battery cabinet or string for flexible runtime planning.

It accepts a wide input voltage window of 304-477 V and a 45-65 Hz input frequency range. It supports external battery configurations of 16-20 blocks with up to 3000 W charging power, and an ECO mode improves efficiency when conditions allow. It suits small data rooms, IT equipment and light-industrial loads.

Features

- Online double-conversion topology for continuous power conditioning
- ECO mode for higher operating efficiency
- Supports external battery configurations of 16-20 blocks
- Wide input voltage window of 304-477 V
- 3:1 configuration suits three-phase supply feeding single-phase loads
- Part of the Easy UPS 3S range for small data rooms, IT and light-industrial loads

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 15 kVA / 15 kW
- 400 V nominal, 3-phase input (L1, L2, L3, N, PE)
- 3:1 configuration (3-phase input, 1-phase output)
- For external batteries (no internal batteries)
- Input voltage range 304-477 V
- Input frequency range 45-65 Hz
- Nominal input current (380/400/415 V): 24 / 23 / 22 A
- Maximum input current (380/400/415 V): 29 / 28 / 26 A
- Input current limitation (380/400/415 V): 33 / 31 / 30 A
- Maximum charging power 3000 W
- Nominal battery voltage (16-20 blocks): +/-192 to +/-240 VDC
- Nominal float voltage (16-20 blocks): +/-216 to +/-270 VDC

FAQs

Q: Does this UPS include batteries?
A: No. The E3SUPS15K3I has no internal batteries and is designed to run from an external battery cabinet or string.

Q: What does 3:1 mean?
A: It is a three-phase input, single-phase output configuration, so a three-phase supply feeds single-phase loads.

Q: How many battery blocks does it support?
A: It supports external battery configurations of 16-20 blocks, with a nominal battery voltage of +/-192 to +/-240 VDC.

Q: What is the input voltage and frequency range?
A: The input voltage range is 304-477 V at a nominal 400 V, with an input frequency range of 45-65 Hz.

Q: What is the maximum battery charging power?
A: The maximum charging power is 3000 W, which is relevant when sizing the external battery string for runtime and recharge time.

Q: What load capacity does it provide?
A: It is rated at 15 kVA / 15 kW, suitable for small data rooms, IT equipment and light-industrial loads.
