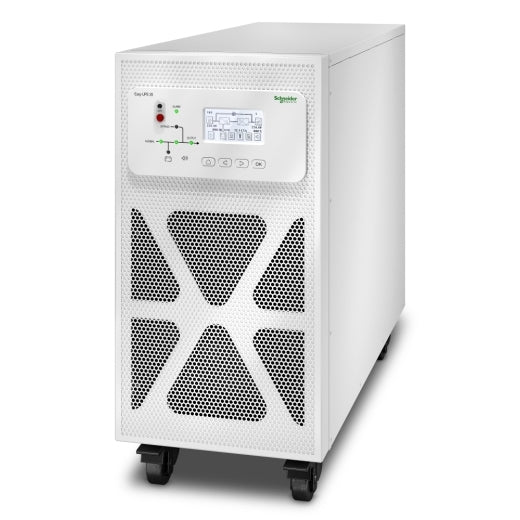

• White schneider electric s20r-15kva ups unit with perforated front panel and triangular vents in apc easy ups 3s online double-conversion 10kva
1 1

APC

APC E3SUPS10K3I | Easy UPS 3S Online UPS, 10kVA/10kW, 400V 3:1, External Batteries

APC E3SUPS10K3I | Easy UPS 3S Online UPS, 10kVA/10kW, 400V 3:1, External Batteries

Authorised APC Partner

E3SUPS10K3I

Stock Status: Enquire

$9,036.27 inc. GST
$8,214.79 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.
End of life
This product is end of life. Contact us for alternatives.

Description

The Easy UPS 3S E3SUPS10K3I is a 10kVA/10kW double-conversion online UPS with a 400V three-phase input and a 230V single-phase output (3:1). It is designed for small and medium business power protection and is supplied without batteries, so the battery solution and runtime can be tailored with external battery packs.

Built for demanding sites, it includes a dust filter and conformance-coated boards for harsh environments. Input voltage is selectable between 380V, 400V and 415V, with output selectable at 220V, 230V or 240V. Parallel and temperature sensor interface ports are provided for expansion and monitoring, and the unit is a floor-standing, non-rack-mountable design.

Features

- True online double-conversion topology with zero transfer time
- Supplied without batteries so runtime can be scaled with external battery solutions
- Dust filter and conformance-coated boards suit harsh environments
- Parallel and temperature sensor interface ports
- Selectable input and output voltages for site flexibility
- Designed to be easy to install, operate, maintain and service for small and medium businesses

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Capacity: 10kVA / 10kW
- Topology: Double conversion online
- Nominal input: 400V 3-phase (380V and 415V selectable)
- Input voltage range for main operations: 304-477V
- Input frequency: 45-65Hz
- Input power factor at full load: 0.99
- Input current distortion: less than 4% at full load
- Maximum input current: 18A
- Nominal output: 230V single-phase (220V and 240V selectable)
- Output voltage distortion: less than 3%
- Output frequency (sync to mains): 50Hz or 60Hz
- Load crest factor: 3:1
- Overload: 10 minutes at 125%, 60 seconds at 150%
- Maximum available short circuit current: 10kA
- Batteries: supplied without batteries (external batteries)
- Interface ports: Parallel, temperature sensor
- Dimensions (H x W x D): 530 x 250 x 700mm
- Net weight: 36kg
- Mounting: not rack-mountable
- Operating temperature: 0 to 40C
- Operating humidity: 0-95% non-condensing
- Approvals: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM
- Included: dust filter, installation guide

FAQs

Q: Does the E3SUPS10K3I include batteries?
A: No. It is supplied without batteries and is designed for use with external batteries, which lets you size the battery solution and runtime to your requirements.

Q: What does 400V 3:1 mean for this UPS?
A: It has a three-phase 400V input and a single-phase 230V output. Input is selectable at 380V, 400V or 415V and output at 220V, 230V or 240V.

Q: What topology does this UPS use?
A: It is a double-conversion online UPS, which continuously conditions power to the load and provides zero transfer time to battery.

Q: Can this UPS be rack mounted?
A: No. It is a floor-standing unit measuring 530 x 250 x 700mm and is not rack-mountable.

Q: Is it suitable for dusty or harsh environments?
A: It includes a dust filter and conformance-coated boards for harsh environments, and it operates from 0 to 40C at up to 95% non-condensing humidity.

Q: What interface ports are provided?
A: It has a parallel interface port and a temperature sensor interface port.
