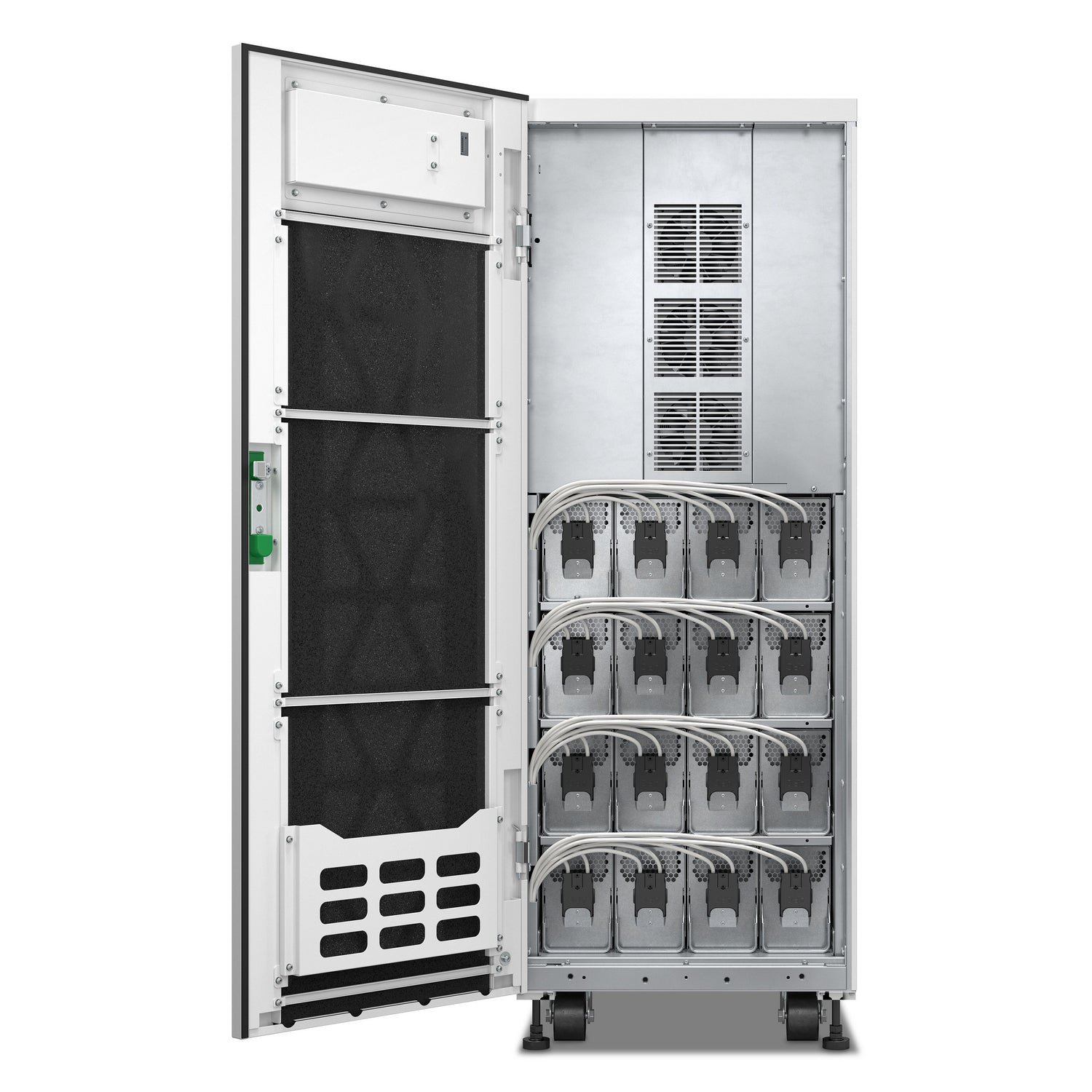

APC E3SP40KHB | Easy UPS 3S Pro 40kVA Online UPS, 3:3, High Tower, Internal Batteries

Authorised APC Partner

SKU:E3SP40KHB

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Easy UPS 3S Pro 40kVA 400V 3:3 online UPS is a three-phase, double-conversion power protection solution rated 40 kVA / 40 kW for small and medium businesses. This high tower model has space for internal lead-acid batteries and is supplied without batteries, so runtime can be customised to suit the site. It delivers clean 400 V three-phase output with a touch screen LCD for monitoring and control.

Built for demanding environments, the unit includes a dust filter and conformal-coated boards. Up to four UPSs can be paralleled for added capacity or redundancy, and extended runtime options are available. It is EcoStruxure IT compatible and replaces the earlier Easy UPS 3S E3SUPS40KHB.

Features

- Double-conversion online protection for critical loads
- Supplied without batteries so runtime can be customised
- Parallel up to 4 UPSs for capacity or redundancy
- Extended runtime options available
- Dust filter and conformal-coated boards for harsh environments
- Touch screen LCD for monitoring and configuration
- EcoStruxure IT compatible
- Easy to install and start up

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 40 kVA / 40 kW output capacity
- Double conversion online topology
- 3:3 phase, 400 V input and output (380/415 V also supported)
- Input frequency 40-70 Hz, output frequency 50/60 Hz
- Maximum input current 61 A
- Input current THD less than 3% at full load
- Output voltage THD less than 1% linear load, less than 5% non-linear load
- Output overload: 10 minutes at 125%, 60 seconds at 150%
- Hard wire input and output connection
- Internal lead-acid battery space, batteries not included
- Touch screen LCD user interface
- Parallel up to 4 UPSs
- Tower form factor, 500 x 940 x 1400 mm (W x D x H), 151 kg
- Noise level 63 dB, IP20, operating temperature 0 to 40 C

FAQs

Q: Does the E3SUPS40KHB include batteries?
A: No. This model is supplied without batteries. It has space for internal lead-acid batteries so you can choose the runtime to suit your site.

Q: What input and output voltage does this UPS use?
A: It is a 3:3 model with 400 V three-phase input and output, and also supports 380 V and 415 V. Both input and output are hard wired.

Q: Can multiple units be paralleled?
A: Yes. Up to four Easy UPS 3S Pro units can be paralleled for additional capacity or redundancy.

Q: What is the output capacity?
A: The UPS is rated 40 kVA / 40 kW and runs a double-conversion online topology.

Q: Is runtime extendable?
A: Yes. Extended runtime options are available, and because batteries are supplied separately the runtime can be tailored to your requirements.

Q: Which earlier model does this replace?
A: It replaces the earlier Easy UPS 3S E3SUPS40KHB.
