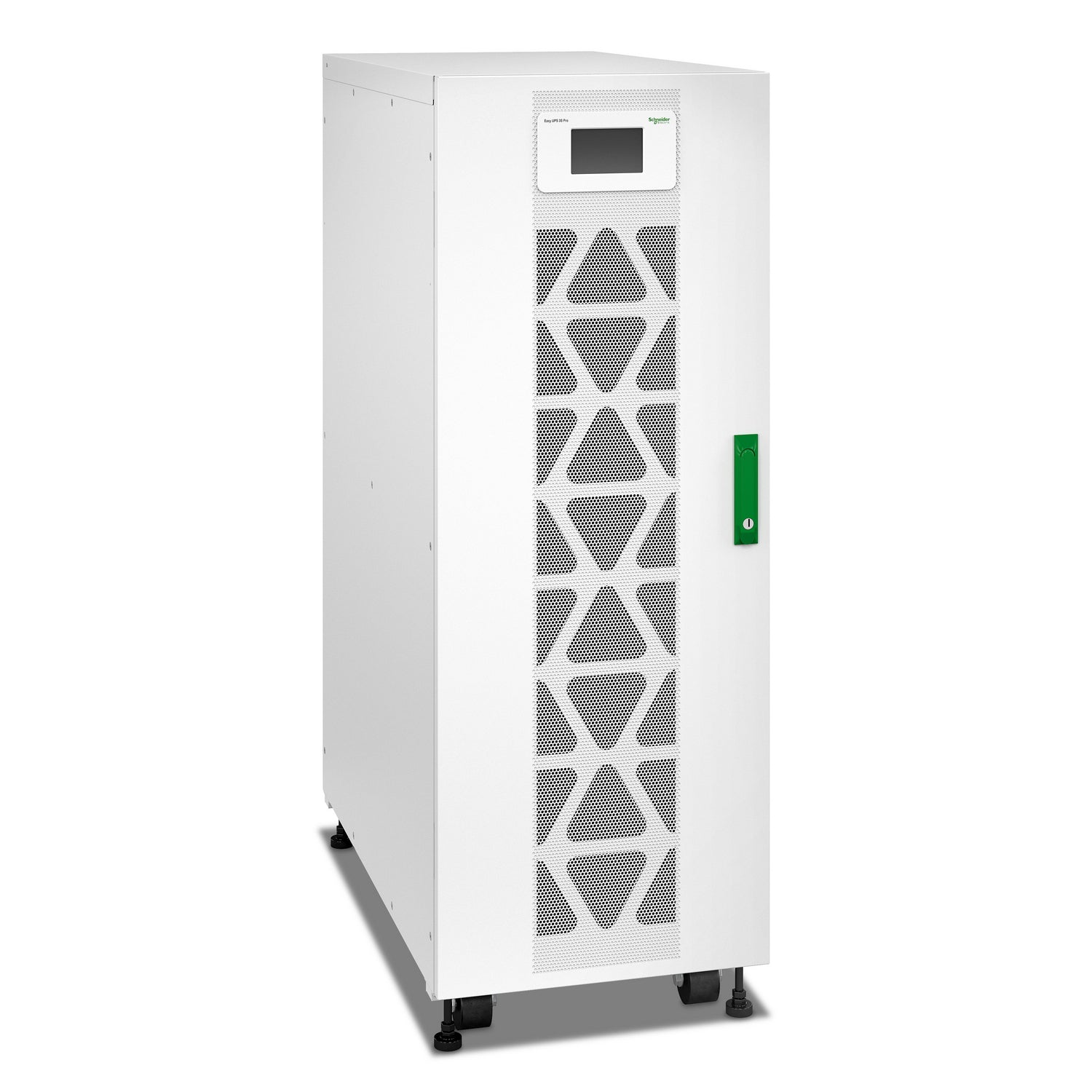

APC E3SP30KHB | Easy UPS 3S Pro 30kVA Online Double-Conversion 3:3 Tower UPS, Internal

APC E3SP30KHB | Easy UPS 3S Pro 30kVA Online Double-Conversion 3:3 Tower UPS, Internal

E3SP30KHB

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The APC Easy UPS 3S Pro 30kVA Tower UPS delivers online double-conversion power protection in a three-phase 3:3 configuration at 400V, purpose-built for organisations that demand continuous, clean power for critical IT, data centre, and industrial loads. With 30kVA/30kW output capacity and internal modular battery strings expandable from 2 to 4, this unit provides scalable runtime without external battery cabinets — making it ideal for space-constrained enterprise deployments.

Designed as part of the Schneider Electric Easy UPS 3S Pro family, the E3SP30KHB supports an input voltage range of 380V–415V and features an intuitive LCD touchscreen for at-a-glance monitoring and management. High-efficiency operation reduces energy costs over the unit's lifecycle, while compatibility with APC maintenance bypass panels and Battery Circuit Breaker Box accessories ensures serviceability without downtime. Visit iptrading.com.au to secure your order — enterprise-grade hardware with expert support.

Features

- Online double-conversion technology provides continuous, zero-transfer-time power protection for critical loads
- Modular internal battery strings expandable from 2 to 4 x 7Ah for increased runtime without external cabinets
- Three-phase 3:3 input/output topology supports large enterprise, data centre, and industrial loads
- Intuitive LCD touchscreen display simplifies local monitoring, configuration, and management
- High-efficiency operation reduces energy consumption and total cost of ownership
- Compatible with APC maintenance bypass panels for zero-downtime servicing
- Supports Battery Circuit Breaker Box accessories for safe, code-compliant battery management
- Part of the Schneider Electric Easy UPS 3S Pro IEC family with consistent ecosystem accessory support
- Tower (High) form factor suits floor-standing installation in data centres and equipment rooms

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output Power: 30 kVA / 30 kW
- Input/Output Voltage: 400V AC
- Topology: 3:3 (Three-phase in, Three-phase out)
- Technology: Online Double-Conversion
- Form Factor: Tower (High)
- Battery Configuration: Internal (modular battery strings)
- Standard Battery Strings: 2 x Internal 7Ah (expandable to 4)
- Input Voltage Range: 380V – 415V (3-phase)
- Product Weight: 451 kg

FAQs

Q: What does '3:3 topology' mean for the Easy UPS 3S Pro 30kVA?
A: A 3:3 topology means the UPS accepts three-phase input power and delivers three-phase output power. This is required for large enterprise and industrial loads — such as server racks, data centre infrastructure, and heavy machinery — that require balanced, three-phase power distribution rather than single-phase output.

Q: How is runtime extended on the E3SP30KHB?
A: The E3SP30KHB uses modular internal battery strings. It ships with 2 x 7Ah internal battery strings and supports expansion to 4 strings, effectively doubling available runtime without requiring external battery extension cabinets. This makes it ideal for space-constrained deployments.

Q: What is online double-conversion and why does it matter?
A: Online double-conversion continuously converts incoming AC power to DC and back to AC, completely isolating connected equipment from mains power anomalies including sags, surges, frequency variations, and full outages. This provides the highest level of power protection available and is the recommended technology for critical IT and industrial loads.

Q: Can the E3SP30KHB be serviced without powering down connected equipment?
A: Yes. The Easy UPS 3S Pro is compatible with APC maintenance bypass panels, allowing technicians to perform battery maintenance or UPS servicing while keeping connected loads powered. Battery Circuit Breaker Box accessories are also supported for safe battery management.

Q: Is this UPS suitable for Australian data centres and enterprise environments?
A: Yes. The E3SP30KHB operates at 400V three-phase input (380V–415V range), which aligns with standard Australian commercial and industrial three-phase supply voltages. It is well-suited for enterprise data centres, server rooms, and industrial facilities requiring 30kVA of protected three-phase power.

Q: Can I purchase the APC Easy UPS 3S Pro 30kVA in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller stocking APC UPS solutions including the Easy UPS 3S Pro range. Visit iptrading.com.au to request a quote or place an order, with expert support available for procurement and pre-sales enquiries.
