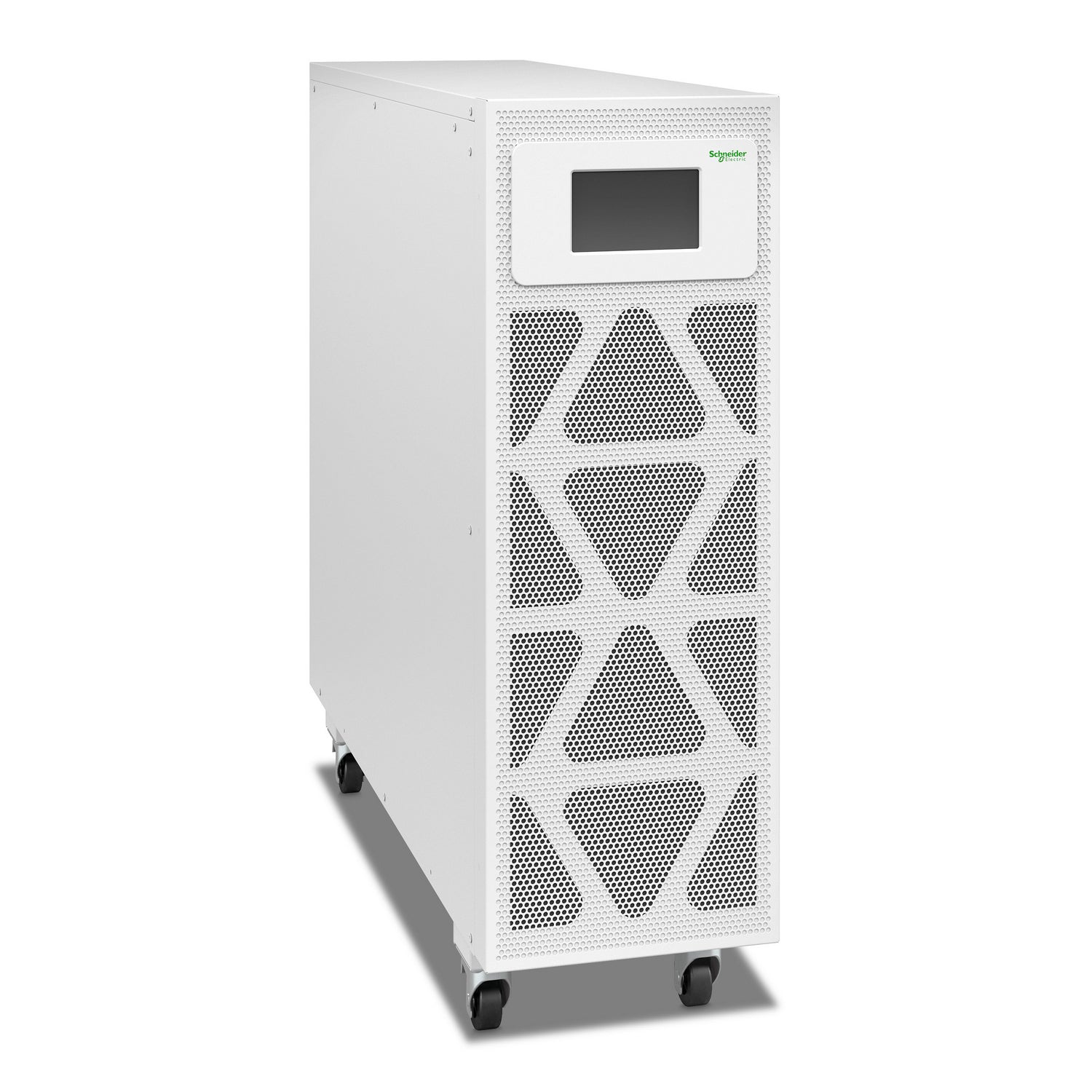

APC E3SP30KH | Easy UPS 3S Pro Online 3-Phase UPS, 30 kVA, 400 V, 3:3, External Batteries

APC E3SP30KH | Easy UPS 3S Pro Online 3-Phase UPS, 30 kVA, 400 V, 3:3, External Batteries

E3SP30KH

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The APC Easy UPS 3S Pro is a 30 kVA online double-conversion UPS delivering clean, regulated three-phase power for small and medium businesses running critical server rooms, electrical rooms, and industrial environments. With a 3:3 (three-phase in, three-phase out) topology at 400 V, it provides 30 kW of output power with less than 1% output THD on linear loads — protecting sensitive IT and industrial equipment from power disturbances. Supplied without batteries, this unit is designed for external VRLA battery configurations, giving you full flexibility to scale runtime to your operational requirements.

Beyond its robust power protection, the Easy UPS 3S Pro features an intuitive touchscreen LCD for real-time monitoring of load, battery status, voltage, frequency, and fault logs. Conformance-coated boards and a built-in dust filter make it suitable for harsher installation environments, while its compact footprint (796 x 250 x 916 mm, 56 kg) simplifies deployment. Compatible with Schneider Electric EcoStruxure for centralised remote monitoring and management. Contact iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- Online double-conversion topology provides zero transfer time and continuous power conditioning
- 3:3 three-phase configuration for balanced, enterprise-grade power distribution
- External battery design allows fully customisable and scalable runtime
- Intuitive touchscreen LCD displays load, battery status, voltage, frequency, and fault history
- Dust filter and conformance-coated boards for reliable operation in harsher environments
- Low audible noise (64 dB) suitable for near-workspace or office-adjacent installation
- Compact form factor (796 x 250 x 916 mm) simplifies deployment in server and electrical rooms
- EcoStruxure compatible for centralised remote monitoring and management
- Green Premium certified — RoHS and REACh compliant
- Output THD <1% on linear loads — protects sensitive IT and industrial equipment

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Output Power: 30 kVA / 30 kW
- Topology: Online Double-Conversion
- Phase Configuration: 3:3 (Three-phase in, Three-phase out)
- Input Voltage: 400 V (380–415 V range)
- Output Voltage: 400 V, Three-phase
- Input Current (max): 55 A
- Output Frequency: 50/60 Hz (synchronised to mains)
- Output THD: <1% (linear load), <5% (non-linear load)
- Battery Type: External VRLA (batteries not included)
- Dimensions (W x D x H): 796 x 250 x 916 mm
- Weight: 56 kg
- Noise Level: 64 dB
- Protection Class: IP20
- Operating Temperature: 0–40 °C
- Relative Humidity: 0–95% (non-condensing)
- Certifications: Green Premium (RoHS / REACh compliant)

FAQs

Q: Can I purchase the APC Easy UPS 3S Pro 30 kVA (E3SP30KH) in Australia?
A: Yes. IP Trading (iptrading.com.au) stocks and supplies the APC Easy UPS 3S Pro range in Australia. Contact our team for pricing, lead times, and project-volume support.

Q: Does this UPS come with batteries included?
A: No. The E3SP30KH is designed for external VRLA batteries, which are purchased and configured separately. This allows you to tailor the runtime to your specific site requirements — from a few minutes of bridging power to extended operation.

Q: What is the difference between a 3:3 and 1:1 UPS topology?
A: A 3:3 UPS accepts three-phase input and delivers three-phase output, making it ideal for data centres, industrial facilities, and server rooms with three-phase power distribution. A 1:1 single-phase UPS is suited to smaller loads with single-phase feeds. The E3SP30KH's 3:3 configuration ensures balanced load distribution across all phases.

Q: What type of power protection does online double-conversion provide?
A: Online double-conversion continuously converts incoming AC power to DC and back to AC, completely isolating connected equipment from mains fluctuations, surges, sags, and noise. This provides the highest level of power conditioning and zero transfer time on mains failure — essential for critical IT and industrial loads.

Q: Can this UPS be monitored and managed remotely?
A: Yes. The Easy UPS 3S Pro is compatible with Schneider Electric EcoStruxure, enabling centralised remote monitoring and management of power events, load levels, battery health, and fault logs across your infrastructure.

Q: Is this UPS suitable for installation in dusty or challenging environments?
A: Yes. The E3SP30KH includes a built-in dust filter and conformance-coated circuit boards, improving reliability in environments with elevated dust or humidity. It is rated IP20 and operates in temperatures from 0 to 40 °C with up to 95% relative humidity (non-condensing).

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
