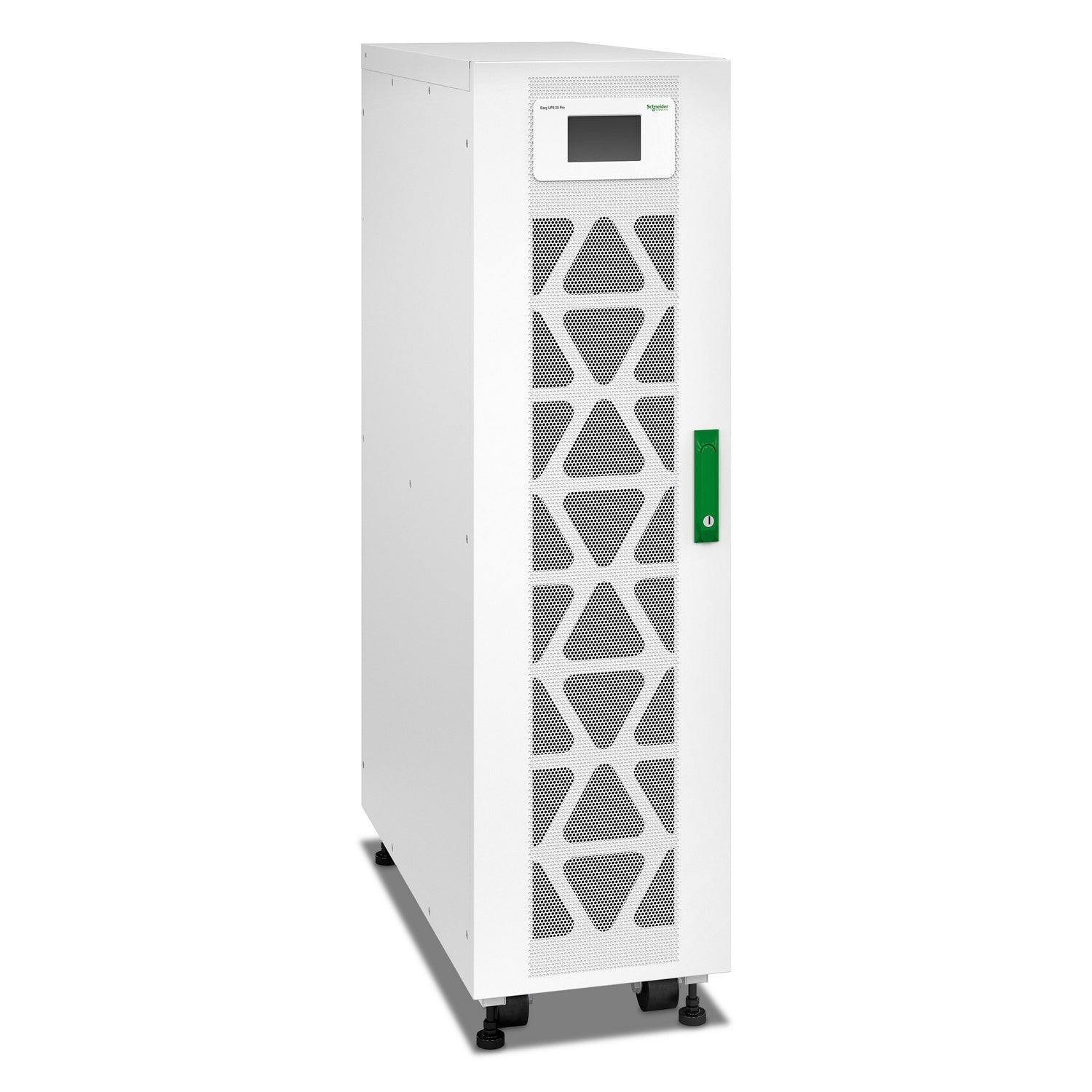

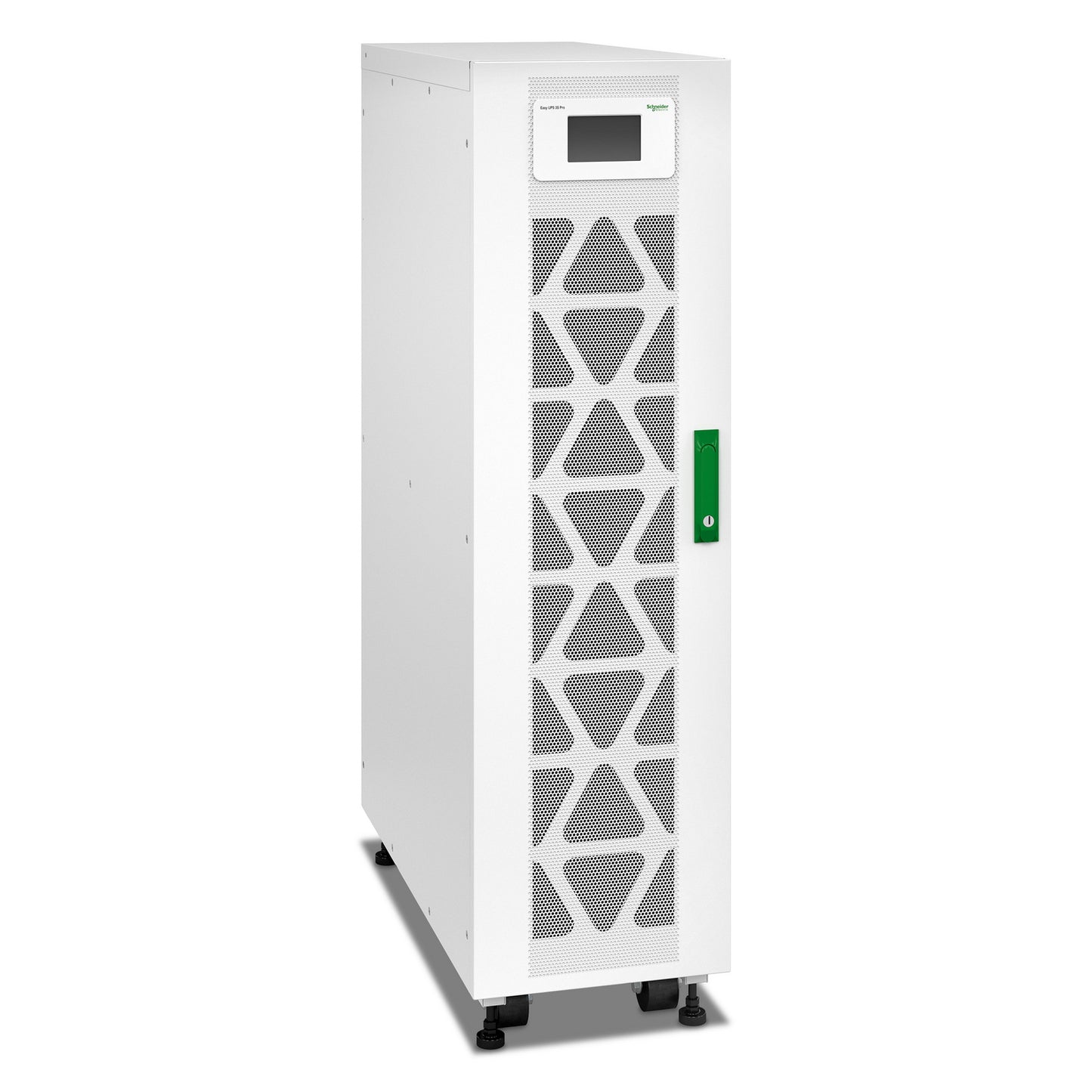

APC E3SP10KHB | Easy UPS 3S Pro 10kVA Tower UPS, 400V 3:3, No Batteries

Name: APC E3SP10KHB | Easy UPS 3S Pro 10kVA Tower UPS, 400V 3:3, No Batteries
Brand: APC
SKU: E3SP10KHB
Price: 8773.15 AUD
Availability: BackOrder

Authorised APC Partner

SKU:E3SP10KHB

Stock Status: Enquire

$8,773.15 inc. GST

$7,975.59 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The APC Easy UPS 3S Pro 10kVA tower UPS is a three-phase 3:3 double-conversion online UPS rated at 10 kVA / 10 kW at 400 V. Supplied without batteries, it takes internal battery modules so runtime can be configured to suit small and medium data centres, electrical rooms and other business-critical loads. Hard-wired input and output, a touch screen LCD and a pre-installed Network Management Card 3 make it straightforward to deploy and monitor.

Online VFI topology delivers zero transfer time and continuous power conditioning, with input harmonic distortion below 3% at full load and a load power factor range of 0.7 leading to 0.7 lagging without derating. A dust filter and conformance-coated boards support operation in harsher environments, and up to four units can be paralleled for added capacity or redundancy.

Features

- Double-conversion online technology with zero transfer time and full power conditioning
- Three-phase in, three-phase out, suited to small and medium data centres and electrical rooms
- Supplied without batteries so runtime can be configured with compatible internal battery modules
- Modular battery architecture with expandable battery strings
- Dust filter and conformance-coated boards for harsh environments
- Parallel operation of up to 4 UPSs for capacity or redundancy
- Touch screen LCD and pre-installed Network Management Card 3 for local and remote monitoring
- Easy to install and start up

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 10 kVA / 10 kW rated output
- Double conversion online (VFI) topology
- Input and output: 400 V three-phase (380/415 V selectable), 3:3
- Hard-wired input and output connections
- Maximum input current: 16 A
- Network frequency: 40-70 Hz
- Input harmonic distortion: less than 3% at full load
- Load power factor: 0.7 leading to 0.7 lagging without derating
- Crest factor: 3:1
- Output frequency: 50/60 Hz +/- 0.1%
- Output overload: 10 minutes at 125%, 60 seconds at 150%
- Supplied without batteries, internal lead-acid battery modules, 384 V discharge battery voltage
- Touch screen LCD user interface
- Pre-installed Network Management Card 3
- Dimensions (H x W x D): 140 x 38 x 90.7 cm
- Net weight: 119 kg
- Operating temperature: 0 to 40 C
- IP20 protection, 53 dB acoustic level
- Certifications: EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, ISTA 2B

FAQs

Q: Does the E3SP10KHB include batteries?
A: No. This model is supplied without batteries and is designed to take internal battery modules, so runtime can be configured to suit your requirements.

Q: What input and output does this UPS use?
A: It is a 3:3 three-phase unit with 400 V input and output (380/415 V selectable), connected by hard wiring rather than plug sockets.

Q: Is this UPS single-phase or three-phase?
A: Three-phase in and three-phase out (3:3), rated 10 kVA / 10 kW.

Q: Can multiple units be paralleled?
A: Yes. Up to four UPSs can be operated in parallel for additional capacity or redundancy.

Q: Does it include network management?
A: Yes. A Network Management Card 3 is pre-installed, and the unit also has a touch screen LCD for local status and configuration.

Q: What type of UPS topology is this?
A: Double conversion online (VFI), which provides zero transfer time and continuous power conditioning for connected equipment.
