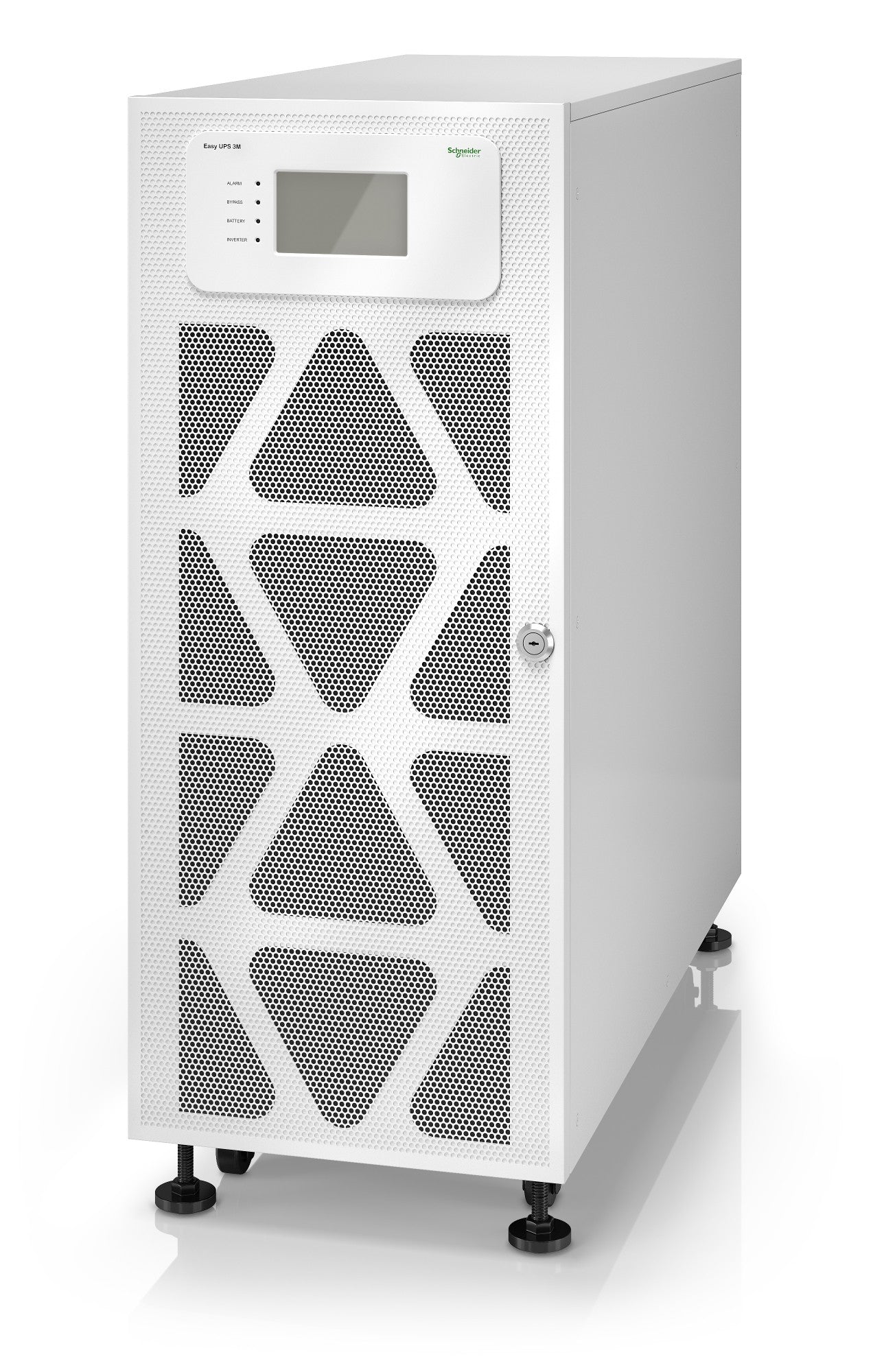

• APC E3MUPS80KHS 80kVA UPS with Schneider Electric S200-15K white front panel
1 1

APC

APC E3MUPS80KHS | Easy UPS 3M 80kVA 400V 3:3 Online UPS, External Batteries, 5x8

APC E3MUPS80KHS | Easy UPS 3M 80kVA 400V 3:3 Online UPS, External Batteries, 5x8

Authorised APC Partner

E3MUPS80KHS

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Easy UPS 3M 80kVA 400V 3:3 online UPS is a three-phase double-conversion power protection solution for small and medium data centres and other business-critical loads. It delivers 80kVA / 80000 W with 400V three-phase input and output, is configured for external batteries (batteries not included), and includes Start-up 5x8 service to get the system commissioned.

This tower UPS offers efficiency of up to 94.9%, an LCD display, ECO mode and cold start capability. Up to six units can be paralleled for added capacity or redundancy, and the Easy Loop test lets you verify UPS performance before connecting the load, without a load bank. It is EcoStruxure-ready for cloud-based remote monitoring and management, and supports battery flexibility including Galaxy Lithium-ion battery cabinets.

Features

- Online double-conversion protection for business-critical loads
- Parallel up to 6 units for capacity or redundancy
- Battery flexibility, including compatibility with Galaxy Lithium-ion battery cabinets
- Easy Loop test verifies UPS performance before connecting the load, no load bank needed
- IP20 as standard with optional IP30, IP40 and IPX2 kits
- EcoStruxure-ready for cloud-based remote monitoring and management
- Easy to install, connect, use and service
- Includes Start-up 5x8 service

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Output power capacity: 80 kVA / 80000 W
- UPS topology: Double-conversion (Online)
- Input / output: 400V, 3-phase in, 3-phase out (3:3)
- Input operation voltage: 342 to 477 V
- Output operation voltage: 380 to 415 V
- Input frequency: 40/70 Hz, output frequency: 50/60 Hz
- Input power factor: 0.99
- Maximum current: 146 A
- Efficiency: up to 94.9%
- Output waveform: Sine, voltage THD 3%, crest factor 3:1
- Battery configuration: external batteries (not included)
- Parallel capability: up to 6 units
- Cold start: Yes, ECO mode: Yes
- Noise level: 65 dB
- Protection: IP20 (optional IP30, IP40, IPX2 kits)
- Display: LCD
- Form factor: Tower
- Dimensions (W x H x D): 360 x 915 x 850 mm
- Weight: 140 kg
- Certification: EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Does the E3MUPS80KHS include batteries?
A: No. This model is configured for external batteries, which must be sourced separately. It is compatible with a range of battery options, including Galaxy Lithium-ion battery cabinets.

Q: What input and output does this UPS use?
A: It is a 3:3 model with 400V three-phase input and three-phase output, rated at 80kVA / 80000 W.

Q: Can multiple units be paralleled?
A: Yes. Up to six Easy UPS 3M units can be paralleled to increase capacity or provide redundancy.

Q: What does Start-up 5x8 mean?
A: The unit includes a 5x8 start-up service for commissioning the UPS system.

Q: What is the efficiency and topology?
A: It uses double-conversion (online) topology with efficiency of up to 94.9%, and also offers an ECO mode.

Q: What ingress protection does it offer?
A: IP20 as standard. Optional kits are available to provide IP30, IP40 and IPX2 protection.
