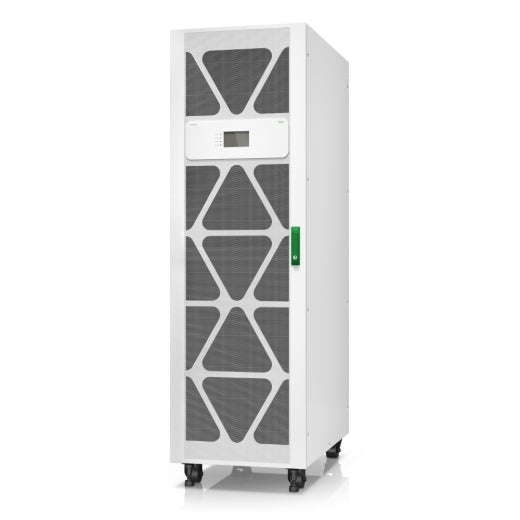

APC E3MUPS80KHBS | Easy UPS 3M 80kVA 400V 3:3 Online UPS, No Batteries, 5x8 Start-up

Authorised APC Partner

SKU:E3MUPS80KHBS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The APC Easy UPS 3M 80kVA 400V 3:3 online UPS delivers 80 kVA / 80 kW of double-conversion protection for small and medium data centres and business-critical loads. This variant ships without batteries, for use with internal VRLA batteries, and includes a 5x8 start-up service.

A built-in static bypass, wide input voltage window and touch screen LCD make it straightforward to commission and operate. It supports parallel configurations for added capacity or N+1 redundancy, and is EcoStruxure-ready for cloud-based remote monitoring, with front-access servicing and replaceable dust filters to simplify maintenance.

Features

- Double-conversion online topology with zero transfer time
- Easy to install, connect, use and service
- Wide input voltage window for unstable mains conditions
- Parallel capable for added capacity or N+1 redundancy
- EcoStruxure-ready cloud-based remote monitoring
- Front-access servicing and replaceable dust filters
- Emergency Power Off (EPO) switch included
- Built-in static bypass

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Output capacity: 80 kVA / 80 kW
- Nominal input and output voltage: 400V 3PH
- Topology: 3:3 double-conversion online with built-in static bypass
- Input connection: Hard wire 5-wire (3P + N + E)
- Maximum input current: 104 A
- Input voltage range: 342 - 477 V, frequency 40 - 70 Hz
- Other input and output voltages: 380 V, 415 V
- Output waveform: Sine wave, THD less than 3% linear load and less than 5% non-linear load
- Overload: 10 minutes at 125%, 60 seconds at 150%
- Input power factor at full load: 0.99
- Battery type: VRLA, 240 V nominal (batteries not included)
- Control panel: Touch screen LCD user interface
- Package includes dust filter, installation guide and 5x8 start-up service

FAQs

Q: Does this UPS include batteries?
A: No. This variant is supplied without batteries and is intended for use with internal VRLA batteries at a nominal 240 V.

Q: What does the 5x8 start-up service cover?
A: The 5x8 start-up service is included with this model to commission the UPS on installation.

Q: What input and output configuration does it use?
A: It is a 3:3 three-phase unit with 400V 3PH nominal input and output, connected via a hard wire 5-wire (3P + N + E) input.

Q: Can I run more than one unit in parallel?
A: Yes. The Easy UPS 3M supports parallel operation for added capacity or N+1 redundancy.

Q: What is the UPS topology?
A: It is a double-conversion online UPS with a built-in static bypass, providing zero transfer time to battery.

Q: Can it be monitored remotely?
A: Yes. It is EcoStruxure-ready for cloud-based remote monitoring, and local status is available on the touch screen LCD.
