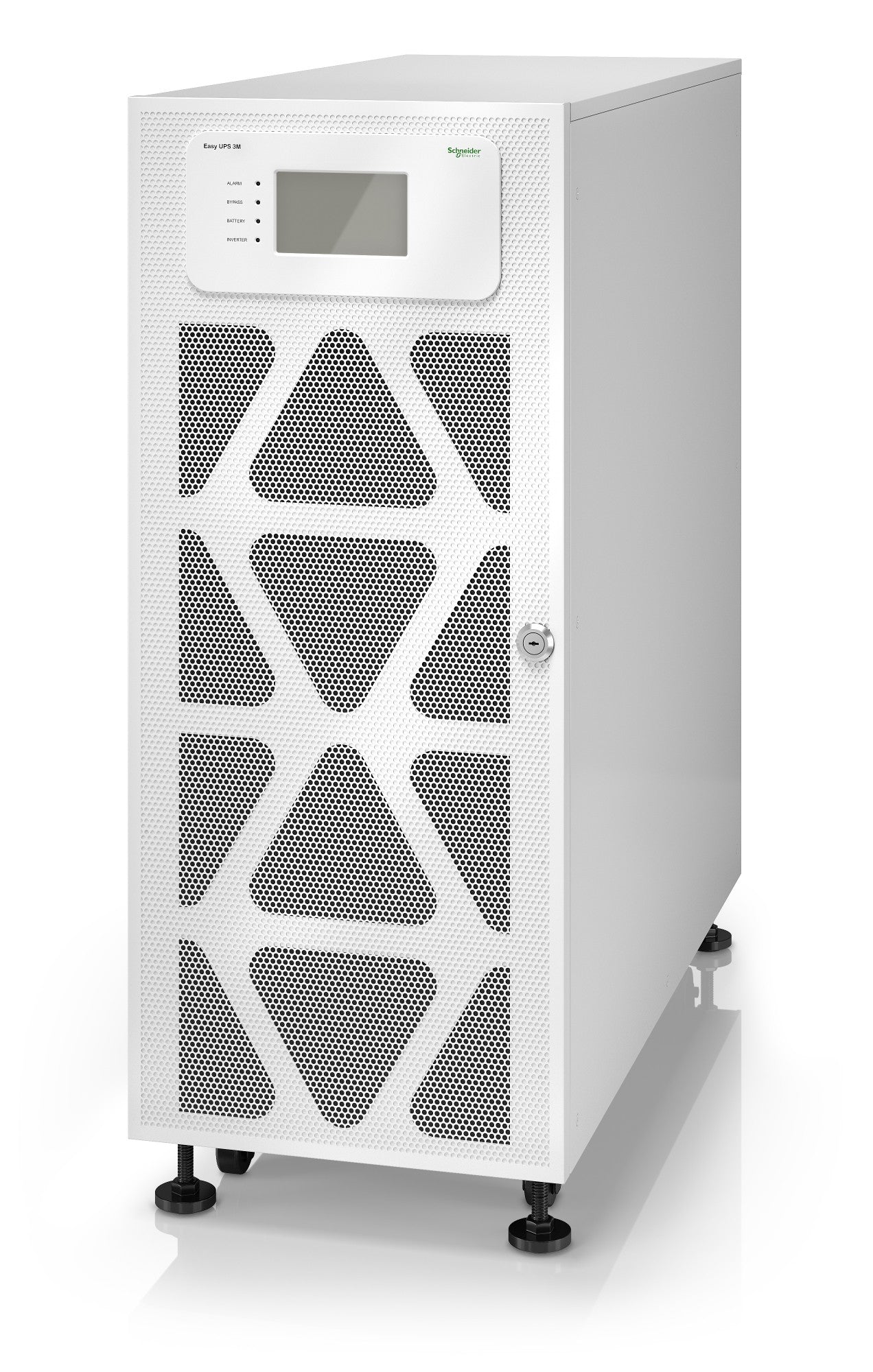

APC E3MUPS60KHS | Easy UPS 3M 60kVA 400V 3:3 Online Tower UPS, Ext. Batteries, 5x8 Start-up

Authorised APC Partner

SKU:E3MUPS60KHS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The APC Easy UPS 3M 60kVA 400V 3:3 is a three-phase, double-conversion online tower UPS rated at 60 kVA / 60 kW, built to run from an external battery system. It is supplied without batteries so the battery bank can be sized to the runtime you need, and this SKU includes a 5x8 start-up service. It suits small and medium data centres and other business-critical loads.

The Easy UPS 3M offers efficiency of up to 95.5% in double-conversion mode and up to 99% in ECO mode, with a built-in static bypass and selectable 380/400/415 V output. It is compatible with external VRLA or Galaxy lithium-ion battery cabinets and is EcoStruxure-ready, with cloud-based remote monitoring and management through a 5-inch touchscreen control panel and network management card connectivity.

Features

- Double-conversion online topology with built-in static bypass
- Supplied without batteries so the battery solution can be customised
- Compatible with external VRLA or Galaxy lithium-ion battery cabinets
- Selectable battery charging power of 1-20% of output power
- Efficiency up to 95.5% in double-conversion mode and up to 99% in ECO mode
- EcoStruxure-ready, with cloud-based remote monitoring and management
- 5-inch touchscreen LCD control panel
- Connectivity via RS485, dry contact and Ethernet with a network management card
- Optional IP30, IP40 and IPX2 ingress protection kits
- Cold start capability and Emergency Power Off (EPO)
- Includes 5x8 start-up service

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Output capacity: 60 kVA / 60 kW
- Topology: double-conversion online with built-in static bypass
- Input voltage: 400 V 3-phase (380/415 V selectable), limits 342-477 V
- Output voltage: 400 V 3-phase (380/415 V selectable)
- Output frequency: 50 Hz or 60 Hz, sync to mains
- Battery type: external battery system (batteries not included)
- Overload: 125% for 10 minutes, 150% for 60 seconds
- Input power factor at full load: 0.99
- Input harmonic distortion: less than 3% at full load
- Efficiency: up to 95.5% double-conversion, up to 99% ECO mode
- Connectivity: RS485, dry contact, Ethernet (SNMP, Modbus, TCP/IP, BACnet), USB
- Display: 5-inch touchscreen LCD
- Form factor: tower, IP20, colour white (RAL 9003)
- Dimensions (H x W x D): 91.5 x 36 x 85 cm
- Net weight: 109 kg
- Operating temperature: 0 to 40 C, humidity 0 to 95% non-condensing
- Noise level: 65 dB
- Includes: dust filter, installation guide, 5x8 start-up service

FAQs

Q: Does the Easy UPS 3M 60kVA include batteries?
A: No. It is supplied without batteries and is designed to run from an external battery system, so you can size the battery bank to the runtime you require.

Q: What batteries can be used with this UPS?
A: It is compatible with external VRLA battery cabinets or Galaxy lithium-ion battery cabinets. Battery charging power is selectable from 1-20% of output power.

Q: What input and output voltage does it use?
A: It is a 3:3 model with 400 V three-phase input and output. Both 380 V and 415 V are also selectable.

Q: What is the start-up service included with this SKU?
A: This SKU includes a 5x8 start-up service, so the UPS is commissioned as part of the package.

Q: How can the UPS be monitored remotely?
A: It supports RS485, dry contact and Ethernet connectivity (SNMP, Modbus, TCP/IP, BACnet) via a network management card, and is EcoStruxure-ready for cloud-based remote monitoring and management.

Q: What overload capacity does it provide?
A: It supports 125% load for 10 minutes and 150% load for 60 seconds, with a built-in static bypass for additional protection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
