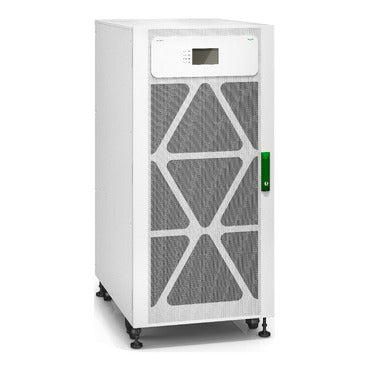

APC E3MUPS200KHS | Easy UPS 3M 200kVA Online UPS, 400V 3:3, External Batteries

Authorised APC Partner

SKU:E3MUPS200KHS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The APC Easy UPS 3M 200kVA three-phase online UPS delivers 200 kVA / 200 kW of double-conversion protection for data centres, server rooms and critical infrastructure. This 400V 3:3 model is supplied without batteries, so a battery solution can be selected separately, and it includes 5x8 start-up service. An input power factor of 0.99 and low input harmonic distortion keep the load on your upstream supply clean.

The Easy UPS 3M range supports parallel operation of up to 6 units for added capacity or redundancy, and is compatible with Galaxy Lithium-ion battery cabinets. The Easy Loop test verifies UPS performance before the load is connected, with no load bank needed. A touch-screen LCD provides local control, and the unit is EcoStruxure-ready for cloud-based remote monitoring and management.

Features

- Easy to install, connect, use and service
- Parallel up to 6 Easy UPS 3M units for capacity or redundancy
- Battery flexibility, including compatibility with Galaxy Lithium-ion battery cabinets
- Easy Loop test verifies UPS performance before connecting the load, with no load bank needed
- EcoStruxure-ready for cloud-based remote monitoring and management
- Includes 5x8 start-up service
- Compact footprint for its 200 kVA capacity
- Built-in static bypass and high overload capacity

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Rated power: 200 kVA / 200 kW
- Topology: Double-conversion online
- Input and output: 400 V AC 3-phase (380/415 V selectable)
- Input voltage range (main operation): 342 - 477 V
- Input frequency: 40 - 70 Hz
- Maximum input current: 336 A
- Input power factor at full load: 0.99
- Input harmonic distortion: less than 3% at full load
- Output waveform: Sine wave
- Output voltage THD: < 3% linear load, < 5% non-linear load
- Output voltage tolerance: +/- 1%
- Load crest factor: 3:1
- Overload capacity: 125% for 10 minutes, 150% for 60 seconds
- Bypass: Built-in static bypass
- Battery: External battery system, no batteries included
- Parallel capability: up to 6 units
- Interface: Touch-screen LCD, USB, E3MColdStart, E3Mparallel
- Protection class: IP20 (optional IP30, IP40, IPX2 kits)
- Dimensions (H x W x D): 1300 x 600 x 850 mm
- Net weight: 304 kg
- Operating temperature: 0 to 40 C
- Audible noise at 1 m: 72 dBA

FAQs

Q: Does the E3MUPS200KHS include batteries?
A: No. This model is designed for an external battery system and has no internal battery slots. Batteries or a compatible battery cabinet must be selected separately.

Q: Can I parallel multiple units?
A: Yes. Up to 6 Easy UPS 3M units can be paralleled to increase capacity or provide redundancy.

Q: What input and output voltage does this UPS use?
A: It operates on 400 V AC 3-phase for both input and output, with 380 V and 415 V also supported.

Q: Is start-up service included?
A: Yes. This SKU includes 5x8 start-up service.

Q: Can it be monitored remotely?
A: Yes. The Easy UPS 3M is EcoStruxure-ready, supporting cloud-based remote monitoring and management.

Q: Is it compatible with lithium-ion batteries?
A: Yes. It offers battery flexibility, including compatibility with Galaxy Lithium-ion battery cabinets.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
