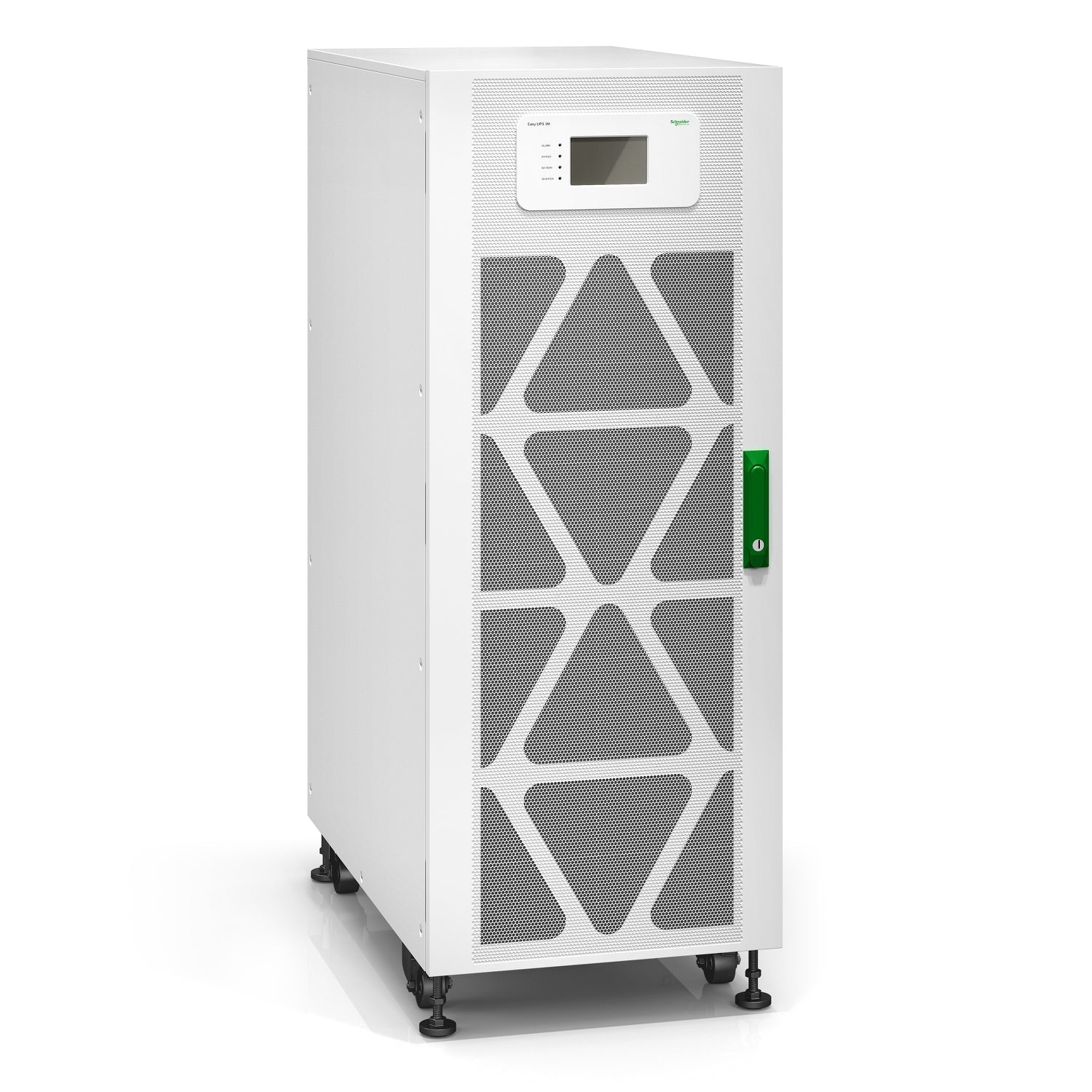

APC E3MUPS160KHS | Easy UPS 3M 160kVA 400V 3:3 Online UPS, External Batteries

Authorised APC Partner

SKU:E3MUPS160KHS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The APC Easy UPS 3M 160kVA 400V 3:3 online UPS delivers double conversion power protection for small and medium data centres and business-critical applications. Rated at 160 kVA / 160 kW with 400 V three-phase input and output, it runs from an external battery system and ships with 5x8 start-up service included.

The unit achieves an input power factor of 0.99 at full load with input THDi below 3%, and handles overloads of 125% for 10 minutes and 150% for 60 seconds. Up to six units can be paralleled for added capacity or redundancy, and the Easy Loop test verifies UPS performance before the load is connected, with no load bank required. It is EcoStruxure-ready for cloud-based remote monitoring and management, and supports battery flexibility including Galaxy Lithium-ion battery cabinets.

Features

- Easy to install, connect, use and service
- Parallel up to 6 Easy UPS 3M units for capacity or redundancy
- Battery flexibility, including compatibility with Galaxy Lithium-ion battery cabinets
- Easy Loop test verifies UPS performance before connecting the load, with no load bank required
- EcoStruxure-ready with cloud-based remote monitoring and management
- Compact design for small and medium data centres and business-critical applications
- High efficiency input with 0.99 power factor and low harmonic distortion

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 160 kVA / 160 kW rated power
- 400 V 3-phase input and output (380/415 V also supported)
- Double conversion online topology with sine wave output
- External battery system
- Input power factor 0.99 at full load
- Input THDi below 3% at full load
- Maximum input current 262 A
- Output voltage tolerance +/- 1%
- Output frequency 50 Hz or 60 Hz, sync to mains
- Output harmonic distortion below 3% linear load and below 5% non-linear load
- Overload: 10 minutes at 125%, 60 seconds at 150%
- Load power factor 0.5 leading to 0.5 lagging without derating
- Parallel up to 6 units
- Operating ambient temperature 0 to 40 C
- IP20 enclosure (optional IP30, IP40, IPX2 kits)
- Dimensions 130 cm H x 50 cm W x 85 cm D
- Net weight 227 kg
- Colour White (RAL 9003)
- USB compatible
- Standards: EN/IEC 62040-1, IEC 62040-2, IEC 62040-3
- Includes dust filter, installation guide and 5x8 start-up service

FAQs

Q: Does this UPS include batteries?
A: No. This model is designed to run from an external battery system, which is sourced separately. It is compatible with Galaxy Lithium-ion battery cabinets.

Q: Can multiple units be paralleled?
A: Yes. Up to 6 Easy UPS 3M units can be paralleled to increase capacity or provide redundancy.

Q: What input and output voltage does it support?
A: It is rated for 400 V three-phase input and output, and also supports 380 V and 415 V.

Q: What is the overload capability?
A: The UPS can run at 125% load for 10 minutes and at 150% load for 60 seconds.

Q: Is start-up service included?
A: Yes. 5x8 start-up service is included with this SKU.

Q: Can it be monitored remotely?
A: Yes. It is EcoStruxure-ready, enabling cloud-based remote monitoring and management.
