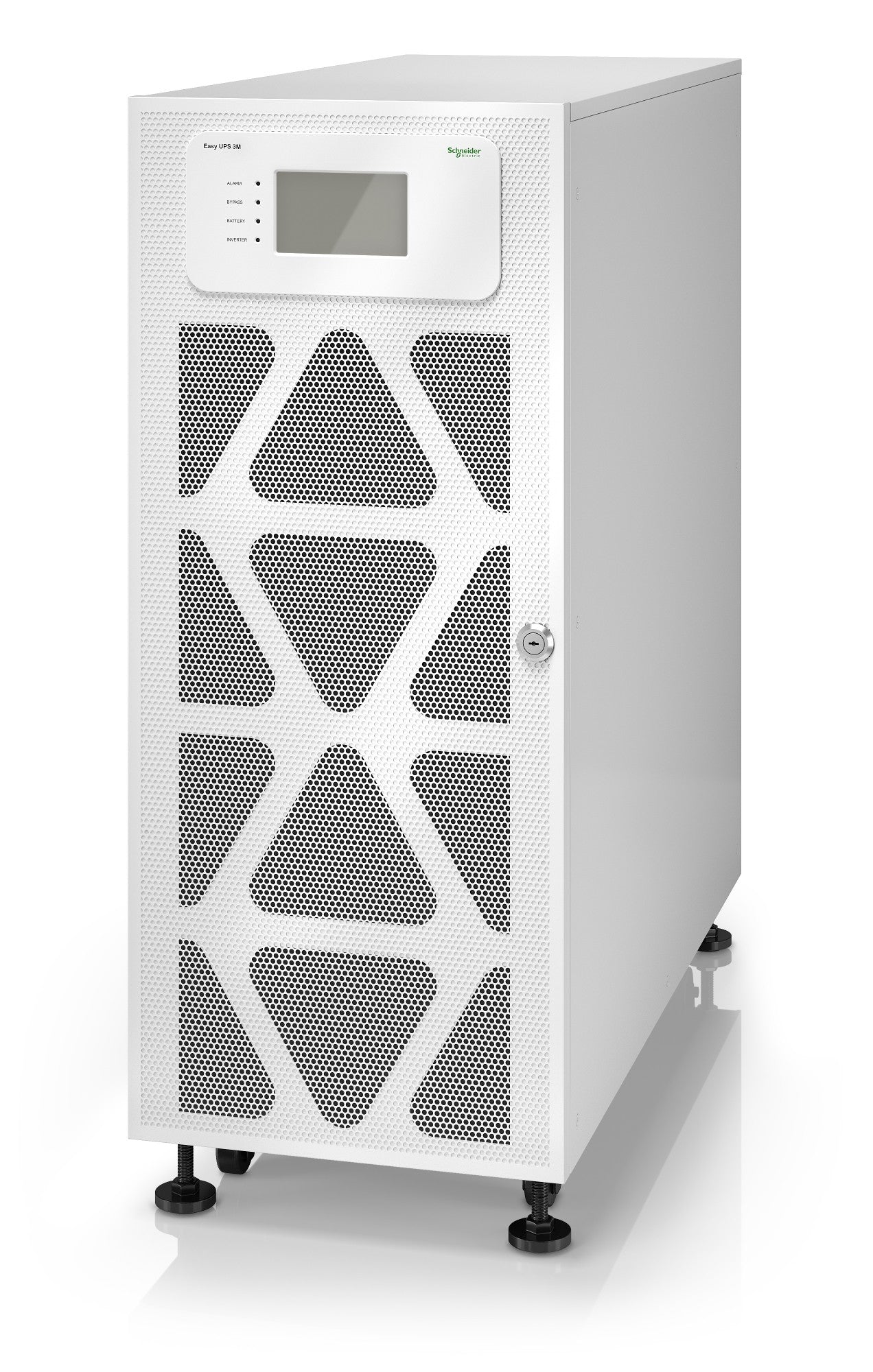

• White Schneider Electric s200-15k uninterruptible power supply with geometric front panel and digital display for APC Easy UPS 3M 100kVA
1 1

APC

APC E3MUPS100KHS | Easy UPS 3M 100kVA 400V 3:3 Online Tower UPS, 5x8 Start-Up

APC E3MUPS100KHS | Easy UPS 3M 100kVA 400V 3:3 Online Tower UPS, 5x8 Start-Up

Authorised APC Partner

E3MUPS100KHS

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Easy UPS 3M E3MUPS100KHS is a 100kVA / 100kW three-phase (3:3) double-conversion online tower UPS for 400V installations. It is supplied without batteries and is designed for external battery cabinets, so runtime can be sized to the application. A 5x8 start-up service is included.

Double-conversion online topology delivers a sine wave output to critical loads, with efficiency of up to 94.8% and an input power factor of 0.99. ECO mode is supported for higher efficiency, while an LCD display, LED indicators and an audible alarm provide clear status information for facilities and IT teams.

Features

- Double-conversion online protection for critical loads
- Three-phase 400V 3:3 configuration
- ECO mode for higher efficiency
- Sine wave output
- LCD display with LED status indicators
- External battery design, so runtime can be sized to the application
- 5x8 start-up service included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Output capacity: 100 kVA / 100000 W
- Topology: Double-conversion (Online)
- Configuration: 400V 3:3 (three-phase in, three-phase out)
- Input voltage range: 342 V to 477 V
- Input frequency: 40/70 Hz
- Output voltage range: 380 V to 415 V
- Output frequency: 50/60 Hz
- Maximum current: 177 A
- Waveform: Sine
- Efficiency: up to 94.8%
- Input power factor: 0.99
- Crest factor: 3:1
- Output voltage THD: 3%
- Noise level: 65 dB
- ECO mode: Yes
- Display: LCD with LED indicators and audible alarm
- Form factor: Tower, IP20
- Colour: White
- Batteries: External batteries required

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Does the E3MUPS100KHS include batteries?
A: No. This model is designed for external batteries, which are required for operation. Runtime depends on the external battery capacity you select.

Q: What input and output configuration does this UPS use?
A: It is a 400V 3:3 model, with three-phase input and three-phase output, and a 100 kVA / 100 kW output capacity.

Q: What UPS topology does the Easy UPS 3M 100kVA use?
A: It uses double-conversion (online) topology with a sine wave output, which isolates connected loads from mains disturbances.

Q: Is start-up service included?
A: Yes. This SKU includes 5x8 start-up service.

Q: Does it support ECO mode?
A: Yes. ECO mode is supported for higher efficiency, and overall efficiency is up to 94.8%.

Q: What is the form factor of this UPS?
A: It is a floor-standing tower UPS rated IP20, suited to indoor installation in a plant room or data room.
