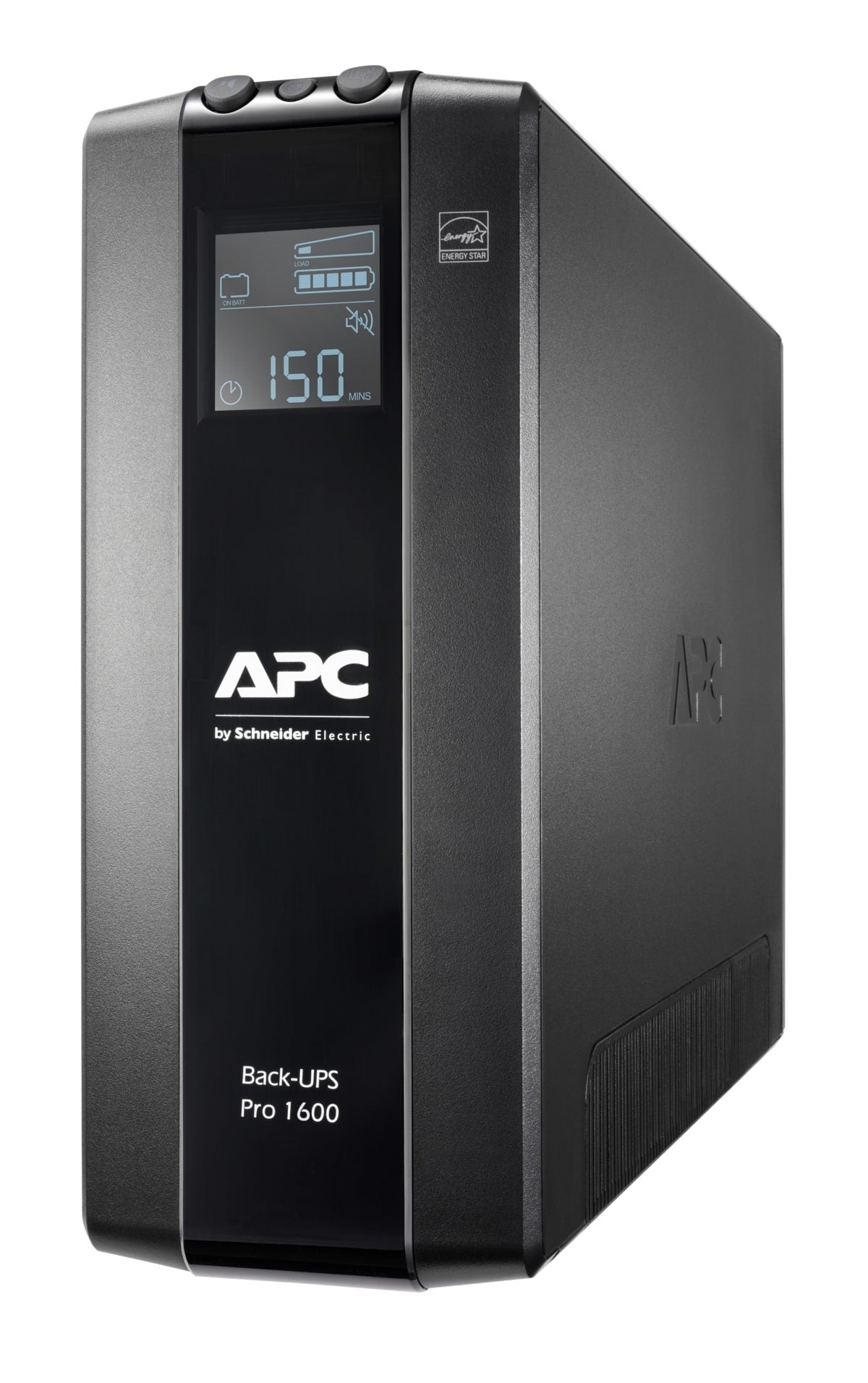

• APC BR1600MI 1600VA Back-UPS Pro with LCD voltage display
1 1

APC

APC BR1600MI | Back-UPS Pro Tower UPS, 1600VA/960W, 230V, 8x IEC C13

APC BR1600MI | Back-UPS Pro Tower UPS, 1600VA/960W, 230V, 8x IEC C13

Authorised APC Partner

BR1600MI

In stock:1

$766.59 inc. GST
$696.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Back-UPS Pro BR1600MI is a 1600VA/960W line-interactive tower UPS with 8x IEC C13 outlets on a 230V supply. It protects high-performance computers, routers, storage and other business electronics from power cuts, brownouts and surges, with Automatic Voltage Regulation correcting voltage fluctuations without drawing on the battery. A multifunction LCD console provides clear status monitoring and control.

Six outlets provide battery backup with surge protection and two provide surge-only protection, so critical and non-critical equipment can be separated. A USB connection enables graceful shutdown of connected equipment, RJ-45 Ethernet surge protection guards network lines, and the user-replaceable sealed lead-acid battery can be swapped with the APCRBC166 replacement cartridge to restore original performance.

Features

- Automatic Voltage Regulation (AVR) corrects brownouts and over-voltages without using the battery
- User-replaceable battery restores original performance with the APC replacement battery cartridge
- Battery backup and surge protection on 6 outlets, surge-only protection on 2 additional outlets
- Multifunction LCD for monitoring and control
- Graceful shutdown of connected equipment via USB connection
- Network and data line surge protection via RJ-45 Ethernet
- Full-time multi-pole noise filtering
- ECO mode and automatic battery test, with cold start capability

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 1600VA / 960W output capacity
- Line-interactive topology
- 230V nominal input and output, input voltage range 176-294V
- 50/60 Hz input (auto-sensing), output 50/60 Hz synchronised to mains
- 8x IEC C13 outlets (6 battery backup and surge protected, 2 surge only)
- Input connection: IEC 60320 C14, 10A maximum input current
- Surge energy rating: 509 Joules
- Sealed lead-acid (VRLA) battery, 24V nominal; replacement cartridge APCRBC166
- Recharge time: 16 hours
- Runtime: approx. 1 hr 8 min at 100W load
- Interfaces: 1x USB port, RJ-45 10/100/1000 Base-T Ethernet surge protection
- Multifunction LCD status and control console
- Dimensions (H x W x D): 100 x 250 x 382 mm
- Net weight: 10.9 kg
- Operating temperature: 0-40 °C
- Audible noise: 45 dBA

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How many outlets does the APC BR1600MI have and are they all battery backed?
A: It has 8x IEC C13 outlets. Six provide battery backup with surge protection and two provide surge-only protection.

Q: Can I replace the battery myself?
A: Yes. The battery is user-replaceable. The replacement cartridge is the APC APCRBC166.

Q: What does the AVR feature do?
A: Automatic Voltage Regulation corrects brownouts and over-voltages without switching to battery, which preserves battery life.

Q: Does the BR1600MI support graceful shutdown of connected computers?
A: Yes. The USB port connects to a host computer to enable graceful shutdown of connected equipment during an extended power outage.

Q: What is the input connection and supply voltage?
A: It uses an IEC 60320 C14 input on a 230V supply, with a maximum input current of 10A.

Q: Does this UPS protect network equipment lines?
A: Yes. It includes RJ-45 10/100/1000 Base-T Ethernet surge protection to protect network data lines.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.
