• APC BE550G-AZ 550VA UPS black surge protector with 8 European outlets
1 1

APC

APC BE550G-AZ | Back-UPS ES 550VA Desktop UPS, 330W, 8x AS 3112, Tower

APC BE550G-AZ | Back-UPS ES 550VA Desktop UPS, 330W, 8x AS 3112, Tower

Authorised APC Partner

BE550G-AZ

In stock:38

$192.28 inc. GST
$174.80 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

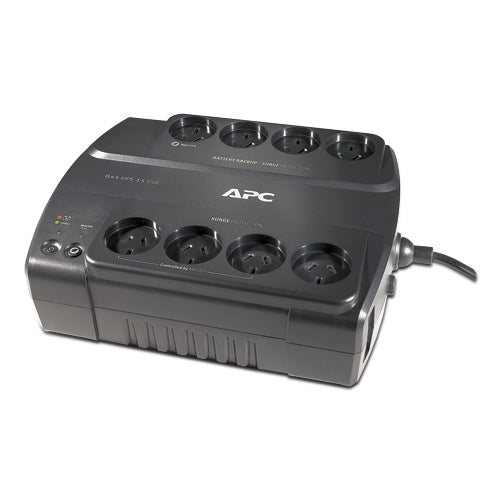

The Back-UPS ES 550VA is a standby desktop UPS rated 550VA/330W in a compact black tower form factor, built for PCs, modems and small office or home equipment. It provides eight Australian AS/NZS 3112 outlets, four with battery backup and surge protection and four surge-only, so critical devices stay powered during an outage while peripherals still get surge protection.

The power-saving design helps reduce energy consumption, while full-time multi-pole noise filtering and a 310 J surge energy rating protect connected equipment. A USB port with SmartConnect compatibility supports monitoring and automatic shutdown, and the user-replaceable lead-acid battery (APCRBC110) keeps maintenance simple. LED indicators show on line, on battery, replace battery and overload status.

Features

- Power-saving design reduces energy consumption
- Eight AS/NZS 3112 outlets with four battery-backed surge-protected outlets and four surge-only outlets
- SmartConnect and USB connectivity for monitoring and shutdown
- User-replaceable battery for simple maintenance
- Full-time multi-pole noise filtering and surge protection
- Compact desktop tower design
- LED indicators for on line, on battery, replace battery and overload

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rated power: 550VA / 330W
- UPS topology: Standby (offline)
- Input: 230V AC, 50/60 Hz, 10A maximum, AS/NZS 3112 plug with 1.8 m cable
- Output: 230V AC, 8 x AS/NZS 3112 outlets (4 battery backup + surge, 4 surge only)
- Waveform: Stepped approximation to a sinewave
- Transfer time: 6 ms typical, 10 ms maximum
- Battery: Internal lead-acid, user replaceable (APCRBC110), typical recharge time 16 h
- Connectivity: USB port, SmartConnect compatible
- Surge energy rating: 310 J
- Control panel: LED status display (on line, on battery, replace battery, overload)
- Form factor: Tower, not rack-mountable
- Dimensions (H x W x D): 88 x 180 x 302 mm
- Weight: 5.5 kg
- Acoustic level: 40 dBA
- Operating temperature: 0 to 40 C
- Certifications: A-Tick, C-Tick, CE, Telepermit

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How many outlets are battery backed on the BE550G-AZ?
A: Four of the eight AS/NZS 3112 outlets provide battery backup with surge protection. The other four are surge-only outlets, suited to printers and other peripherals that do not need battery runtime.

Q: What type of UPS topology is this model?
A: It is a standby (offline) UPS with a typical transfer time of 6 ms and a maximum of 10 ms, and a stepped approximation to a sinewave output. It suits PCs and small office or home equipment.

Q: Can I replace the battery myself?
A: Yes. The internal lead-acid battery is user replaceable. The replacement part is APCRBC110, and typical battery life is 3 to 5 years.

Q: Can this UPS be rack mounted?
A: No. The BE550G-AZ is a tower model intended for desktop or floor use and is not rack-mountable.

Q: How does it communicate with a computer for shutdown?
A: It has a USB port and is compatible with SmartConnect, allowing monitoring and automatic shutdown of a connected computer.

Q: What load can the UPS support?
A: It is rated for 550VA / 330W. Total connected load on the battery-backed outlets should stay within 330W.
