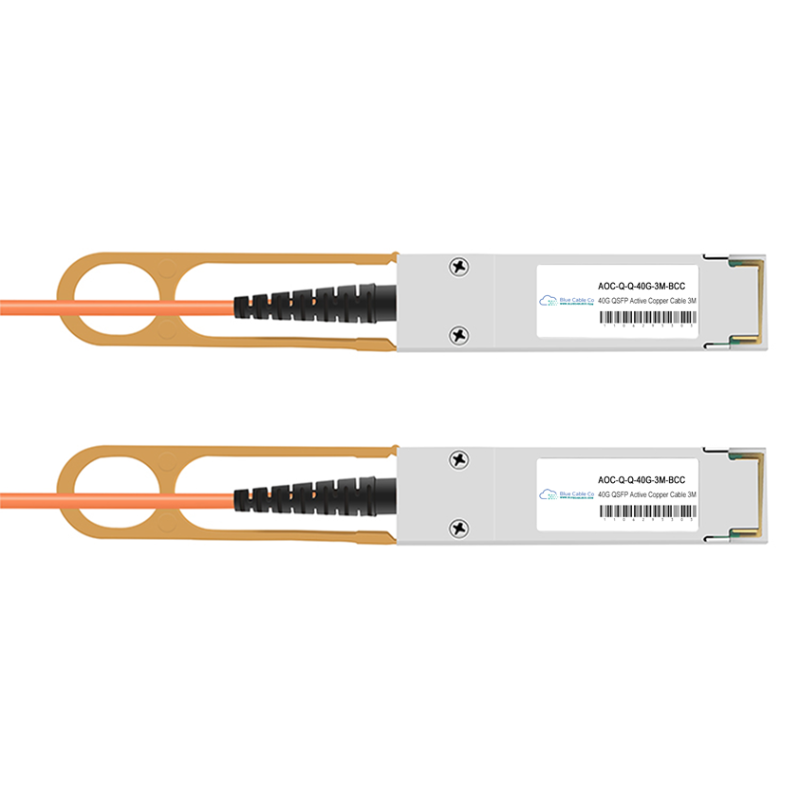

• Arista compatible 40G QSFP to QSFP AOC with orange cables and gold connectors
1 1

Blue Cable Co

AOC-Q-Q-40G-xM-BCC | Arista Compatible QSFP to QSFP Active Optical Cable, 40GB, 40GBASE-AOC | 3 to 30M

AOC-Q-Q-40G-xM-BCC | Arista Compatible QSFP to QSFP Active Optical Cable, 40GB, 40GBASE-AOC | 3 to 30M

AOC-Q-Q-40G-3M-BCC

Stock Status: Enquire

$218.90 AUD
$218.90 AUD
$218.90 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The AOC-Q-Q-40G-xM-BCC is a drop-in compatible replacement for the Arista AOC-Q-Q-40G series. Plug-and-play compatible with Arista switches and routers equipped with QSFP+ ports supporting 40GBASE-AOC. - Compliant with SFF-8436 QSFP+ MSA and 40GBASE-AOC standards, guaranteeing interoperability with IEEE 40GbE interfaces - QSFP+ form factor, 40Gbps data rate, 850nm wavelength, operates over multi-mode fibre - Active optical cable assembly with integrated transceivers at both ends for low power consumption and extended reach - Available in eight lengths from 3m to 30m to suit rack, row, and inter-rack topologies - Hot-pluggable design with duplex LC-style connectors for reliable fibre termination

Features

• SFF-8436 QSFP+ MSA compliance ensures mechanical and electrical compatibility with any standard QSFP+ cage and host interface supporting 40GbE
• Four independent 10.3Gbps lanes aggregated to 40Gbps using parallel 850nm VCSEL transmitters and PIN photodetector arrays for low-latency optical transport
• Active optical architecture eliminates the reach and EMI constraints of passive copper DAC cables while consuming under 1.5W per cable assembly
• Supports OM3 laser-optimised multi-mode fibre to 100m and OM4 to 150m, enabling flexible data centre spine-leaf and rack-to-rack deployments
• Hot-pluggable with AC-coupled differential high-speed data interface for hitless insertion and removal without disrupting adjacent ports
• Operating case temperature range of 0 to 70°C accommodates typical rack ambient conditions and high-density switch environments
• Eight length options from 3m to 30m allow precise cable path management and reduce slack in structured deployments

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: AOC-Q-Q-40G-xM-BCC
Compatible Replacement For: AOC-Q-Q-40G-3M
Compatibility: Arista compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP+ to QSFP+ AOC
Data Rate: 40Gbps (4 x 10.3Gbps lanes)
Wavelength: 850nm VCSEL array
Fibre Type: Multi-mode (OM3/OM4)
Max Reach: Up to 100m on OM3, 150m on OM4 (per 40GBASE-AOC standard, subject to fibre and link conditions)
Standards: IEEE 40GBASE-AOC, SFF-8436 QSFP+ MSA
Operating Temperature: 0 to 70°C
Power Consumption: <1.5W typical
Available Lengths: 3m, 5m, 7m, 10m, 15m, 20m, 25m, 30m

FAQs

Q: Will this work in place of the Arista AOC-Q-Q-40G-3M?
A: Yes. The AOC-Q-Q-40G-xM-BCC is a plug-and-play compatible replacement. It meets the SFF-8436 QSFP+ MSA standard and 40GBASE-AOC specification, providing the same form factor, 40Gbps data rate, and 850nm wavelength as the Arista original. It will initialise and function identically in any Arista switch or router with QSFP+ ports.

Q: Which Arista platforms support this cable?
A: This cable is compatible with any Arista switch or router equipped with QSFP+ ports that support 40GBASE-AOC interfaces. This includes the 7050, 7250, 7280, 7500, and 7300 series platforms. If your platform has a QSFP+ cage and runs EOS with 40GbE support, this cable will work.

Q: What is the maximum reach on OM3 and OM4 fibre?
A: The cable supports up to 100m on OM3 multi-mode fibre and up to 150m on OM4. These distances assume the fibre meets laser-optimised specifications and link loss remains within the 40GBASE-AOC optical budget. The 850nm VCSEL transmitters and parallel lane design are optimised for these fibre types.

Q: Can I use this cable in breakout mode to connect four 10G SFP+ ports?
A: No. This is a 40G QSFP+ to QSFP+ cable with integrated transceivers at both ends, not a breakout cable. It carries a single 40GbE link over four parallel optical lanes. For 40G to 4x10G connectivity, you need a QSFP+ to 4xSFP+ breakout AOC or a QSFP+ SR4 transceiver with an MPO-to-duplex LC breakout fibre.

Q: What is the power consumption and does the cable require external power?
A: The cable draws less than 1.5W per assembly, powered entirely by the 3.3V supply from the host QSFP+ ports at both ends. No external power is required. The integrated active electronics provide signal conditioning and drive the 850nm VCSELs, enabling the extended reach compared to passive copper DAC cables while maintaining low power.
