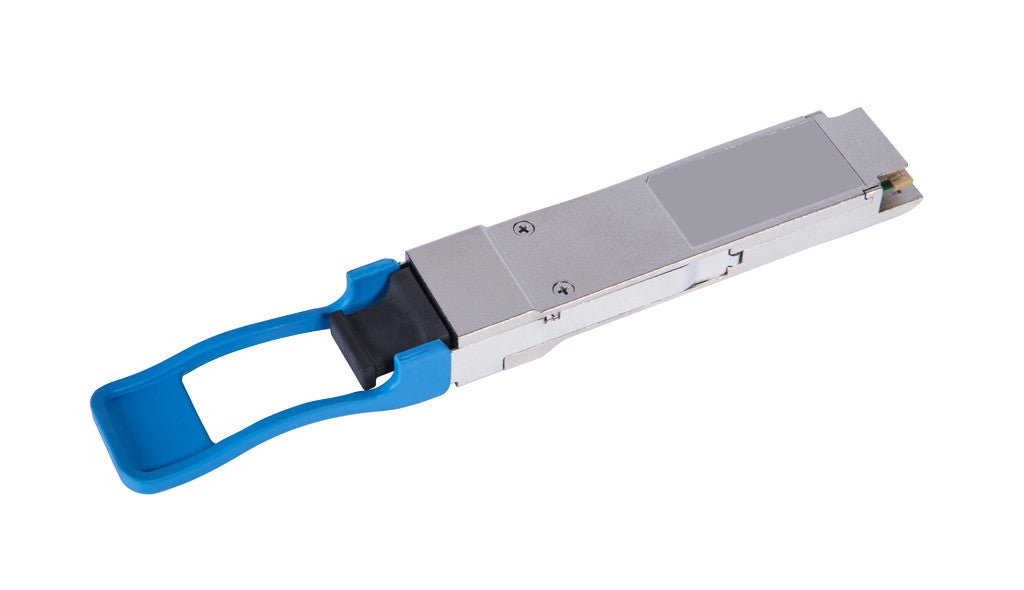

Aruba JL309A | X151 100G QSFP28 SR4 Transceiver, 100m, MPO-12, OM3/OM4

Name: Aruba JL309A | X151 100G QSFP28 SR4 Transceiver, 100m, MPO-12, OM3/OM4
Brand: Aruba
SKU: JL309A
Price: 3221.28 AUD
Availability: BackOrder

Authorised Aruba Partner

SKU:JL309A

Stock Status: Enquire

$3,221.28 inc. GST

$2,928.44 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Aruba X151 JL309A is a 100G QSFP28 SR4 transceiver for short-reach 100GbE links over multimode fibre. It runs 4 x 25G NRZ lanes at 850 nm through an MPO-12 connector, reaching 70 m on OM3 and 100 m on OM4 MMF, making it well suited to data centre and campus switch interconnects.

The module supports Digital Optical Monitoring for real-time diagnostics and can be optically split into 4 x 25G on supported Aruba CX switches to connect to 25G SR transceivers. It is supported across Aruba CX 6300, 6400, 8100, 8325, 8360, 8400, 9300, 9300S and 10000 series platforms, subject to the minimum AOS-CX software version for each platform.

Features

- 100GBASE-SR4 short-reach optics for data centre and campus 100GbE links
- Optical breakout to 4 x 25G (SFP28 SR) on supported Aruba CX switches
- Connects to 2 x JL309A from a 400G QSFP-DD MPO16 SR8 transceiver (R9B41A) via an MPO16 to 2 x MPO12 breakout cable
- Digital Optical Monitoring for real-time diagnostics
- Supported across Aruba CX 6300, 6400, 8100, 8325, 8360, 8400, 9300, 9300S and 10000 series

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Technical Specifications

- 100 Gbps QSFP28 form factor
- 100GBASE-SR4, 4 x 25G NRZ lanes
- 850 nm nominal wavelength
- MPO-12 (PC polished) connector, 8 fibres used
- Multimode fibre 50/125 µm (OM3/OM4)
- Reach 70 m on OM3, 100 m on OM4
- Modal bandwidth: 2000 MHzkm (OM3), 4700 MHzkm (OM4)
- Transmit power: -8.4 to +2.4 dBm
- Receive power: -10.3 to +2.4 dBm
- Digital Optical Monitoring (DOM) supported
- Power consumption 3.5 W
- Commercial temperature range 0 to 70 °C

Alternate Part Codes

R9F75A

FAQs

Q: What reach does the JL309A support?
A: It reaches 70 m over OM3 multimode fibre and 100 m over OM4 multimode fibre.

Q: What connector and fibre type does it use?
A: It uses a 12-fibre MPO connector with PC polish (8 fibres used) over 50/125 µm multimode fibre. APC-polished MPO connectors must not be used.

Q: Can the JL309A be used for 4 x 25G breakout?
A: Yes. The 100G SR4 optic can be optically split into 4 x 25G on supported switches, such as the Aruba 8325, 8360 and 9300 series, connecting to 25G SR transceivers.

Q: Which Aruba switches support this transceiver?
A: It is supported across Aruba CX 6300, 6400, 8100, 8325, 8360, 8400, 9300, 9300S and 10000 series, each requiring a minimum AOS-CX software version, for example 10.03.0030 on the 8325 and 10.12.1000 on the 8100.

Q: Does it support Digital Optical Monitoring?
A: Yes. DOM is supported, allowing real-time monitoring of optical parameters such as transmit and receive power.

Q: Can it link to a 400G SR8 transceiver?
A: Yes. Two JL309A modules can connect to a 400G QSFP-DD MPO16 SR8 transceiver (R9B41A) using an MPO16 to 2 x MPO12 breakout cable.
