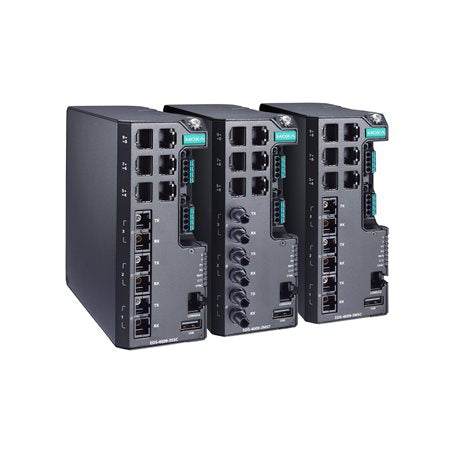

Moxa EDS-4009-3MSC-HV-T | EDS-4009 Managed Switch, 6x RJ45, 3x MM SC, HV, -40-75C

Authorised Moxa Partner

SKU:EDS-4009-3MSC-HV-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDS-4009 Layer 2 managed industrial Ethernet switch combines 6 x 10/100BaseT(X) RJ45 ports with 3 x 100BaseFX multi-mode SC fibre ports, giving a direct fibre run to nearby cabinets, substations and field equipment. This high-voltage variant takes a single 110/220 VAC/VDC power input through the pre-installed PWR-105-HV-I module and operates across a wide -40 to 75°C temperature range.

Built in an IP40 metal housing for DIN-rail mounting, it supports EtherNet/IP, Modbus TCP and PROFINET IO Device protocols, network redundancy with Turbo Ring v2, Turbo Chain, MRP, RSTP and MSTP, and hardware-based IEEE 1588v2 PTP. IEC 62443-4-2 Security Level 2 cybersecurity and rail, traffic control and power substation certifications make it suited to demanding industrial automation and utility networks.

Features

- Industrial-grade Layer 2 managed switch with IEC 62443-4-2 Security Level 2 cybersecurity
- Supports EtherNet/IP, Modbus TCP and PROFINET IO Device industrial protocols
- Network redundancy with Turbo Ring v2, Turbo Chain, MRP, RSTP and MSTP
- Hardware-based IEEE 1588v2 PTP with power profiles (IEC 61850-9-3-2016, IEEE C37.238-2017)
- Modular power supply design; this model ships with the PWR-105-HV-I high-voltage module
- Wide -40 to 75°C operating temperature range
- Rail, traffic control and power substation certifications (EN 50121-4, NEMA TS2, IEC 61850-3, IEEE 1613)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x 10/100BaseT(X) RJ45 ports, auto negotiation, auto MDI/MDI-X
- 3 x 100BaseFX multi-mode SC ports
- Single power input, 110/220 VDC/VAC (88 to 300 VDC, 85 to 264 VAC)
- Pre-installed PWR-105-HV-I power module
- Power consumption: 12.14 W maximum
- MAC table size: 16 K, packet buffer: 1 MB
- Up to 256 VLANs (VID 1 to 4094), 512 IGMP groups, 4 priority queues
- Jumbo frame size: 9.216 KB
- Alarm relay output: 1 channel, 1 A @ 24 VDC, plus 1 digital input
- RS-232 console port (8-pin RJ45)
- Operating temperature: -40 to 75°C
- IP40 metal housing, DIN-rail mounting (wall mounting with optional kit)
- Dimensions: 55 x 140 x 120 mm, weight 821.5 g
- Certifications: IEC 62443-4-2 SL2, EN 50121-4, NEMA TS2, IEC 61850-3, IEEE 1613 Class 1
- MTBF: 482,263 hrs

FAQs

Q: What power input does the EDS-4009-3MSC-HV-T accept?
A: It has a single high-voltage input accepting 110/220 VDC or VAC (88 to 300 VDC, 85 to 264 VAC) through the pre-installed PWR-105-HV-I power module.

Q: What fibre type do the SC ports support?
A: The 3 SC ports are 100BaseFX multi-mode, so use multi-mode fibre and matching 100BaseFX equipment at the far end.

Q: Which industrial protocols are supported?
A: EtherNet/IP, Modbus TCP and PROFINET IO Device are supported for integration with common industrial automation systems.

Q: Which redundancy protocols can I use?
A: It supports Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, MRP, STP, RSTP and MSTP, plus link aggregation.

Q: What temperature range does it operate in?
A: This -T model operates from -40 to 75°C, with storage from -40 to 85°C and 5 to 95% non-condensing humidity.

Q: How is it mounted?
A: It mounts on a DIN rail, and wall mounting is possible with an optional kit. The housing is metal with an IP40 rating.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
