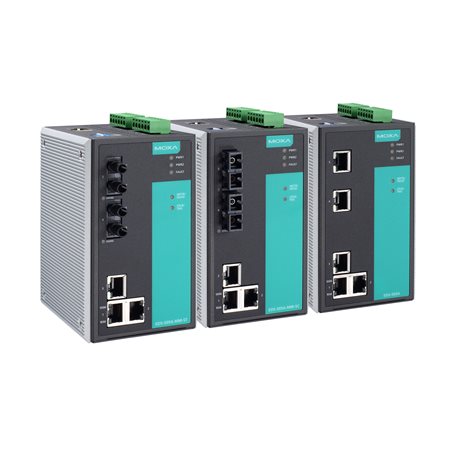

Moxa EDS-505A-MM-SC | EDS-505A Managed Switch, 3x RJ45, 2x Multi-Mode SC

Authorised Moxa Partner

SKU:EDS-505A-MM-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDS-505A-MM-SC is a 5-port Layer 2 managed industrial Ethernet switch with 3 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode ports with SC connectors. Built for harsh industrial environments, it supports Turbo Ring and Turbo Chain redundancy with recovery times under 20 ms, making it well suited to factory automation, utilities and transport networks that need resilient fibre uplinks.

This standard temperature variant operates from -10 to 60°C and runs from redundant dual 9.6 to 60 VDC power inputs. The metal IP30 housing mounts on a DIN rail, and the switch supports EtherNet/IP, Modbus TCP and PROFINET alongside IEEE 802.1X, HTTPS, SNMPv3 and SSH security for secure remote management.

Features

- Turbo Ring and Turbo Chain technology with recovery time under 20 ms
- RSTP/STP/MSTP support
- Port trunking for bandwidth utilisation
- RMON for network monitoring
- IGMP snooping and GMRP for multicast filtering
- Lock port function based on MAC address
- EtherNet/IP, Modbus TCP and PROFINET support
- IEEE 802.1X, HTTPS, SNMPv3 and SSH security
- Config backup via ABC-01

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 3 x 10/100BaseT(X) ports (RJ45)
- 2 x 100BaseFX multi-mode ports (SC connector)
- Typical multi-mode fibre distance: 4 km
- 2 x alarm contact channels (relay output, 1 A @ 24 VDC)
- 2 x digital input channels
- Operating voltage: 9.6 to 60 VDC (redundant dual power inputs)
- Input current: 0.29 A @ 24 VDC
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Metal housing, IP30
- Dimensions: 80.2 x 135 x 105 mm
- Weight: 1040 g
- DIN-rail mounting (wall mounting with optional kit)
- Hazardous-location approval: ATEX Class I Division 2

FAQs

Q: What fibre connectors and mode does the EDS-505A-MM-SC use?
A: It has 2 x 100BaseFX multi-mode ports with SC connectors, alongside 3 x 10/100BaseT(X) RJ45 copper ports.

Q: What is the operating temperature range of this model?
A: This is the standard temperature variant, rated for -10 to 60°C. It is not the wide temperature version.

Q: Does it support ring redundancy?
A: Yes. It supports Turbo Ring and Turbo Chain with recovery times under 20 ms, as well as RSTP/STP/MSTP.

Q: Which industrial protocols does it support?
A: The switch supports EtherNet/IP, Modbus TCP and PROFINET, making it suitable for common industrial automation networks.

Q: How is the switch powered and mounted?
A: It has redundant dual power inputs accepting 9.6 to 60 VDC. It mounts on a DIN rail, with wall mounting available using an optional kit.

Q: Can the switch configuration be backed up?
A: Yes. Configuration backup and restore is supported using the ABC-01 backup configurator.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
