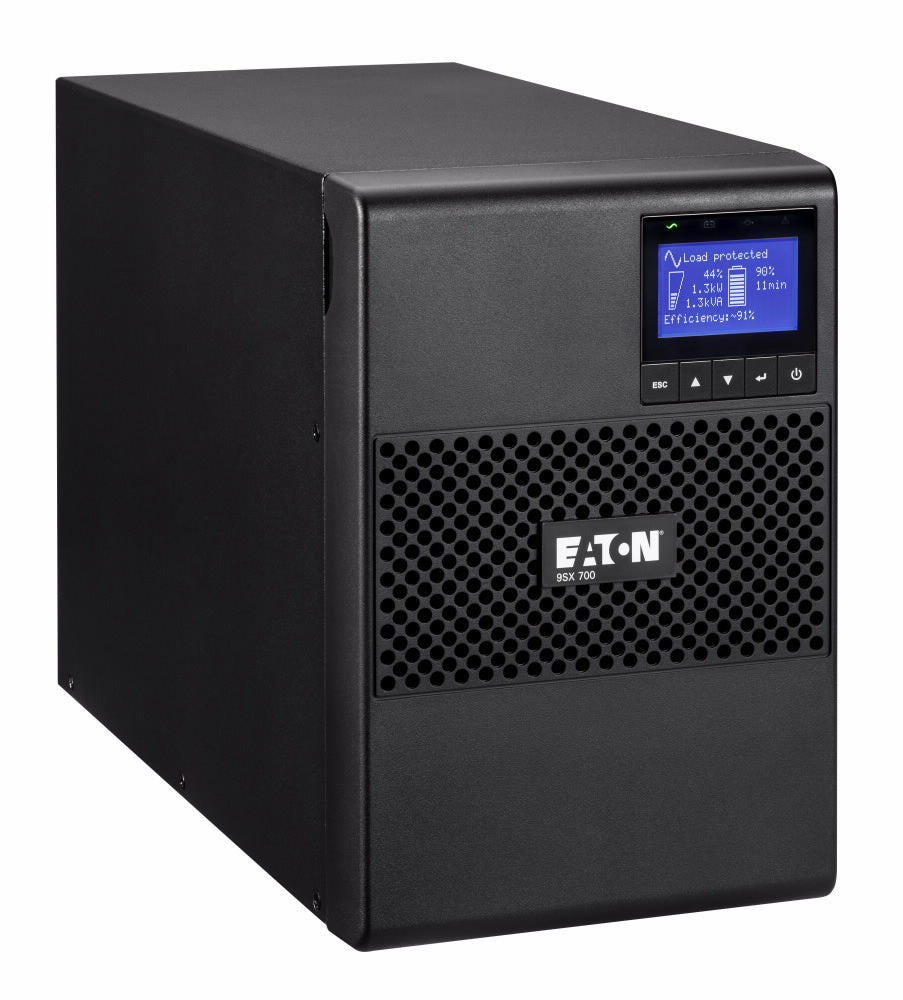

• Eaton 9SX700 UPS black tower 700VA with blue display perforated panel
1 1

Eaton

Eaton 9SX700 | 9SX Online Tower UPS, 700VA/630W, 120V, 6x 5-15R

Eaton 9SX700 | 9SX Online Tower UPS, 700VA/630W, 120V, 6x 5-15R

Authorised Eaton Partner

9SX700

Stock Status: Enquire

$2,686.78 inc. GST
$2,442.53 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton 9SX700 is an online double-conversion tower UPS rated at 700VA/630W, designed for 120V environments with a NEMA 5-15P input and 6x NEMA 5-15R outlets. Pure sine wave output and zero transfer time protect medical, light industrial, small network and desktop equipment from power disturbances.

A field-replaceable, hot-swappable internal battery, internal bypass and a graphical LCD status display make the 9SX700 straightforward to maintain. DB9 serial and USB communications are built in, and the network card slot accepts optional NETWORK-M3, INDGW-M2 or RELAY-MS cards for remote monitoring and control.

Features

- Zero transfer time between on-line and battery modes
- Pure sine wave output
- Surge and noise protection
- Field-replaceable, hot-swappable internal battery
- Eaton ABM three-stage battery charging to extend battery life
- Graphical LCD status display
- Internal bypass for service continuity
- Optional NETWORK-M3 card for remote access and control
- Extended runtime capability

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- 700VA / 630W (0.9 power factor)
- On-line double-conversion topology
- Nominal input voltage: 120V AC
- Input: NEMA 5-15P, 8 ft cord
- Outputs: 6x NEMA 5-15R (4 outlets in 2 switched load banks)
- Communications: DB9 serial, USB (HID), network card slot
- Compatible cards: NETWORK-M3, INDGW-M2, RELAY-MS
- Operating temperature: 0 to 40°C (32 to 104°F)
- Relative humidity: 0-96% non-condensing
- AC mode efficiency at 100% load: 89.84%
- Heat dissipation online at full load: 321 BTU/hr
- Certifications: UL Listed, cUL Listed, ICC-ES AC156 OSHPD Seismic, ENERGY STAR qualified
- Compliance: CE, FCC, REACH, RoHS
- Format: Tower

FAQs

Q: What input voltage does the Eaton 9SX700 support?
A: The 9SX700 is a 120V unit with a NEMA 5-15P input plug on an 8 ft cord. It is intended for 120V supply and is not a 240V model.

Q: How many outlets does it provide and what type?
A: It provides 6x NEMA 5-15R outlets, with 4 of them arranged in 2 switched load banks.

Q: Can I add remote network monitoring?
A: Yes. The network card slot accepts the optional NETWORK-M3 card for SNMP and web-based remote access and control. INDGW-M2 and RELAY-MS cards are also compatible.

Q: Is the battery user-replaceable?
A: Yes. The internal battery is field-replaceable and hot-swappable, so it can be changed without shutting down connected equipment.

Q: What type of UPS topology is used?
A: It is an on-line double-conversion design with pure sine wave output and zero transfer time, giving continuous conditioned power to connected loads.

Q: Does it support extended runtime?
A: Yes, the 9SX700 supports extended runtime capability for applications that need longer battery backup.
