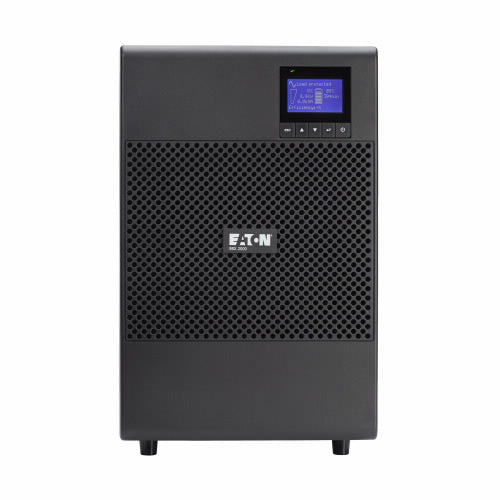

• Eaton 9SX2000 UPS tower with perforated front panel and digital display
1 1

Eaton

Eaton 9SX2000 | 9SX Online Tower UPS, 2000VA/1800W, 120V, 6x 5-20R + L5-20R

Eaton 9SX2000 | 9SX Online Tower UPS, 2000VA/1800W, 120V, 6x 5-20R + L5-20R

Authorised Eaton Partner

9SX2000

Stock Status: Enquire

$5,947.13 inc. GST
$5,406.48 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton 9SX 2000VA/1800W online double-conversion tower UPS delivers true sine wave 120V power for servers, network equipment and other critical loads. Zero transfer time between mains and battery operation keeps equipment running without interruption, and the 120V model provides 6 x NEMA 5-20R outlets plus 1 x L5-20R, with a 5-20P input and 8 ft cord.

The 9SX is built for resilience and manageability. Hot-swappable internal batteries, ABM three-stage charging, and extended battery module support let you scale runtime, while load banks allow non-critical loads to be shed to extend runtime for critical equipment. A Mini-Slot accepts optional network and Modbus cards for remote monitoring, alongside onboard USB and RS-232 communication.

Features

- Zero transfer time between on-line and battery modes for uninterrupted operation
- True sine wave output filtered against surges and line noise
- Individually controllable load banks to shed non-critical loads and extend runtime for critical loads
- ABM three-stage battery charging extends battery life and gives advance replacement warning
- Hot-swappable internal batteries and extended battery modules for longer runtime
- Optional Mini-Slot network, Modbus and relay cards for remote management
- Seismic certified to ICC-ES AC156 OSHPD

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- 2000VA / 1800W, output power factor 0.9
- On-line double-conversion topology with true sine wave output
- Nominal output voltage 120V (selectable 100/110/120/125V), 50/60 Hz
- Outlets: 6 x NEMA 5-20R, 1 x L5-20R
- Input: NEMA 5-20P, 120 VAC, 8 ft cord, input power factor above 0.99
- Internal battery: 96VDC 9Ah 864Wh, VRLA, replacement cartridge EBP-0206
- Runtime: 10.3 minutes at full load (1800W), 26.2 minutes at half load (900W)
- Communication: 1 x Mini-Slot, 1 x USB, 1 x RS-232, RPO/ROO terminal, output relay mini-terminal block
- Dimensions: 16.2 in depth x 8.4 in width x 13.6 in height, weight 77.2 lb
- Certifications: cULus Listed, FCC, CE, ICC-ES AC156 OSHPD seismic

FAQs

Q: What voltage is the Eaton 9SX2000?
A: The 9SX2000 is a 120V model with a NEMA 5-20P input and a nominal 120V output, selectable to 100, 110, 120 or 125V. It is not a 240V unit.

Q: What outlets does the 9SX2000 provide?
A: It has 6 x NEMA 5-20R outlets and 1 x L5-20R outlet, arranged in individually controllable load banks.

Q: Can I extend the runtime of the 9SX2000?
A: Yes. The UPS supports hot-swappable extended battery modules (EBMs). Internal runtime is 10.3 minutes at full load (1800W) and 26.2 minutes at half load (900W).

Q: Can the 9SX2000 be managed over a network?
A: It has a Mini-Slot that accepts an optional NETWORK-M3 Gigabit Web/SNMP card or an INDGW-M2 Modbus card. It also includes USB and RS-232 ports for local communication.

Q: Is this a double-conversion UPS?
A: Yes. The 9SX uses on-line double-conversion topology with true sine wave output and zero transfer time to battery.

Q: Can the batteries be replaced without shutting down the load?
A: Yes. The internal batteries are hot-swappable, and the replacement cartridge is part number EBP-0206.
