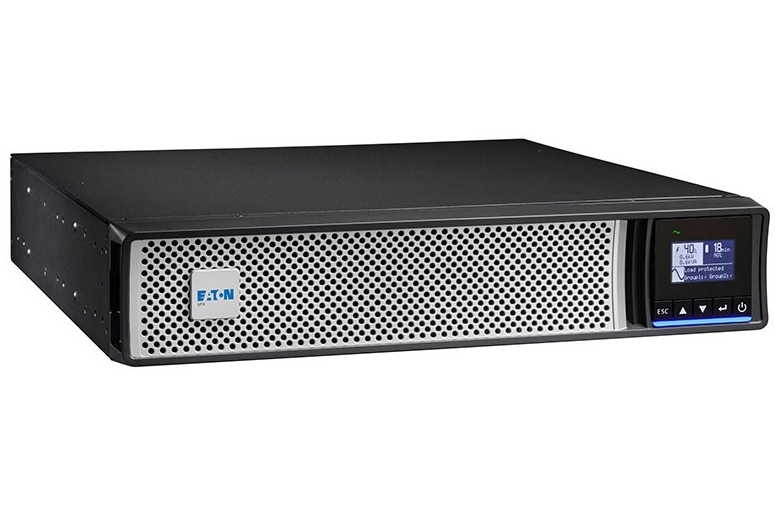

• Eaton 5PX1500IRT2UAUG2 5PX Gen 2 1500VA UPS with perforated silver front panel
  • Eaton 5PX Gen2 SPX battery run times chart for 5PX2200IRT2UAUG2 UPS
1 2

Eaton

Eaton 5PX1500IRT2UAUG2 | 5PX Gen2 1500VA/1500W Rack/Tower UPS, 2U, 230V

Eaton 5PX1500IRT2UAUG2 | 5PX Gen2 1500VA/1500W Rack/Tower UPS, 2U, 230V

Authorised Eaton Partner

5PX1500IRT2UAUG2

In stock:39

$2,203.57 inc. GST
$2,003.25 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton 5PX Gen2 1500VA/1500W 2U Rack/Tower UPS is a line-interactive, pure sine wave UPS for enterprise network, server and edge IT equipment. This Australian 230V variant delivers unity power factor, so the full 1500W is available to connected loads, and supports both rack and tower installation in a compact 2U chassis.

It provides 8 x IEC C13 outlets (including 2 groups of 2 remotely controlled outlets) fed from an IEC C14 input, with an advanced LCD display and a step-by-step commissioning wizard for fast setup. USB and RS-232 ports plus a network card slot enable remote monitoring and management, and external battery modules can be added to extend runtime.

Features

- Unity power factor delivers the full 1500W to connected loads
- Pure sine wave output suited to sensitive servers and network equipment
- Advanced LCD control display for status and configuration
- Step-by-step commissioning wizard for quick deployment
- Remote firmware update via M2 card, including mass upgrades without dropping the load
- ABM temperature-compensated battery charging extends battery life
- Expandable runtime with external battery modules (EBM)
- Network-M2 card slot for remote management and monitoring
- Flexible rack or tower installation in a 2U form factor

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Replacement Battery Finder

Technical Specifications

- Rating: 1500VA / 1500W
- Technology: Line-interactive high frequency, pure sine wave output
- Form factor: Rack/Tower 2U
- Output voltage: 230V (+6/-10%), adjustable to 200/208/220/230/240V
- Output frequency: 50/60Hz auto-sensing
- Input connection: 1 x IEC C14 (10A)
- Output connections: 8 x IEC C13 (10A)
- Remote controlled sockets: 2 groups of 2 x IEC C13
- Typical backup time: 44 min @ 300W
- Communication ports: 1 x USB, 1 x RS-232 serial, remote ON/OFF, remote power OFF and output relay terminal blocks
- Expansion: 1 slot for Network-M2, INDGW-M2 or RELAY-MS cards
- Operating temperature: 0 to 40 C
- Noise level: below 40 dB at typical load
- Dimensions (W x D x H): 438 x 448 x 85.5 mm
- Weight: 22.4 kg
- Certifications: CE, CB, cTUVus, EAC, UKCA, RCM

FAQs

Q: Can the 5PX1500IRT2UAUG2 be installed in a rack and as a tower?
A: Yes. It is a 2U rack/tower UPS, so it can be mounted in a standard rack or stood upright as a tower unit.

Q: What outlets and input does this model have?
A: It has one IEC C14 10A input and 8 x IEC C13 10A outlets, including 2 groups of 2 outlets that can be remotely controlled.

Q: Can I add remote network management?
A: Yes. The UPS has one expansion slot that accepts Network-M2, INDGW-M2 or RELAY-MS cards for remote monitoring and management.

Q: Can runtime be extended?
A: Yes. Runtime can be extended by connecting external battery modules (EBM), and the UPS automatically recognises attached external batteries.

Q: What is the typical backup time?
A: Typical backup time is 44 minutes at a 300W load. Actual runtime depends on the connected load.

Q: What is the difference between Gen2 and the original 5PX?
A: The Gen2 offers unity power factor (the original was 0.9), a new advanced LCD display, a commissioning wizard and at least 25% more standard runtime on 1.5 and 2 kVA models.
