Ubiquiti

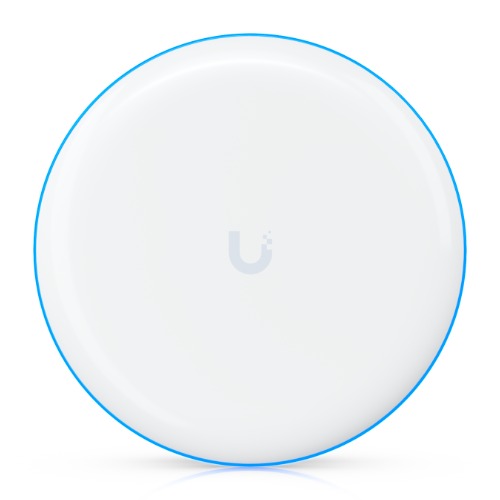

Ubiquiti UBB-XG-Single | UniFi Building Bridge XG 60GHz PtP Bridge, 6Gbps, 10G SFP+, Single Pack

Ubiquiti UBB-XG-Single | UniFi Building Bridge XG 60GHz PtP Bridge, 6Gbps, 10G SFP+, Single Pack

UBB-XG-Single

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The UniFi Building Bridge XG (UBB-XG) is a 60 GHz wireless point-to-point bridge designed for maximum-throughput outdoor links, delivering up to 6 Gbps over distances exceeding 500 metres. A 10G SFP+ uplink connects directly into your fibre-capable UniFi infrastructure, while the integrated 5 GHz (802.11ac) backup radio provides automatic failover redundancy — ensuring link continuity even when the primary 60 GHz path is obstructed. Built to IPX6 weatherproofing standards and rated from -40 to 55°C, it suits demanding outdoor deployments across campuses, industrial sites, and multi-building facilities.

This Single Pack includes one UBB-XG unit and one PoE power adapter, making it the ideal choice for a replacement unit, spare, or extending an existing deployment. The unit is fully managed through the UniFi ecosystem via UniFi Console, Official UniFi Hosting, or a self-hosted UniFi Network Server. Calibration LEDs simplify precise field alignment during installation. Need it fast? iptrading.com.au delivers across Australia — shop now.

Features

- 60 GHz primary radio (802.11ad/ay) delivers up to 6 Gbps throughput for maximum link performance
- 10G SFP+ uplink port enables direct high-speed fibre integration into existing infrastructure
- Integrated 5 GHz (802.11ac) backup radio provides automatic failover redundancy
- Supports point-to-point links at ranges exceeding 500 metres
- Calibration LEDs for precise field alignment during outdoor installation
- IPX6 weatherproofing rated for harsh outdoor environments
- Wide operating temperature range: -40 to 55°C — suitable for extreme climates
- PoE++ powered — compatible with UniFi PoE++ switches or the included power adapter
- WPA2 AES wireless security enabled at all times
- Fully managed within the UniFi ecosystem — Console, cloud-hosted, or self-hosted
- Single Pack ideal for replacement units or expanding an existing UBB-XG deployment

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Primary Radio: 60 GHz (802.11ad/ay), max data rate 6 Gbps
- Backup Radio: 5 GHz (802.11ac/Wi-Fi 5), max data rate 866.6 Mbps (BW80)
- Operating Frequency (60 GHz): 57–66 GHz (region dependent)
- Channel Bandwidth: 2,160 / 4,320 MHz (channel bonding enabled)
- Antenna Gain: 60 GHz – 21 dBi | 5 GHz – 14 dBi | 2.4 GHz (BLE) – 2 dBi
- Max TX Power: 60 GHz – 16 dBm | 5 GHz – 23 dBm
- MIMO: 2x2 DL MU-MIMO (5 GHz), 2 spatial streams
- Uplink: 1x 1/10G SFP+
- Power Method: PoE++ / Passive PoE (48VDC ±10%)
- Max Power Consumption: 31.2W
- Maximum Range: 500+ m (1,640+ ft)
- Wireless Security: WPA2 AES (Always On)
- Operating Mode: Point-to-Point (PtP)
- VLAN: Management VLAN only
- Weatherproofing: IPX6
- Operating Temperature: -40 to 55°C (-40 to 131°F)
- Operating Humidity: 5–95% non-condensing
- Dimensions: ⌀191.8 x 59 mm (⌀7.6 x 2.3")
- Mounting: Wall, Pole
- Certifications: FCC, IC, CE, Terragraph
- Package Contents: 1x UBB-XG unit, 1x PoE power adapter

FAQs

Q: What is the maximum range of the UBB-XG?
A: The UniFi Building Bridge XG supports point-to-point links of 500+ metres (1,640+ ft), making it suitable for inter-building connectivity across campuses and large facilities.

Q: What is the difference between the Single Pack (UBB-XG-Single) and the two-pack variant?
A: The Single Pack includes one UBB-XG unit and one PoE power adapter. It is ideal for replacing a unit in an existing deployment or as a spare. The two-pack variant includes two units that are pre-paired out of the box for a faster initial setup of a new link.

Q: Does the UBB-XG require a dedicated UniFi controller to operate?
A: Yes, the UBB-XG is managed through the UniFi ecosystem. It can be managed via a UniFi Console (e.g. UniFi Dream Machine), Official UniFi Hosting (cloud), or a self-hosted UniFi Network Server application.

Q: What happens if the 60 GHz primary link is interrupted?
A: The integrated 5 GHz (802.11ac/Wi-Fi 5) backup radio automatically provides failover connectivity, maintaining the link at up to 866.6 Mbps until the primary 60 GHz path is restored.

Q: What PoE standard is required to power the UBB-XG?
A: The UBB-XG requires PoE++ (802.3bt) or Passive PoE at 48VDC (±10%), with a maximum draw of 31.2W. The included PoE power adapter in this Single Pack provides the necessary power without requiring a PoE++ switch.

Q: Can I purchase the UBB-XG-Single in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an authorised Australian B2B IT hardware reseller stocking the UBB-XG-Single with delivery available across Australia. Contact the team for pricing, availability, or bulk order enquiries.
