Ubiquiti

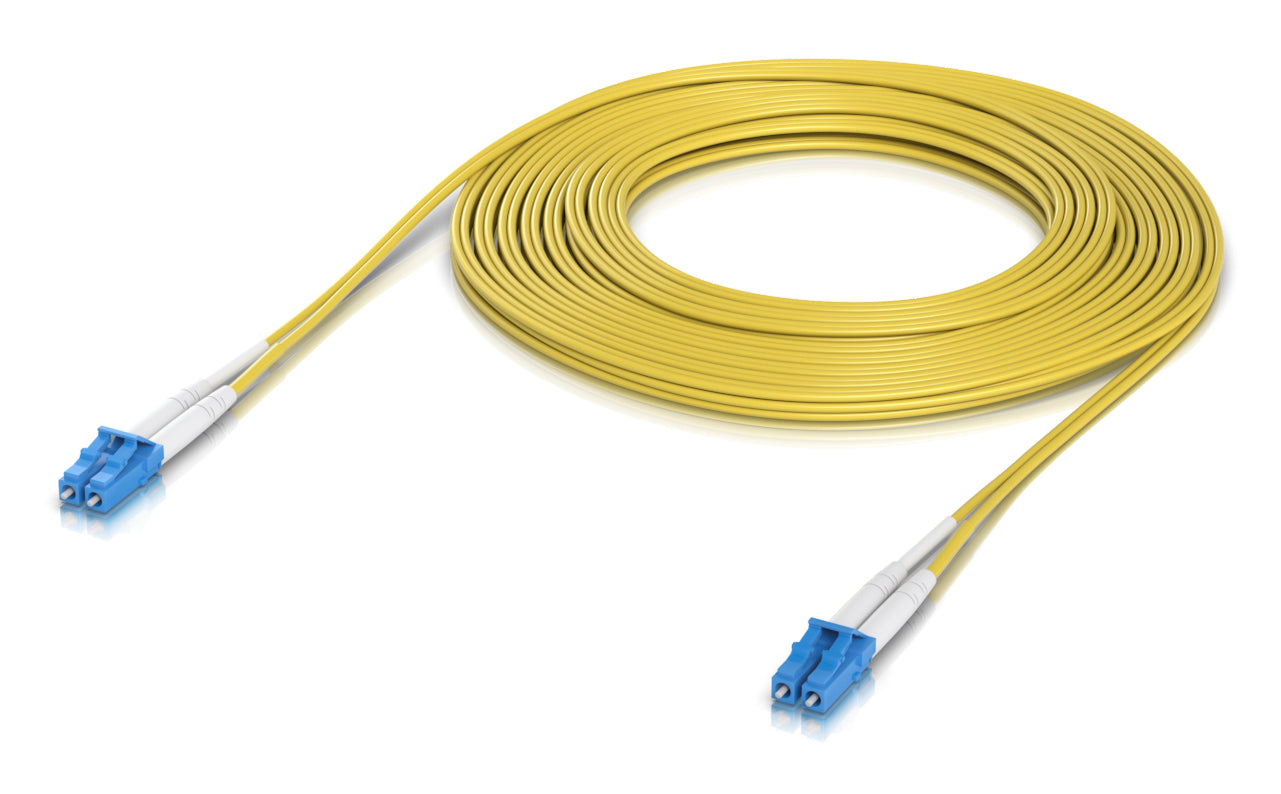

Ubiquiti UACC-OFC-S2-LULU-10M | UniFi OS2 Duplex LC/UPC Fibre Patch Cable, 10m, Yellow

Ubiquiti UACC-OFC-S2-LULU-10M | UniFi OS2 Duplex LC/UPC Fibre Patch Cable, 10m, Yellow

Authorised Ubiquiti Partner

SKU:UACC-OFC-S2-LULU-10M

$40.04 inc. GST
$36.40 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 42

Description

This UniFi OS2 single-mode fibre patch cable terminates in duplex LC/UPC connectors at both ends and measures 10 m. The yellow LSZH jacket makes it suitable for indoor runs between switches, optical transceivers and patch panels, and it supports connections up to 100G.

The lightweight 2 mm jacket is easy to route in dense rack environments, with insertion loss of 0.3 dB or less and return loss of 50 dB or better for clean, low-loss links. It forms part of the UniFi fibre patch cable range, which spans lengths from 0.5 m to 30 m.

Features

- OS2 single-mode fibre for long-reach, high-bandwidth links
- Duplex LC UPC connectors on both ends
- Lightweight patch cable supporting up to 100G connections
- Low smoke zero halogen (LSZH) jacket for indoor deployments
- Low insertion loss and high return loss for reliable signal quality
- Available in lengths from 0.5 m to 30 m across the family

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- OS2 single-mode fibre
- Connectors: Duplex LC UPC to Duplex LC UPC
- Length: 10 m (32.8 ft)
- Jacket: yellow low smoke zero halogen (LSZH), 2 mm (0.08 in) diameter
- Wavelength: 1310/1550 nm
- Insertion loss: 0.3 dB or less
- Return loss: 50 dB or greater
- Repeatability: 0.1 dB or less
- Durability: 0.2 dB or less after 1,000 matings
- Operating environment: indoor
- Ambient operating temperature: -40 to 75 °C (-40 to 167 °F)
- Supports connections up to 100G

FAQs

Q: What fibre type is this patch cable?
A: It is OS2 single-mode fibre, intended for use with single-mode optics at 1310/1550 nm.

Q: What connectors does it use?
A: Both ends are terminated with duplex LC UPC connectors.

Q: What speeds does this cable support?
A: It is designed for connections up to 100G.

Q: Is it suitable for outdoor use?
A: No. It is intended for indoor use and has a yellow LSZH jacket.

Q: How long is this cable and what other lengths are available?
A: This SKU is 10 m (32.8 ft). The UniFi family also offers 0.5, 1, 3, 5, 15 and 30 m lengths.

Q: Can I use it with multimode transceivers?
A: No. As an OS2 single-mode cable it should be paired with single-mode optics, not multimode transceivers.
