Ubiquiti UACC-DAC-QSFP28-1M | 100G QSFP28 Direct Attach Cable, DAC, 1m, Single Unit

Ubiquiti UACC-DAC-QSFP28-1M | 100G QSFP28 Direct Attach Cable, DAC, 1m, Single Unit

Authorised Ubiquiti Partner

UACC-DAC-QSFP28-1M

In stock:10

$95.67 inc. GST
$86.97 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

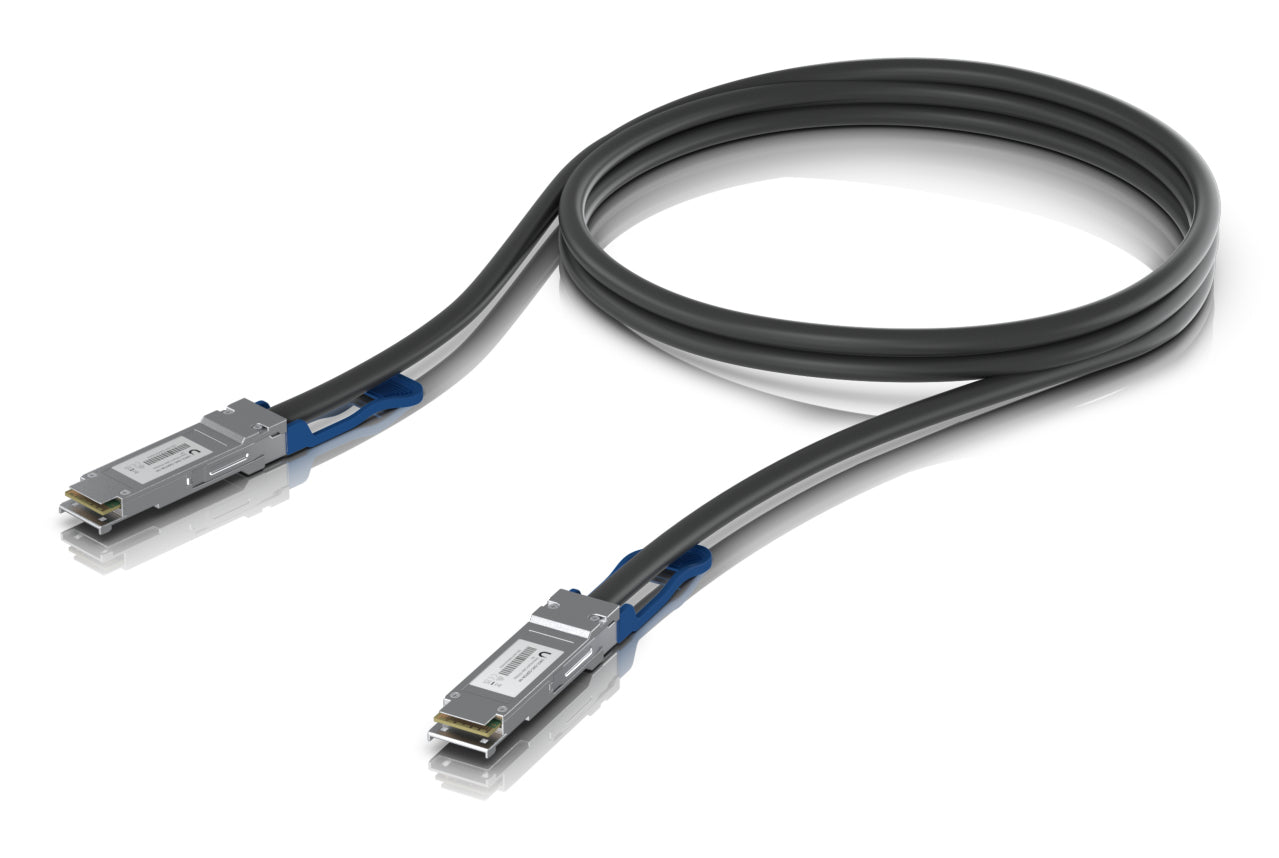

The Ubiquiti UACC-DAC-QSFP28-1M is a 100G QSFP28 direct attach cable (DAC) in a 1 m length, supplied as a single unit. This passive copper cable delivers a maximum data rate of 100 Gbps between QSFP28 ports, making it a cost-effective choice for short-reach switch-to-switch and switch-to-server links within a rack or adjacent racks.

The cable is also compatible with QSFP+ interfaces, so it can be used in 40G links where required. It features a black PVC jacket with a 7.0 mm outer diameter, and is designed for ambient operating temperatures from 0 to 70°C. The same family is also available in 0.5 m and 3 m lengths.

Features

- 100 Gbps maximum data rate over QSFP28
- Backward compatible with 40G QSFP+ interfaces
- Passive copper construction for short-reach links
- Supplied as a single 1 m unit
- Black PVC jacket with 7.0 mm outer diameter

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Cable length: 1 m (3.3 ft)
- Supported data rates: 100 / 40 Gbps
- Connector type: QSFP28 to QSFP28
- Compatible with QSFP28 and QSFP+ interfaces
- Wire: Copper
- Jacket colour: Black
- Jacket material: PVC
- Jacket outer diameter: 7.0 mm (0.28 in)
- Minimum bend radius: 37 mm (1.46 in)
- Ambient operating temperature: 0 to 70°C (32 to 158°F)

FAQs

Q: What data rate does the UACC-DAC-QSFP28-1M support?
A: It supports a maximum data rate of 100 Gbps over QSFP28 and 40 Gbps when connected to QSFP+ interfaces.

Q: Is this DAC cable compatible with QSFP+ ports?
A: Yes. It is compatible with both QSFP28 and QSFP+ interfaces, allowing use in 40G links.

Q: What length is this cable and is it sold as a single unit?
A: This SKU is the 1 m (3.3 ft) length, supplied as a single unit.

Q: What type of cable construction does it use?
A: It is a passive copper direct attach cable with QSFP28 connectors on both ends and a black PVC jacket.

Q: What is the minimum bend radius?
A: The minimum bend radius for the 1 m cable is 37 mm (1.46 in).

Q: What other lengths are available in this cable family?
A: The family is also available in 0.5 m and 3 m lengths.
