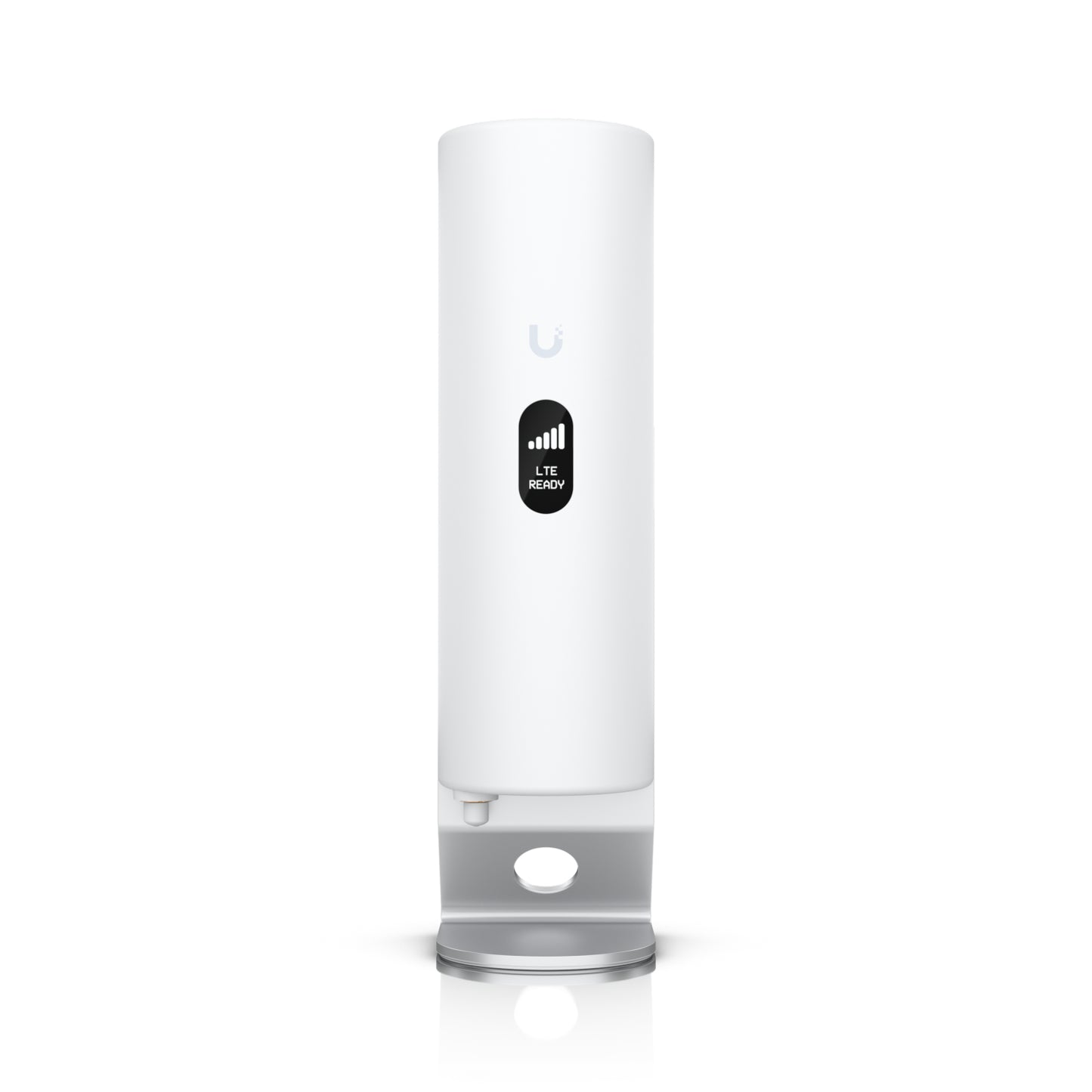

Ubiquiti U-LTE-BACKUP-PRO | UniFi LTE Backup Pro 4G Failover Gateway, BYO nano-SIM, PoE+

Authorised Ubiquiti Partner

SKU:U-LTE-BACKUP-PRO

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Ubiquiti U-LTE-BACKUP-PRO UniFi LTE Backup Pro is a PoE+ powered 4G LTE Category 4 failover gateway that keeps your network online when the primary WAN drops. This global (non-US) model takes your own nano-SIM for data-only LTE connectivity with 2x2 MIMO and speeds up to 150 Mbps down and 50 Mbps up, and supports LTE bands 1, 3, 7, 8, 20 and 28.

It pairs with UniFi gateways and Cloud Gateways to provide automatic internet failover, and is powered directly over 802.3at PoE+ so no separate power supply is needed. Two GbE RJ45 ports provide PoE in and PoE passthrough out (passthrough requires a PoE+ switch), a 1.54" status display shows connection state at a glance, and an RP-SMA connector allows an optional external antenna for better signal. A wall mount and foot stand are included for flexible placement.

Features

- Seamless internet failover for UniFi gateways and Cloud Gateways
- Bring your own nano-SIM for LTE data
- Powered over PoE, no separate power supply needed
- PoE passthrough output (requires PoE+ switch)
- RP-SMA connector for optional external antenna
- 1.54" status display
- Flexible wall-mount or foot-stand mounting

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- LTE Category 4, 2x2 MIMO, up to 150 Mbps down / 50 Mbps up
- Bring-your-own nano-SIM (data-only)
- LTE bands 1, 3, 7, 8, 20, 28 (global/non-US model)
- (2) GbE RJ45 ports (PoE+ in, PoE passthrough out)
- Powered via 802.3at PoE+ (44-57V DC), max 8.5W excluding passthrough
- PoE passthrough up to 15.4W per port (requires PoE+ switch)
- 1.54" LCM status display
- RP-SMA connector for optional external antenna
- 74 Kc MIPS processor at 775 MHz, 128 MB DDR2
- Dimensions: 66 x 202 x 32 mm, weight 223 g (336 g with stand)
- Operating temperature: -10 to 60 C, humidity 5 to 95% noncondensing
- Wall mount or foot stand included
- CE certified

FAQs

Q: Does the UniFi LTE Backup Pro include a SIM card?
A: No. It is a bring-your-own SIM device and takes a data-only nano-SIM from your chosen carrier.

Q: How is the U-LTE-BACKUP-PRO powered?
A: It is powered over 802.3at PoE+ (44-57V DC) from a UniFi PoE switch or a 48V, 0.5A PoE adapter, with maximum consumption of 8.5W excluding passthrough.

Q: What LTE speeds and bands does this model support?
A: It is an LTE Category 4 device with 2x2 MIMO, delivering up to 150 Mbps down and 50 Mbps up depending on location and network performance. This global model supports bands 1, 3, 7, 8, 20 and 28.

Q: Can I connect an external antenna?
A: Yes. The unit has an RP-SMA connector for an optional external antenna to improve signal in weak coverage areas.

Q: Does it support PoE passthrough?
A: Yes. One RJ45 port acts as PoE in and the second provides PoE passthrough output of up to 15.4W, which requires a PoE+ switch.

Q: What software version is needed to manage it?
A: It is managed through the UniFi Network application, version 6.5.55 or later.
