Ubiquiti EAV-Aggregation | UniFi EAV Fiber 20-Port 10G SFP+ Managed Switch, 2x 100G QSFP28, SMPTE ST 2110

Authorised Ubiquiti Partner

SKU:EAV-Aggregation

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

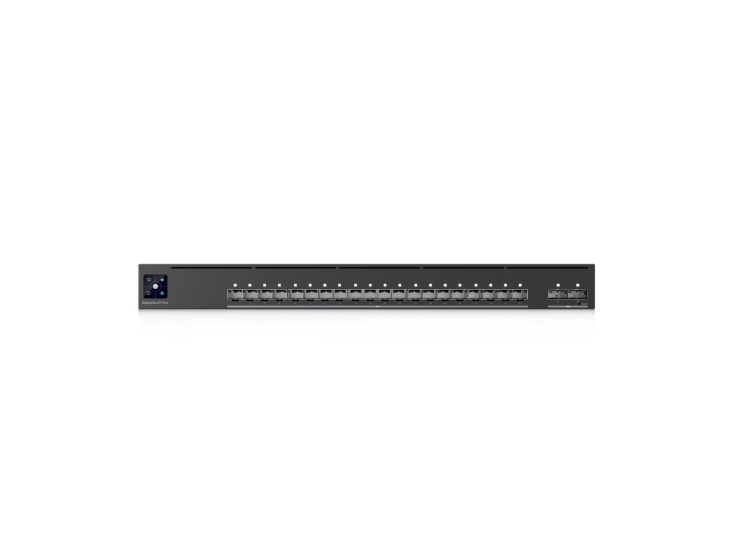

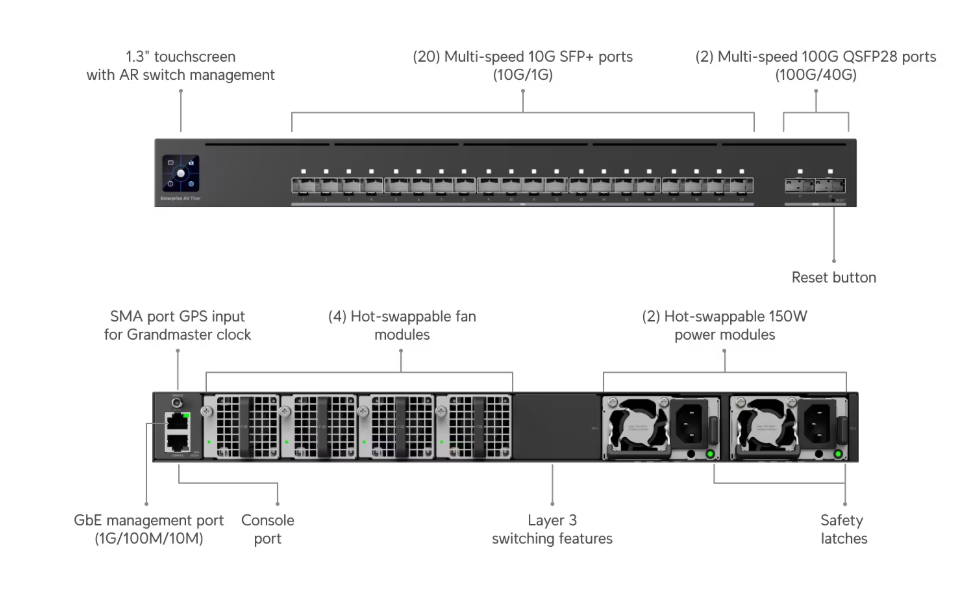

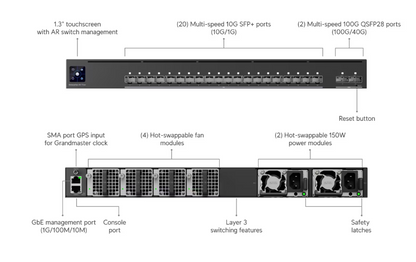

The UniFi Enterprise Audio/Video Fiber Switch is a purpose-built 10G managed switch designed for large-scale AV-over-IP deployments in broadcast, live production, and enterprise media environments. Featuring 20 x 10G SFP+ ports and 2 x 100G QSFP28 uplinks with 800 Gb/s switching capacity, it delivers the deterministic, low-latency performance required by SMPTE ST 2110, SDVoE, and AES67 audio-over-IP standards. A high-precision OCXO clock with optional GPS grandmaster input via SMA connector ensures accurate PTP timing across the entire media network.

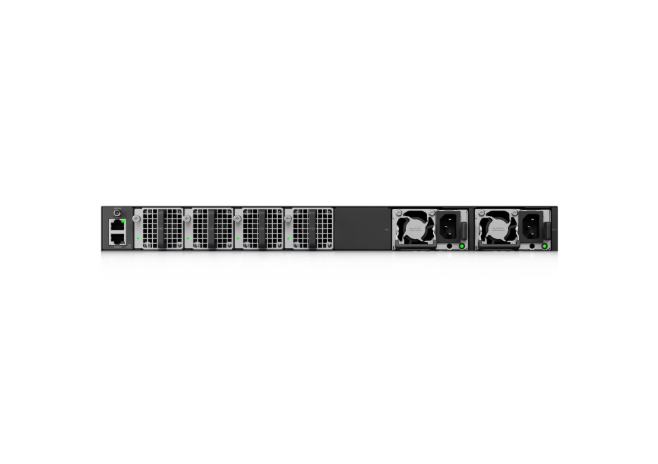

Built for mission-critical environments, the EAV-Fiber features dual hot-swappable 150W power modules and hot-swappable fan modules for maximum uptime. A 1.3" touchscreen enables local monitoring and configuration, while Etherlighting™ makes port identification effortless in darkened production suites. Managed seamlessly via the UniFi Network application, this switch integrates into existing UniFi infrastructure with no additional licensing fees.

Features

- PTP (Precision Time Protocol) support for deterministic media timing across AV-over-IP networks
- SMPTE ST 2110 compliance for professional uncompressed media transport over IP
- SDVoE (Software Defined Video over Ethernet) support for high-bandwidth video workflows
- AES67 audio-over-IP support for interoperable professional audio routing
- High-precision OCXO clock for stable, jitter-free synchronisation
- Optional GPS grandmaster input via SMA connector for facility-wide PTP reference

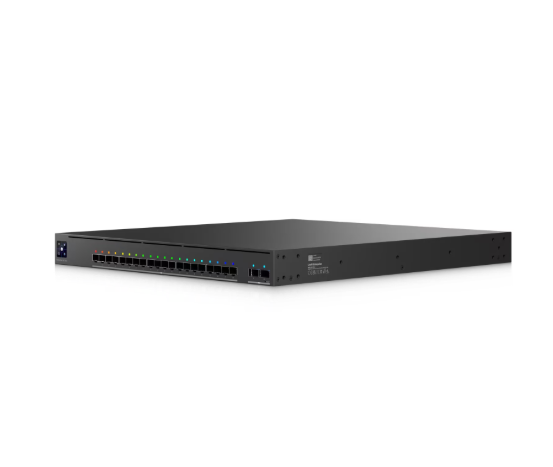

- Etherlighting™ for intuitive port identification in low-light production environments
- Redundant hot-swappable power modules ensure continuous operation without downtime
- Hot-swappable fan modules for in-service maintenance
- 1.3" local touchscreen for on-switch configuration and status monitoring
- Managed via UniFi Network application — no per-device licensing required

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 20 x 10G SFP+ Ports
- 2 x 100G QSFP28 Uplink Ports
- Switching Capacity: 800 Gb/s
- Forwarding Rate: 595 Mpps
- High-Precision OCXO Clock
- Optional GPS Grandmaster Input via SMA Connector
- 1.3" Touchscreen Display
- Dual Hot-Swappable 150W Power Modules
- Hot-Swappable Fan Modules

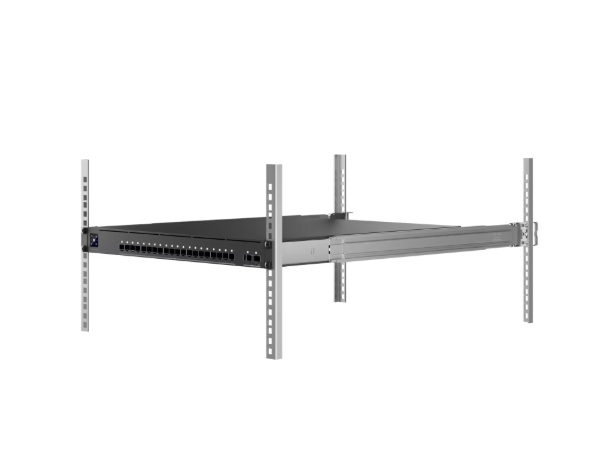

- Form Factor: 1U Rack Mount
- Etherlighting™ Support

FAQs

Q: What AV-over-IP standards does the UniFi EAV-Fiber switch support?
A: The EAV-Fiber supports SMPTE ST 2110 for professional uncompressed media over IP, SDVoE for software-defined video workflows, AES67 for audio-over-IP, and PTP (Precision Time Protocol) for deterministic network timing — making it suitable for broadcast, live production, and enterprise AV environments.

Q: How does the OCXO clock and GPS input benefit media production networks?
A: The high-precision OCXO (Oven-Controlled Crystal Oscillator) clock provides extremely stable, low-jitter PTP timing. An optional GPS grandmaster input via the SMA connector allows the switch to act as a primary time reference for the entire facility, ensuring all devices remain tightly synchronised for frame-accurate media transport.

Q: Can this switch be managed alongside existing UniFi infrastructure?
A: Yes. The EAV-Fiber is managed through the UniFi Network application, integrating seamlessly with other UniFi switches, access points, and security appliances. There are no per-device licensing fees — management is included.

Q: What redundancy features does the EAV-Fiber offer for critical deployments?
A: The switch includes dual hot-swappable 150W power modules and hot-swappable fan modules, allowing either to be replaced during live operation without powering down the switch — essential for broadcast and live event environments where downtime is not acceptable.

Q: Is the EAV-Fiber suitable for data centre or campus aggregation use in addition to AV applications?
A: Yes. With 800 Gb/s switching capacity, 20 x 10G SFP+ ports, and 2 x 100G QSFP28 uplinks, the EAV-Fiber also functions as a high-performance aggregation switch for enterprise campus or data centre deployments where high-density 10G connectivity and 100G uplinks are required.

Q: Can I purchase the Ubiquiti EAV-Aggregation switch in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an authorised Australian B2B IT hardware reseller supplying the Ubiquiti EAV-Fiber switch. Please note this product requires Deal Registration — contact our sales team to confirm eligibility and pricing before placing your order.
