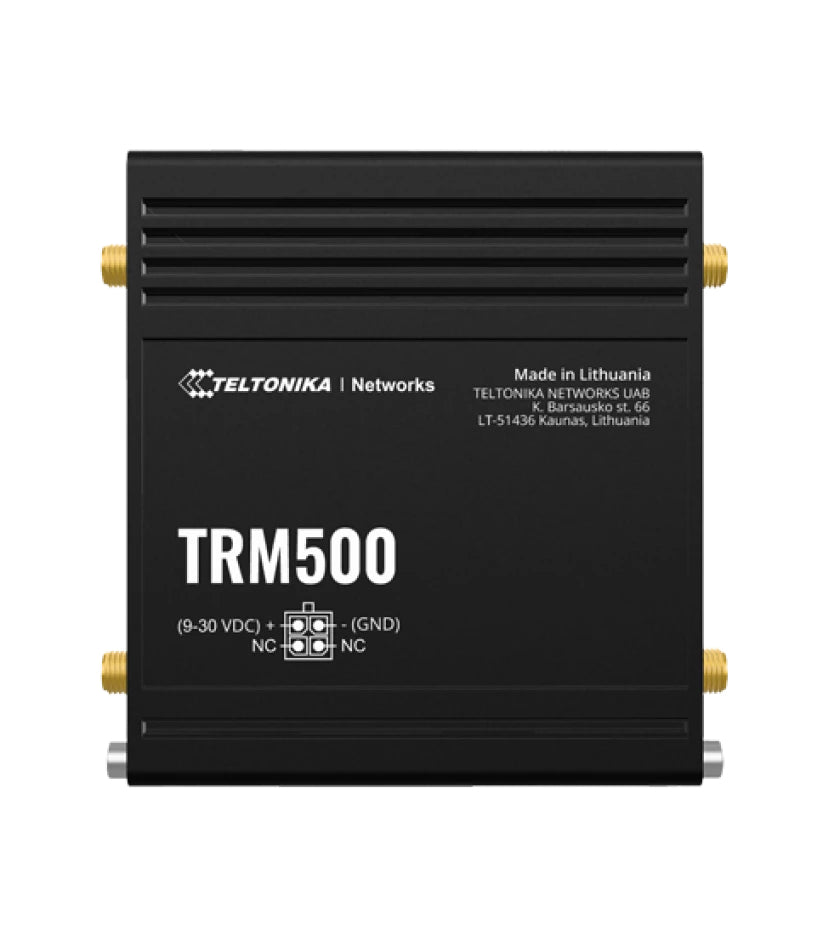

Teltonika TRM500000000 | TRM500 5G USB-C Modem, Europe Version, EU PSU

Authorised Teltonika Partner

SKU:TRM500000000

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Teltonika TRM500000000 is an industrial-grade 5G USB-C modem delivering cellular speeds of up to 3.4 Gbps (NSA) to laptops, PCs and embedded hosts. This Europe version ships with an EU power supply, and it is backward compatible with 4G LTE Cat 19 and 3G networks, so connectivity continues where 5G coverage is limited.

A single USB Type-C port carries both network data and power, while a 4-pin 9-30 VDC industrial power socket offers a flexible alternative. Four SMA antenna connectors support strong mobile coverage, and the anodised aluminium housing is compact, lightweight and rated for operation from -40 °C to 75 °C, with DIN rail, wall and flat surface mounting options (additional kit required).

Features

- Ultra-high cellular speeds of up to 3.4 Gbps
- Backward compatible with 4G (Cat 19) and 3G networks
- USB Type-C interface for simultaneous network data and power
- Four SMA antenna connectors for enhanced coverage
- Flexible power options: USB-C or wide-range 9-30 VDC industrial connector
- Compact, lightweight, robust industrial design with DIN rail mounting options
- Package includes the modem, 9 W AC adapter, 4 x 5G antennas, SIM adapter kit, USB-C cable (0.8 m), Allen key and quick start guide

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5G Sub-6GHz SA: 2.4 Gbps DL / 900 Mbps UL
- 5G NSA: 3.4 Gbps DL (4x4 MIMO) / 550 Mbps UL (2x2)
- 4G LTE Cat 19: up to 1.6 Gbps DL
- 3G: 42 Mbps DL / 5.76 Mbps UL
- 3GPP Release 16
- 1 x USB Type-C for data and power (host must provide 5V @ 3A)
- 1 x 4-pin industrial DC power socket, 9-30 VDC with overvoltage, reverse polarity and surge protection
- Power consumption: idle under 5 W, maximum under 12 W
- 1 x Mini SIM (2FF) slot, 1.8V/3V
- 4 x SMA antenna connectors for mobile
- Anodised aluminium housing, IP30
- Dimensions: 83 x 25 x 85.4 mm, weight 94.5 g
- Operating temperature: -40 °C to 75 °C, humidity 10-90% non-condensing
- Mounting: DIN rail, wall mount or flat surface (additional kit required)
- Host OS support: Windows 8/8.1/10/11, Linux 3.18 to 6.3
- Status LEDs: power, 5G, network
- Variant: Europe version with EU PSU

FAQs

Q: What cellular speeds does the TRM500 support?
A: On 5G Sub-6GHz it reaches up to 3.4 Gbps downlink in NSA mode and 2.4 Gbps downlink in SA mode. It falls back to 4G LTE Cat 19 at up to 1.6 Gbps and 3G at up to 42 Mbps.

Q: How is the modem powered?
A: It can be powered over the USB Type-C port, provided the host supplies 5V at 3A, or through the 4-pin industrial DC socket accepting 9-30 VDC. The supplied 9 W AC adapter is also included in this variant.

Q: Which operating systems does it support?
A: Windows 8, 8.1, 10 and 11, and Linux kernels from 3.18 to 6.3.

Q: What SIM size does it use?
A: It has one Mini SIM (2FF) slot, and a SIM adapter kit is included in the package.

Q: How can the TRM500 be mounted?
A: It supports DIN rail, wall mount and flat surface mounting. An additional mounting kit is required.

Q: What does the Europe version with EU PSU mean?
A: This SKU is the Europe version of the TRM500 supplied with an EU power supply, so check that the region and supply suit your deployment.
