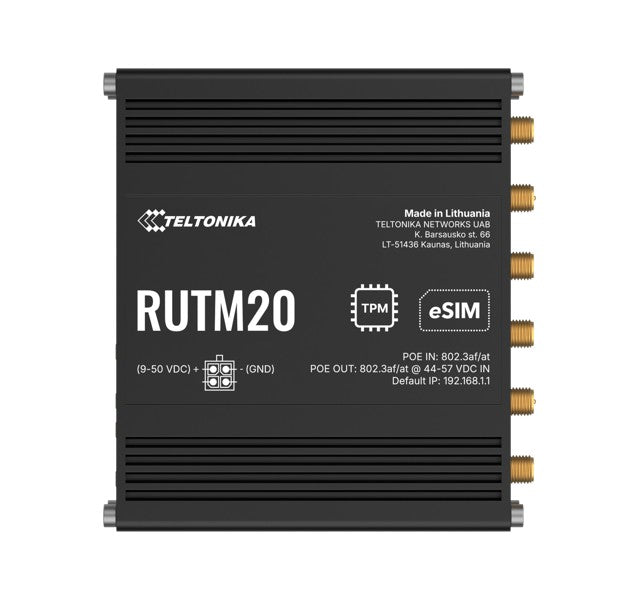

Teltonika RUTM20100400 | RUTM20 Global 5G Router, Dual SIM + eSIM, Active PoE, Antennas, PSU

Name: Teltonika RUTM20100400 | RUTM20 Global 5G Router, Dual SIM + eSIM, Active PoE, Antennas, PSU
Brand: Teltonika
SKU: RUTM20100400
Price: 1315.6 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:RUTM20100400

In stock:9

$1,315.60 inc. GST

$1,196.00 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The RUTM20 Global 5G router is an ultra-compact industrial router built around a Telit 5G Sub-6GHz modem with SA and NSA support, delivering up to 3.4 Gbps download with fallback to 4G LTE and 3G. Dual SIM slots plus an integrated eSIM provide automatic failover, making it well suited to IoT and IIoT, vehicle and remote-site deployments. This Global variant ships with a PSU, 4x 5G SMA antennas and 2x Wi-Fi RP-SMA antennas, so it is ready to deploy out of the box.

Active PoE in and PoE out allows single-cable power and data installations, while dual-band Wi-Fi 5 with MU-MIMO supports up to 150 simultaneous clients. TPM 2.0 hardware security, a broad VPN stack including OpenVPN, IPsec and WireGuard, and remote management through Teltonika RMS suit it to managed business networks. The anodised aluminium enclosure operates from -40 to 75 C and mounts on DIN rail, wall or a flat surface.

Features

- Global 5G connectivity with SA and NSA support, plus LTE and 3G fallback
- Dual SIM and eSIM with automatic failover and remote carrier switching
- Active PoE in and out for single-cable power and data deployment
- Dual-band Wi-Fi 5 with MU-MIMO, fast roaming and mesh
- VPN support including OpenVPN, IPsec, WireGuard, GRE, L2TP, PPTP, DMVPN, ZeroTier and Tailscale
- Static and dynamic routing (BGP, OSPF, RIP) with policy-based routing and load balancing
- Remote management via Teltonika RMS
- Compact anodised aluminium industrial enclosure

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Global Telit 5G Sub-6GHz modem, SA/NSA, up to 3.4 Gbps download (4x4 MIMO), 900/550 Mbps upload (2x2)
- 4G LTE fallback: Cat 19 up to 1.6 Gbps download, Cat 18 up to 211 Mbps upload
- 3G fallback: 42 Mbps download, 5.76 Mbps upload
- Dual SIM plus integrated eSIM (up to 7 profiles)
- Wi-Fi 5 (802.11n/ac), 2.4 GHz and 5 GHz, up to 867 Mbps, up to 150 clients
- RF connectors: 4x SMA female (cellular), 2x RP-SMA female (Wi-Fi)
- Active PoE in and PoE out
- Power input: 9-50V DC, PSU included
- MediaTek dual-core 880 MHz MIPS1004Kc, 256 MB DDR3 RAM, 256 MB NAND flash
- TPM 2.0 hardware security
- Dimensions: 100 x 30 x 93.7 mm, weight 319 g
- IP30, operating temperature -40 to 75 C
- Mounting: DIN rail, wall mount or flat surface
- Anodised aluminium enclosure

FAQs

Q: What is included with the RUTM20100400?
A: This SKU includes the RUTM20 Global router with a PSU, 4x 5G SMA antennas and 2x Wi-Fi RP-SMA antennas.

Q: Does the RUTM20100400 support eSIM?
A: Yes. It has two physical SIM slots plus an integrated eSIM with up to 7 profiles and automatic failover between them.

Q: Can it be powered over Ethernet?
A: Yes. It supports active PoE in, and can also supply PoE out (802.3af/at). It can also be powered by 9-50V DC or the included PSU.

Q: Is it suitable for outdoor or harsh environments?
A: It is rated IP30 with an operating temperature range of -40 to 75 C. For outdoor use it should be installed inside a suitable enclosure.

Q: Which Wi-Fi standard does it support?
A: Dual-band Wi-Fi 5 (802.11ac Wave 2) on 2.4 GHz and 5 GHz, up to 867 Mbps on 5 GHz, with MU-MIMO and up to 150 simultaneous clients.

Q: How can it be mounted and managed?
A: It can be mounted on a DIN rail, a wall or a flat surface, and managed remotely through Teltonika RMS.
