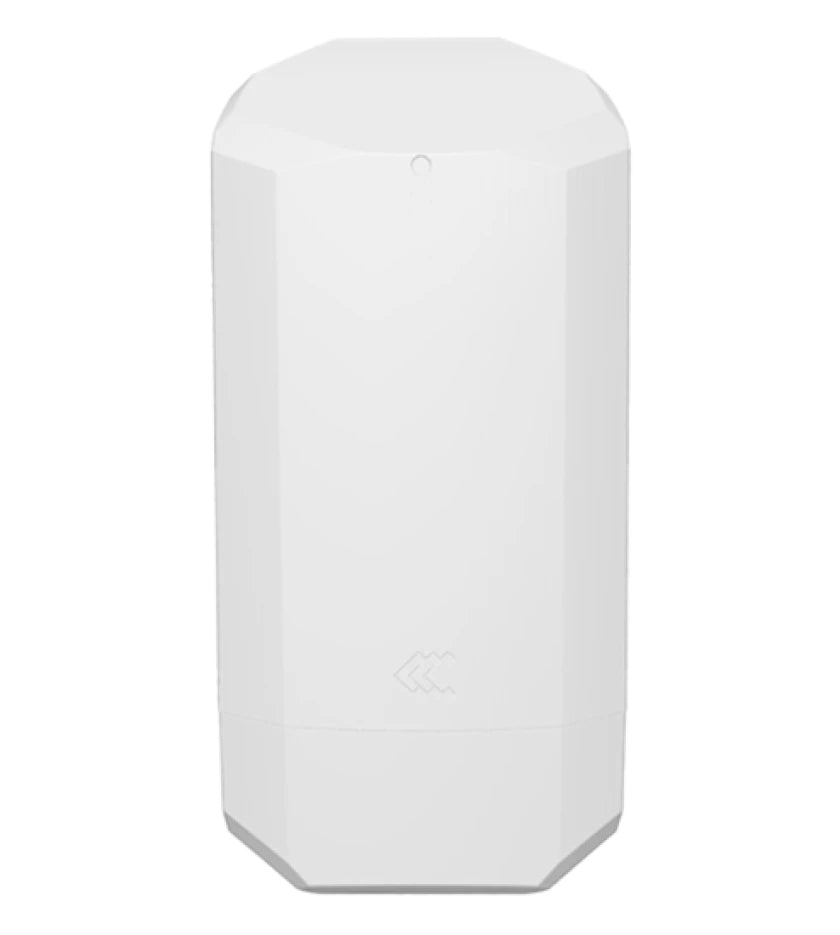

• White Teltonika OTD500100000 octagonal gigabit wired router
1 1

Teltonika

Teltonika OTD500100000 | OTD500 Outdoor 5G Router, IP55, PoE-in/out, Dual SIM + eSIM

Teltonika OTD500100000 | OTD500 Outdoor 5G Router, IP55, PoE-in/out, Dual SIM + eSIM

OTD500100000

In stock:13

$958.87 inc. GST
$871.70 ex. GST
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Teltonika OTD500 is a rugged outdoor 5G router engineered for high-speed mobile broadband in demanding environments. Supporting 5G Sub-6GHz SA/NSA with up to 3.4 Gbps downlink and LTE Cat 19 fallback, it delivers enterprise-grade connectivity from virtually any outdoor location. Dual SIM slots plus eSIM (up to 7 profiles) with automatic network switching ensure continuous uptime, while the IP55-rated PC+ASA housing and integrated wall/pole mounting bracket make field deployment straightforward. Both Gigabit Ethernet ports support WAN configuration, with one PoE-in (802.3af/at) and one PoE-out port allowing power and data to be delivered over a single cable — no separate PSU required at the router itself.

Beyond raw connectivity, the OTD500 runs a full-featured software stack including OpenVPN, IPsec, L2TP, and PPTP VPN tunnels, BGP/OSPF/RIP routing protocols, and industrial protocol support for OPC UA, Modbus, DNP3, and DLMS/COSEM — making it equally at home in smart infrastructure, remote monitoring, and enterprise edge deployments. Remote management via Teltonika RMS, SNMP, TR-069, MQTT, and FOTA firmware updates keep distributed fleets manageable at scale. RCM-certified for Australian compliance. Order direct from iptrading.com.au — Australian-owned and operated since 2001.

Features

- 5G Sub-6GHz SA/NSA support delivers up to 3.4 Gbps downlink for ultra-fast outdoor broadband
- LTE Cat 19 (4G) automatic fallback ensures uninterrupted connectivity where 5G is unavailable
- Dual SIM + eSIM (up to 7 profiles) with auto-switching for carrier redundancy and flexibility
- PoE-in and PoE-out Gigabit Ethernet ports enable single-cable power and data deployment
- IP55-rated rugged plastic housing withstands dust ingress and water jets for outdoor use
- Integrated mounting bracket supports quick wall or pole installation without additional hardware
- VPN tunnelling: OpenVPN, IPsec, PPTP, L2TP for secure remote connectivity
- Advanced routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1/2 for complex network topologies
- Industrial protocol support: OPC UA, Modbus, DNP3, DLMS/COSEM for critical infrastructure
- Remote management via Teltonika RMS, SNMP, TR-069, MQTT, FOTA, and JSON-RPC
- Security stack: Firewall, AES/DES/CAST encryption, HTTPS, IPSec, SSH, SSL/TLS
- DNS over HTTPS, load balancing, and network backup for resilient connectivity
- Auto APN configuration simplifies SIM provisioning
- RCM-certified for Australian regulatory compliance
- Operating temperature range: -40 °C to +55 °C for harsh environment deployment

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5G Sub-6GHz SA/NSA: Up to 3.4 Gbps DL (4x4 MIMO) / 900 Mbps UL (2x2 MIMO)
- 4G LTE Cat 19: Up to 1.6 Gbps DL / 200 Mbps UL
- 3G: Up to 42 Mbps DL / 5.76 Mbps UL
- 2 x RJ45 Gigabit Ethernet ports (10/100/1000 Mbps), both configurable as WAN
- 1 x PoE-in (802.3af/at, 42.5–57.0 VDC) / 1 x PoE-out (802.3af Alternative B)
- 2 x SIM slots (Mini SIM – 2FF, 1.8V/3V) + eSIM (up to 7 profiles)
- 4 x Internal omnidirectional antennas (617–5000 MHz, gain <4.9 dBi)
- Processor: MediaTek 0.88 GHz
- RAM: 256 MB DDR3 | Flash: 16 MB NOR + 256 MB NAND
- Ingress Protection: IP55
- Operating Temperature: -40 °C to +55 °C
- Dimensions: 110 x 49.3 x 235 mm | Weight: 385 g
- Casing: Plastic (PC+ASA) with integrated wall/pole mounting bracket
- Networking Standards: IEEE 802.3, 802.3af, 802.3at, 802.3az, 802.3u, 802.1x
- Certifications: CE, UKCA, RCM, CB, EAC, UCRF, WEEE
- PSU excluded — powered via PoE input

FAQs

Q: Does the OTD500 support 5G in Australia?
A: Yes. The OTD500 supports 5G Sub-6GHz SA and NSA modes, covering the bands used by Australian carriers. It also falls back to LTE Cat 19 (4G) automatically in areas where 5G coverage is unavailable, ensuring continuous connectivity.

Q: How is the OTD500 powered if no PSU is included?
A: The OTD500 is powered via its PoE-in port (802.3af/at compliant, 42.5–57.0 VDC over RJ45). A compatible PoE injector or PoE switch is required. The PSU is not included in the box, keeping the package flexible for integration into existing PoE infrastructure.

Q: What does the PoE-out port do?
A: The PoE-out port (802.3af Alternative B) allows the OTD500 to pass power downstream to another PoE-capable device — such as a PoE switch, IP camera, or access point — over the same Ethernet cable. This simplifies cabling in outdoor deployments where running separate power is impractical.

Q: Can I manage multiple OTD500 units remotely?
A: Yes. The OTD500 is compatible with Teltonika RMS (Remote Management System), which supports remote monitoring, configuration changes, firmware updates (FOTA), and diagnostics across an entire fleet of devices from a centralised cloud platform. It also supports SNMP, TR-069, MQTT, and SSH for integration with third-party management systems.

Q: Is the OTD500 suitable for industrial or critical infrastructure applications?
A: Yes. The OTD500 includes native support for industrial protocols including OPC UA, Modbus, DNP3, and DLMS/COSEM, along with advanced routing (BGP, OSPF, EIGRP) and VPN capabilities (OpenVPN, IPsec). Its -40 °C to +55 °C operating range and IP55 housing make it well suited for utilities, transport, remote monitoring, and smart infrastructure deployments.

Q: Can I buy the OTD500 in Australia from IP Trading?
A: Yes. The Teltonika OTD500 is available to order directly from iptrading.com.au. IP Trading is an Australian-owned and operated IT hardware reseller with over 20 years of experience supplying networking equipment to businesses, government, and enterprise customers across Australia.
