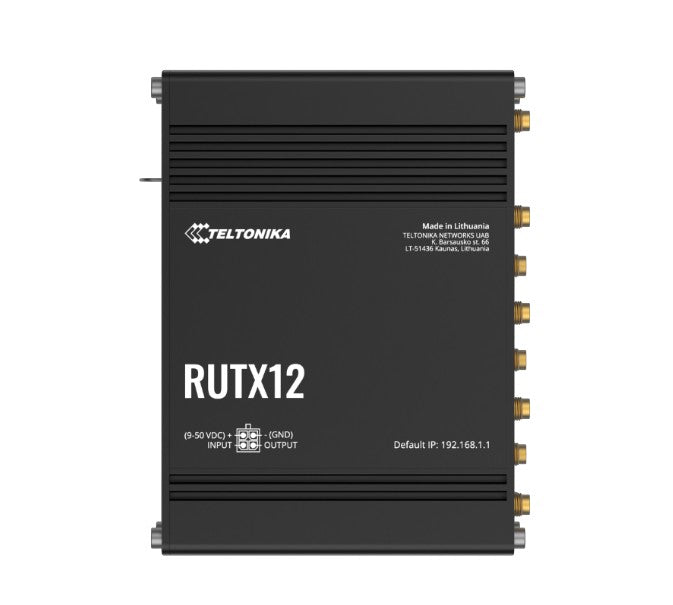

• Black Teltonika RUTX12 dual LTE CAT 6 router with gold antenna connectors
1 1

Teltonika Networks

Teltonika Networks RUTX12000200 | RUTX12 Dual LTE Cat 6 Industrial Router, Dual SIM, WiFi 5, PSU

Teltonika Networks RUTX12000200 | RUTX12 Dual LTE Cat 6 Industrial Router, Dual SIM, WiFi 5, PSU

RUTX12000200

Stock Status: Enquire

$1,093.09 inc. GST
$993.72 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The RUTX12 dual LTE Cat 6 industrial router combines two 4G LTE modems, dual-SIM failover and dual-band WiFi 5 in a rugged metal housing, built for sites that cannot afford to lose connectivity. This RUTX12000200 variant ships with a power supply unit included, so it is ready to deploy out of the box.

Five Gigabit Ethernet ports (one WAN, configurable as LAN, and four LAN) support wired devices, while 802.11ac Wave-2 WiFi and Bluetooth LE cover wireless clients and sensors. Built-in GNSS, a wide 9-50 VDC input and centralised fleet management through Teltonika RMS make it well suited to transport, remote sites and industrial deployments.

Features

- Redundant 4G connectivity with dual LTE Cat 6 modems and load balancing
- Automatic dual-SIM failover for uninterrupted uptime
- Five Gigabit Ethernet ports with a configurable WAN
- Dual-band 802.11ac Wave-2 WiFi for wireless clients
- Bluetooth LE and USB for sensors and peripherals
- Wide DC input range and extended operating temperature for harsh environments
- Centralised fleet management via Teltonika RMS
- External SMA and RP-SMA antenna connectors for flexible antenna choices

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Mobile: 2 x 4G LTE Cat 6 modems, 3G fallback
- SIM: Dual SIM with automatic failover
- Ethernet: 5 x 10/100/1000 ports (1 x WAN, configurable as LAN, 4 x LAN)
- WiFi: Dual-band 802.11ac Wave-2 (2.4 GHz and 5 GHz), AP and STA modes
- Bluetooth: 4.0 Low Energy
- CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
- Memory: 256 MB RAM, 256 MB Flash
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Power input: 4-pin DC socket, 9-50 VDC
- Connectors: 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS, 1 x RP-SMA for Bluetooth
- Interfaces: USB
- Operating temperature: -40 to +75 C
- Housing: Rugged metal, DIN-rail and wall mounting options
- Includes power supply unit

FAQs

Q: Does the RUTX12000200 include a power supply?
A: Yes, this RUTX12000200 variant includes a power supply unit, so no separate PSU is required to get started.

Q: How does the dual-SIM failover work?
A: The router supports two SIM cards with automatic failover, switching to the backup SIM if the primary connection is lost. With two LTE modems it can also load balance across connections.

Q: Can the WAN port be used as a LAN port?
A: Yes. The router has five Gigabit Ethernet ports, with one WAN port that can be configured as an additional LAN port.

Q: What WiFi standards does the RUTX12 support?
A: It supports dual-band WiFi with 802.11b/g/n on 2.4 GHz and 802.11ac/n/a (WiFi 5 Wave-2) on 5 GHz, operating as either an access point or a station.

Q: What is the operating temperature range?
A: The RUTX12 operates from -40 to +75 C, making it suitable for demanding industrial and outdoor cabinet installations.

Q: Can it be managed remotely?
A: Yes. The router is compatible with Teltonika RMS for centralised monitoring and management of deployed devices.
