Teltonika RUTM09000300 | RUTM09 4G LTE Cat 6 Router, 2 SIM, GNSS, PSU, 4x GbE

Name: Teltonika RUTM09000300 | RUTM09 4G LTE Cat 6 Router, 2 SIM, GNSS, PSU, 4x GbE
Brand: Teltonika
SKU: RUTM09000300
Price: 537.63 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:RUTM09000300

In stock:22

$537.63 inc. GST

$488.75 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

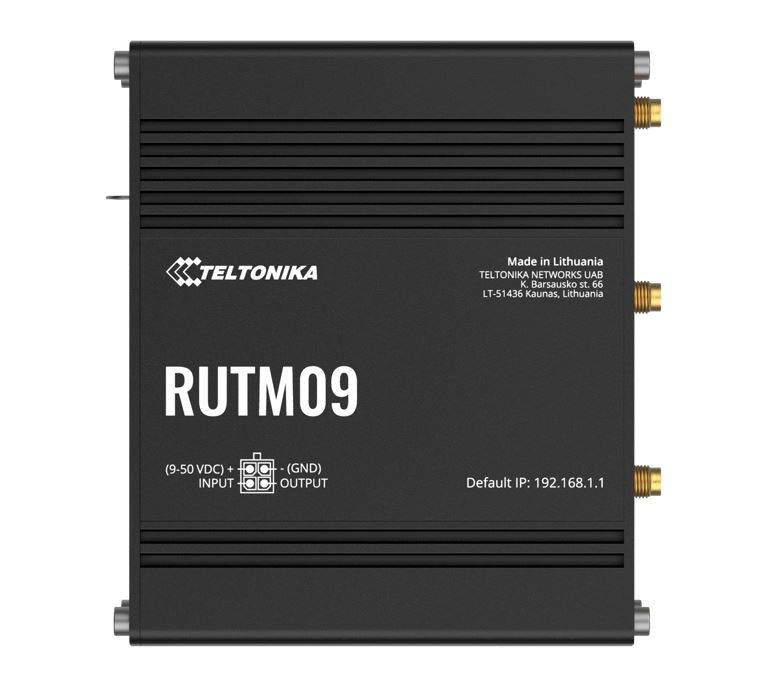

The RUTM09 4G LTE Cat 6 router delivers up to 300 Mbps download and 50 Mbps upload over cellular, with dual SIM auto-failover, four Gigabit RJ45 ports (1 WAN, 3 LAN) and integrated GNSS. This SKU includes a power supply, making it ready to deploy for primary or backup connectivity at remote sites, retail locations, vehicles and industrial installations.

Carrier aggregation, 3G fallback, up to 128 tag or port-based VLANs and a USB 2.0 port support flexible network designs. WireGuard, ZeroTier and SSTP VPN options, Modbus and OPC UA protocol support and an anodised aluminium IP30 housing rated from -40 to 75 C suit demanding environments.

Features

- Dual SIM with auto-failover
- Carrier aggregation for higher throughput
- GNSS location services and time synchronisation
- Configurable geofence zones
- Auto APN
- HTTP(S), MQTT and Azure MQTT support
- Firewall with WireGuard, ZeroTier and SSTP VPN options
- Modbus TCP server/client and OPC UA client/server support
- Scripting with Busybox shell, Lua, C and C++
- Configurable digital inputs and outputs

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4G LTE Cat 6, up to 300 Mbps download / 50 Mbps upload
- 3G fallback up to 42 Mbps download / 5.76 Mbps upload
- 3GPP Release 12
- 2 x SIM slots (Mini SIM 2FF, 1.8 V/3 V) with auto-switching and failover
- 4 x 10/100/1000 Mbps RJ45 ports (1 WAN, 3 LAN)
- Up to 128 tag/port-based VLANs
- GNSS/GPS support
- USB 2.0 port
- 2 x mobile antennas (SMA male, swivel mount) and 1 x GNSS antenna (SMA male, adhesive mount, 3 m cable)
- Anodised aluminium housing, IP30
- Operating temperature -40 to 75 C, humidity 10 to 90% non-condensing
- Power supply included

FAQs

Q: What cellular speeds does the RUTM09 support?
A: It supports 4G LTE Cat 6 with up to 300 Mbps download and 50 Mbps upload, with 3G fallback up to 42 Mbps download and 5.76 Mbps upload.

Q: Does this router support SIM failover?
A: Yes. It has two Mini SIM (2FF) slots with auto-switching, so traffic can fail over to the second SIM if the primary connection drops.

Q: Is a power supply included with RUTM09000300?
A: Yes, this SKU ships with a power supply.

Q: How many Ethernet ports does it have and what speed are they?
A: It has four 10/100/1000 Mbps RJ45 ports, configured as one WAN and three LAN.

Q: Does it include GNSS?
A: Yes. It supports GNSS/GPS for location services, geofence zones and time synchronisation, and a GNSS antenna with a 3 m cable is included in the specification.

Q: Which VPN and industrial protocols are supported?
A: It supports WireGuard client and server, ZeroTier client and SSTP client VPNs, plus Modbus TCP and OPC UA for industrial integration.
