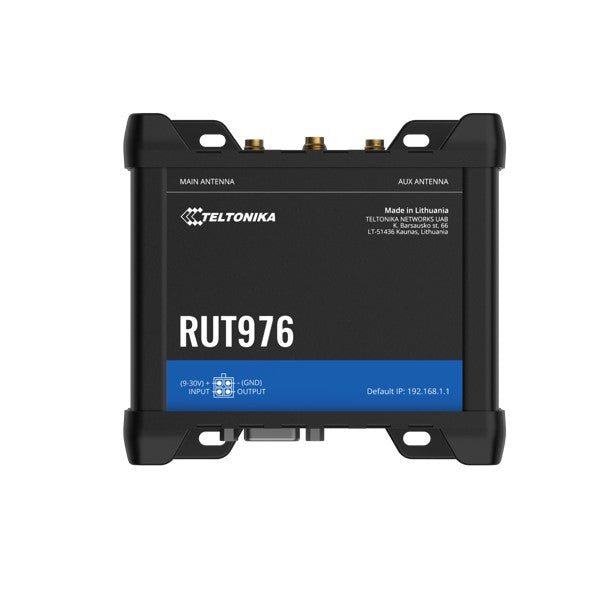

• Black Teltonika RUT976 5G router with blue label and gold antenna connectors
1 1

Teltonika

Teltonika RUT976000200 | RUT976 RedCap 5G Router, Dual-SIM, 4x Ethernet, 240V PSU

Teltonika RUT976000200 | RUT976 RedCap 5G Router, Dual-SIM, 4x Ethernet, 240V PSU

Authorised Teltonika Partner

RUT976000200

In stock:33

$791.89 inc. GST
$719.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The RUT976 is an industrial 5G RedCap cellular router with dual-SIM automatic failover, four 10/100 Ethernet ports and 2.4 GHz Wi-Fi 4. Supplied with a 240V power supply with AU plug, it is ready for Australian deployments such as remote sites, kiosks, transport and industrial networks, and it is backward compatible with 4G LTE Cat 4.

Built on RutOS (OpenWrt based), the RUT976 includes RS232 and RS485 serial interfaces, a USB 2.0 port and integrated GNSS with GPS, GLONASS, BeiDou, Galileo and QZSS. The rugged aluminium housing supports DIN rail, wall and flat surface mounting and operates from -40 to 75 C, with remote management available through Teltonika RMS.

Features

- Dual-SIM with automatic failover for resilient WAN connectivity
- RedCap 5G with low latency at lower cost than full 5G
- Backward compatible with 4G LTE Cat 4
- Remote management via Teltonika RMS
- Extensive VPN support and built-in firewall
- Industrial protocols support
- Rugged aluminium housing for harsh environments
- Supports up to 100 end devices
- RutOS (OpenWrt based) operating system

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5G RedCap Sub-6GHz SA, 3GPP Release 17, backward compatible with 4G LTE Cat 4
- 5G speeds up to 223 Mbps download / 123 Mbps upload
- 4G LTE Cat 4 speeds up to 195 Mbps download / 105 Mbps upload
- Dual SIM (Mini SIM 2FF) with automatic failover
- Ethernet: 1 x WAN and 3 x LAN, 10/100 Mbps
- Wi-Fi 4 (802.11b/g/n) 2.4 GHz
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Serial: RS232 and RS485
- USB: 1 x USB 2.0
- Antenna connectors: 2 x SMA (mobile), 2 x RP-SMA (Wi-Fi), 1 x SMA (GNSS)
- CPU: Mediatek 580 MHz MIPS 24KEc, 128 MB DDR2 RAM
- Input voltage: 9-30 VDC with reverse polarity and surge protection
- Power consumption: under 3 W idle, under 7 W maximum
- Passive PoE through LAN1 port (not IEEE 802.3af/at/bt compatible)
- Operating temperature: -40 to 75 C
- Operating humidity: 10 to 90% non-condensing
- Aluminium housing, 110 x 50 x 100 mm, 295 g
- Mounting: DIN rail, wall mount or flat surface
- Includes 240V PSU with AU plug

FAQs

Q: Is the power supply included with the RUT976000200?
A: Yes. This SKU includes a 240V power supply with an Australian (AU) plug.

Q: Does the RUT976 support 4G networks?
A: Yes. It is a 5G RedCap router that is backward compatible with 4G LTE Cat 4.

Q: How does the dual-SIM failover work?
A: The router has two Mini SIM (2FF) slots and can switch automatically to the backup SIM if the primary connection fails.

Q: What Ethernet speed do the ports support?
A: The four Ethernet ports (1 x WAN, 3 x LAN) are 10/100 Mbps.

Q: Can the RUT976 be powered by PoE?
A: It supports passive PoE through the LAN1 port at 9-30 VDC. This is not compatible with IEEE 802.3af/at/bt PoE.

Q: What mounting options are available?
A: The aluminium housing can be DIN rail mounted, wall mounted or placed on a flat surface.
