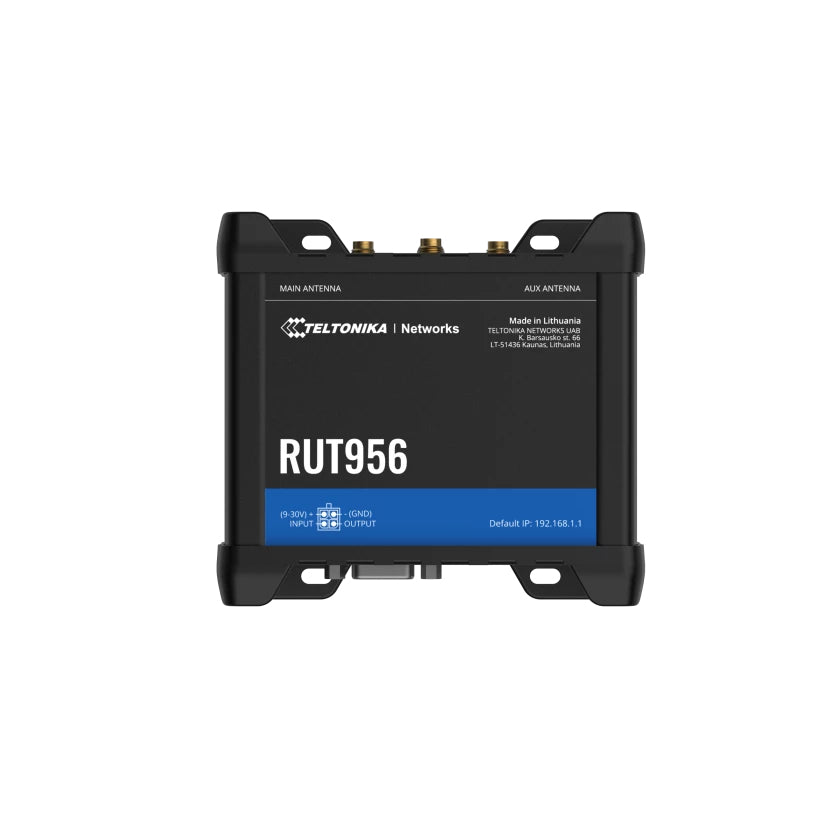

Teltonika RUT956700600 | RUT956 Dual-SIM 4G LTE Router, Wi-Fi 4, GNSS, RS232/RS485

Name: Teltonika RUT956700600 | RUT956 Dual-SIM 4G LTE Router, Wi-Fi 4, GNSS, RS232/RS485
Brand: Teltonika
SKU: RUT956700600
Price: 583.17 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:RUT956700600

In stock:62

$583.17 inc. GST

$530.15 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Teltonika RUT956 is an industrial 4G LTE Cat 4 cellular router with dual SIM failover, Wi-Fi 4, GNSS and RS232/RS485 serial. It provides four 10/100 Ethernet ports (one WAN, three LAN) and a power supply is included, making it a ready-to-deploy solution for remote sites, vehicles, kiosks and industrial monitoring where a reliable cellular uplink is needed.

Built in an aluminium IP30 housing rated for -40 to 75 C, the RUT956 supports a 9-30 VDC input, a 10-pin I/O connector with two inputs and two outputs, and a USB 2.0 port. It runs RutOS with OpenVPN, IPsec, PPTP and L2TP VPN support, Modbus, MQTT and NTRIP for IoT and industrial use, and remote management through Teltonika RMS.

Features

- Dual SIM with automatic failover and backup WAN for resilient connectivity
- VPN support including OpenVPN, IPsec, PPTP and L2TP
- Modbus, MQTT and NTRIP support for IoT and industrial applications
- Remote monitoring and management through Teltonika RMS
- GNSS for location services and time synchronisation
- Wi-Fi 4 with mesh (802.11s), fast roaming (802.11r), 802.11v and 802.11k
- Flexible mounting on DIN rail, wall or flat surface (mounting kits sold separately)
- Hazardous location rated (Class I Div 2 / Zone 2)

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4G LTE Cat 4, up to 150 Mbps download and 50 Mbps upload, with 3G and 2G fallback
- Dual SIM (2 x Mini-SIM 2FF) with automatic failover, plus eSIM support with up to 7 profiles
- 4 x RJ45 10/100 Mbps Ethernet (1 x WAN, 3 x LAN)
- Wi-Fi 4 (IEEE 802.11b/g/n, 2.4 GHz), up to 100 simultaneous connections
- GNSS/GPS with dedicated SMA antenna connector
- RS232 and RS485 serial interfaces
- I/O: 2 x inputs and 2 x outputs on a 10-pin industrial socket
- 1 x USB 2.0
- CPU: Mediatek 580 MHz MIPS 24KEc, 128 MB DDR2 RAM, 16 MB SPI flash
- Antenna connectors: 2 x mobile SMA, 2 x Wi-Fi RP-SMA, 1 x GNSS SMA
- Input voltage 9-30 VDC with reverse polarity and surge protection, 9 V 1 A power adapter included
- Power consumption: less than 2 W idle, less than 7 W maximum
- Operating temperature -40 to 75 C, humidity 10% to 90% non-condensing
- IP30 aluminium housing

FAQs

Q: Does the RUT956 include a power supply?
A: Yes. A 9 VDC 1 A power adapter with a 4-pin plug is included, and the router also accepts 9-30 VDC input for industrial and vehicle installations.

Q: What cellular speeds does the RUT956 support?
A: It supports 4G LTE Cat 4 with up to 150 Mbps download and 50 Mbps upload, with fallback to 3G and 2G networks.

Q: How does dual SIM failover work?
A: The router has two Mini-SIM (2FF) slots and can automatically switch to the backup SIM if the primary connection fails. eSIM is also supported.

Q: Can it connect serial and industrial devices?
A: Yes. It provides RS232 and RS485 serial interfaces, a 10-pin I/O connector with two inputs and two outputs, and Modbus and MQTT support.

Q: Are the Ethernet ports Gigabit?
A: No. The four RJ45 ports are 10/100 Mbps, with one configured as WAN and three as LAN.

Q: What mounting options are available?
A: The RUT956 can be mounted on a DIN rail, a wall or a flat surface. Mounting kits are sold separately.
