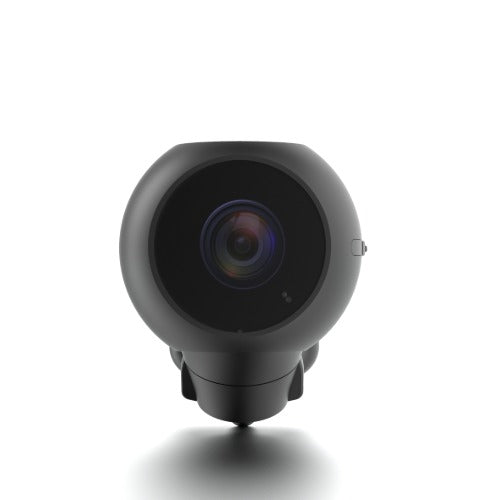

• Black spherical teltonika dsmcam3ut801 driver safety monitoring camera with glossy finish and central lens
1 1

Teltonika

Teltonika DSMCAM3UT801 | DSM Driver Safety Monitoring Camera & FMC640 GPS Tracker Bundle

Teltonika DSMCAM3UT801 | DSM Driver Safety Monitoring Camera & FMC640 GPS Tracker Bundle

DSMCAM3UT801

In stock:1

$777.98 inc. GST
$707.25 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika DSM Driver Safety Monitoring solution combines a compact 720p HDR cabin-facing camera with the professional FMC640 GPS tracker to deliver real-time driver behaviour monitoring for commercial fleets. Using deep-learning technology, the DSM detects drowsiness, distraction, yawning, smoking, phone use, and seatbelt non-compliance, issuing instant audible alerts to the driver and transmitting event data to fleet managers. It mounts discreetly near the vehicle A-pillar and operates reliably across day, night, and challenging lighting conditions with dual infrared LEDs and a wide operating temperature range of -20 °C to +70 °C.

The system supports face recognition for up to 200 driver IDs and stores incident footage on a microSD card up to 128 GB for post-event investigation and driver coaching. CAN 2.0 integration enables vehicle speed monitoring directly from the CAN line, while RS-232 connectivity links the DSM camera to the FMC640/FMC650 tracker. Compatible with Teltonika's fleet telematics ecosystem, the DSM is certified CE/RED, E-Mark, FCC, and RoHS, making it suitable for professional fleet deployments across Australia. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- Deep-learning AI analyses head position, face direction, eye-opening, and mouth movement to accurately detect fatigue and distraction in real time
- Instant audible in-cabin alerts for drowsiness, yawning, distraction, smoking, phone use, and seatbelt non-compliance
- Driver face recognition identifies up to 200 individual drivers for personalised monitoring and accountability
- Up to 128 GB microSD offline storage captures event footage before, during, and after safety incidents
- Photo-on-demand and periodic image transmission to fleet server available via FMC650 integration
- CAN 2.0 interface enables vehicle speed monitoring directly from the CAN bus
- Compact A-pillar mount design keeps the driver's forward view completely unobstructed
- Dual RS-232 support on FMC650 allows simultaneous DSM camera and DashCam operation
- Reliable performance in bright sunlight, nighttime, and when drivers wear masks or hats
- Enables remote fleet manager access to event data for driver coaching, compliance monitoring, and incident investigation

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Camera Resolution: 720p @ 30 fps, HDR
- Infrared Night Vision: 2× IR LEDs
- GNSS: GPS, GLONASS, QZSS (via FMC640)
- Driver ID: Face recognition, up to 200 driver IDs
- Storage: MicroSD up to 128 GB
- Interface: USB Type-C (calibration), CAN 2.0, RS-232 TX/RX
- Audio: Built-in speaker and microphone
- LED Indication: Dual Red/Green LED
- Main Cable Length: 3.5 m split cable
- Camera Dimensions: 48.7 × 56.18 × 78.52 mm
- Main Connection Box Dimensions: 172 × 84.65 × 27 mm
- Supply Voltage: 12 V / 24 V
- Max Power Consumption: 8.4 W
- Operating Temperature: -20 °C to +70 °C
- Compatible GPS Tracker: Teltonika FMC640 / FMC650
- Certifications: CE/RED, UKCA, E-Mark, FCC, KC, RoHS
- EAN: 4779027310510

FAQs

Q: What driver behaviours does the Teltonika DSM detect?
A: The DSM uses deep-learning AI to detect drowsiness, eye closure, yawning, distraction, head position deviation, smoking, mobile phone use, and seatbelt non-compliance. It issues immediate audible alerts in-cabin and logs events for fleet review.

Q: Which GPS tracker does the DSM camera connect to?
A: The DSM is designed to work with the Teltonika FMC640 and FMC650 GPS trackers via RS-232. The FMC650's dual RS-232 ports also allow simultaneous connection of the DSM and a DashCam or DualCam for comprehensive video telematics.

Q: Does the DSM work at night or in poor lighting conditions?
A: Yes. The DSM features dual infrared LEDs for night vision capability and uses HDR imaging to handle challenging lighting scenarios including bright sunlight. It also recognises drivers wearing masks or hats.

Q: How is incident footage stored and accessed?
A: The DSM supports a microSD card up to 128 GB for local offline storage of event footage before, during, and after an incident. When used with the FMC650, photo-on-demand or periodic image transmission to a fleet server is also supported.

Q: Is the Teltonika DSM suitable for Australian fleet deployments?
A: Yes. The DSM holds CE/RED, UKCA, E-Mark, FCC, KC, and RoHS certifications and supports both 12 V and 24 V vehicle systems, making it compatible with passenger vehicles, light commercial vans, and heavy trucks used across Australian fleets.

Q: Can I purchase the Teltonika DSM in Australia through IP Trading?
A: Yes. iptrading.com.au stocks Teltonika fleet telematics and vehicle safety products including the DSM solution. Orders receive fast shipping and expert pre-sales and post-sales support across Australia.
