Teltonika DAP145000000 | DAP145 RS485 Industrial Wi-Fi 4 Access Point, DIN-Rail, No PSU

Name: Teltonika DAP145000000 | DAP145 RS485 Industrial Wi-Fi 4 Access Point, DIN-Rail, No PSU
Brand: Teltonika
SKU: DAP145000000
Price: 132.83 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:DAP145000000

In stock:15

$132.83 inc. GST

$120.75 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

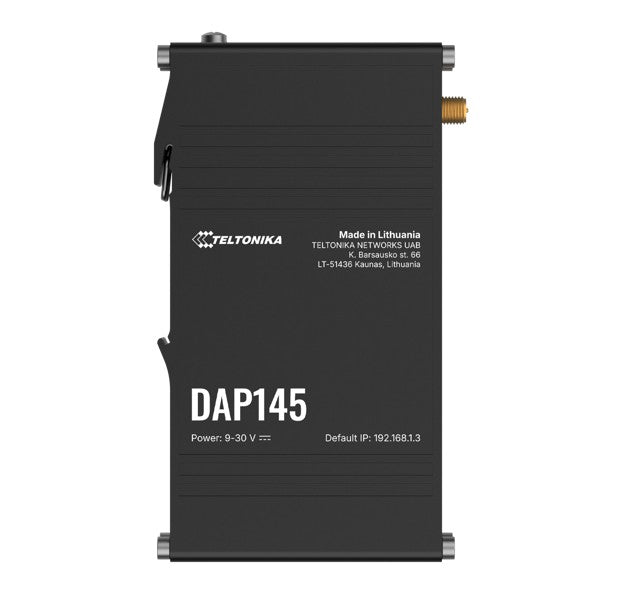

The Teltonika DAP145 is an industrial Wi-Fi 4 (802.11b/g/n) access point with a native RS485 port, built for bridging serial devices onto IP networks. It operates as an access point or station, supports mesh and fast roaming, and mounts on a DIN rail inside control cabinets. This RS485, DIN-rail mount version ships without a power supply unit.

Its aluminium IP30 housing is rated for -40 to 75 C operation and accepts 9-30 V DC through a 3-pin terminal connector. Two 10/100 Mbps LAN ports, support for up to 50 simultaneous Wi-Fi connections and industrial protocols such as Modbus (TCP/RTU), OPC UA, BACnet, MQTT and DNP3 make it well suited to factory automation, utilities and building management. RutOS and RMS provide remote management and monitoring.

Features

- Bridges RS485 devices to IP networks using Serial-over-IP and Modbus over Wi-Fi and Ethernet
- Flexible Wi-Fi modes including mesh, station and fast roaming for coverage extension and mobile industrial assets
- Native support for Modbus, OPC UA, BACnet, MQTT, DNP3 and DLMS, plus the Data to Server tool for cloud-ready data collection
- Narrow footprint with integrated DIN rail mounting and top-entry terminal block power
- Wide -40 to 75 C operating range in a robust aluminium housing
- RutOS with RMS for remote management and monitoring

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi 4 IEEE 802.11b/g/n, AP and STA modes
- 1 x RS485 serial port (RTU), serial-to-IP bridging
- 2 x 10/100 Mbps LAN ports, auto MDI/MDIX
- Up to 50 simultaneous Wi-Fi connections
- Wi-Fi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK
- Wireless mesh (802.11s), fast roaming (802.11r), BSS transition (802.11v), radio resource measurement (802.11k)
- CPU: Mediatek 580 MHz MIPS 24KEc, 128 MB DDR2 RAM, 16 MB NOR flash
- Power input: 9-30 V DC via 3-pin terminal connector (PSU not included)
- Operating temperature: -40 to 75 C
- Anodised aluminium housing, IP30
- Integrated DIN rail bracket; wall or flat surface mounting with additional kit
- Dimensions: 113.1 x 25 x 68.6 mm, weight 149.2 g
- Certifications: CE, FCC, RCM, CB, UKCA, RED, EAC
- Operating system: RutOS (OpenWRT-based) with RMS remote management

FAQs

Q: Does the DAP145 include a power supply?
A: No. This SKU is supplied without a PSU. It is powered from a 9-30 V DC source through the included 3-pin power connector.

Q: What does the RS485 port do?
A: The RS485 (RTU) port lets serial devices be bridged onto IP networks using Serial-over-IP and Modbus gateway functions, over Wi-Fi or Ethernet.

Q: Which Wi-Fi standard and how many clients are supported?
A: It supports Wi-Fi 4 (IEEE 802.11b/g/n) in access point and station modes, with up to 50 simultaneous Wi-Fi connections.

Q: Can it be used in mesh or roaming deployments?
A: Yes. It supports wireless mesh (802.11s) and fast roaming (802.11r), along with BSS transition management (802.11v) and radio resource measurement (802.11k).

Q: How is the DAP145 mounted?
A: It has an integrated DIN rail bracket. Wall mount and flat surface installation are also possible with an additional mounting kit.

Q: What operating conditions is it rated for?
A: It operates from -40 to 75 C in an anodised aluminium housing with IP30 ingress protection, suited to control cabinets and industrial enclosures.
