Ubiquiti RP-5AC-GEN2 | airMAX Rocket Prism 5AC Gen2 5GHz Radio, GPS Sync, PoE

Name: Ubiquiti RP-5AC-GEN2 | airMAX Rocket Prism 5AC Gen2 5GHz Radio, GPS Sync, PoE
Brand: Ubiquiti
SKU: RP-5AC-GEN2
Price: 437.31 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:RP-5AC-GEN2

In stock:48

$437.31 inc. GST

$397.55 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

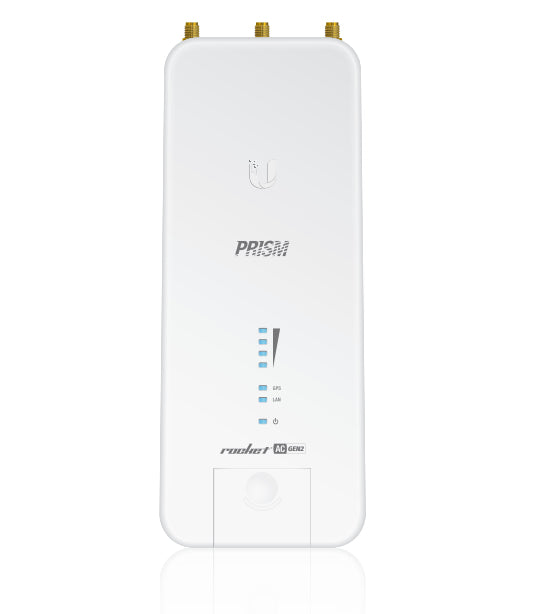

The Ubiquiti airMAX Rocket Prism 5AC Gen2 is an outdoor 5 GHz airMAX ac radio base station for point-to-multipoint and point-to-point wireless links. This Gen2 model includes integrated GPS sync and a Gigabit PoE adapter in the box, delivering up to 500+ Mbps of throughput for ISP and enterprise backhaul or access deployments.

The Rocket Prism 5AC mounts directly onto a Ubiquiti RocketDish for point-to-point links or an airMAX sector antenna for point-to-multipoint networks. airPrism technology improves noise immunity, while the airView spectrum analyser helps you plan and troubleshoot in congested environments. The die-cast aluminium enclosure with EMI shielding and enhanced ESD protection is built for harsh outdoor conditions.

Features

- airMAX ac technology with 256QAM modulation, built on a TDMA protocol
- airPrism technology for improved noise immunity
- Integrated GPS sync for scalable, carrier-class networks
- Real-time spectrum analyser via airView
- Enhanced ESD protection in an EMI-shielded housing
- Mounts directly onto a Ubiquiti RocketDish (PtP) or airMAX sector antenna (PtMP)
- Gigabit PoE adapter included in the box

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5 GHz airMAX ac radio, up to 500+ Mbps throughput
- 1 x 10/100/1000 Ethernet (RJ45) port
- 2 x RP-SMA (waterproof) RF connectors and 1 x GPS (waterproof) connector
- Integrated GPS sync supported
- Passive PoE 2-pair (pins 4, 5+; 7, 8 return), 18-27V DC supported voltage range
- 24V, 1A Gigabit PoE adapter included with mounting bracket and power cord
- Maximum power consumption 9.5W
- Die-cast aluminium enclosure with white powder coating
- Dimensions: 88 x 40 x 230 mm, weight 400 g
- Operating temperature -40 to 80 C, humidity 5 to 95% noncondensing
- Wind loading 342.5 N at 200 km/h
- Certifications: CE, FCC, IC, RoHS, NDAA compliant
- 4 LEDs: signal strength, GPS, power, LAN
- Certified antennas: Omni 5 GHz 13 dBi, Sector 5 GHz 22 dBi, Dish 5 GHz 34 dBi

FAQs

Q: What is the difference between the Rocket Prism 5AC Gen2 and the standard Rocket Prism 5AC?
A: This Gen2 model includes integrated GPS sync support and ships with a Gigabit PoE adapter, GPS antenna and mounting bracket, making it suited to scalable multi-radio deployments.

Q: Does the RP-5AC-GEN2 include a PoE adapter?
A: Yes. It ships with a 24V, 1A Gigabit PoE adapter with a mounting bracket and power cord.

Q: What antennas can I use with the Rocket Prism 5AC Gen2?
A: It mounts directly onto a Ubiquiti RocketDish for point-to-point links or an airMAX sector antenna for point-to-multipoint. Certified antenna types are Omni 5 GHz 13 dBi, Sector 5 GHz 22 dBi and Dish 5 GHz 34 dBi.

Q: What is GPS sync used for?
A: GPS sync synchronises transmit and receive timing across multiple radios on a site, reducing self-interference and enabling carrier-class network scaling.

Q: How is the radio powered?
A: It uses passive PoE (24V) over its single Gigabit Ethernet port, with a supported voltage range of 18-27V DC and a maximum power draw of 9.5W.

Q: Is it suitable for outdoor installation?
A: Yes. It has a die-cast aluminium enclosure, waterproof RF and GPS connectors, and an operating temperature range of -40 to 80 C.
