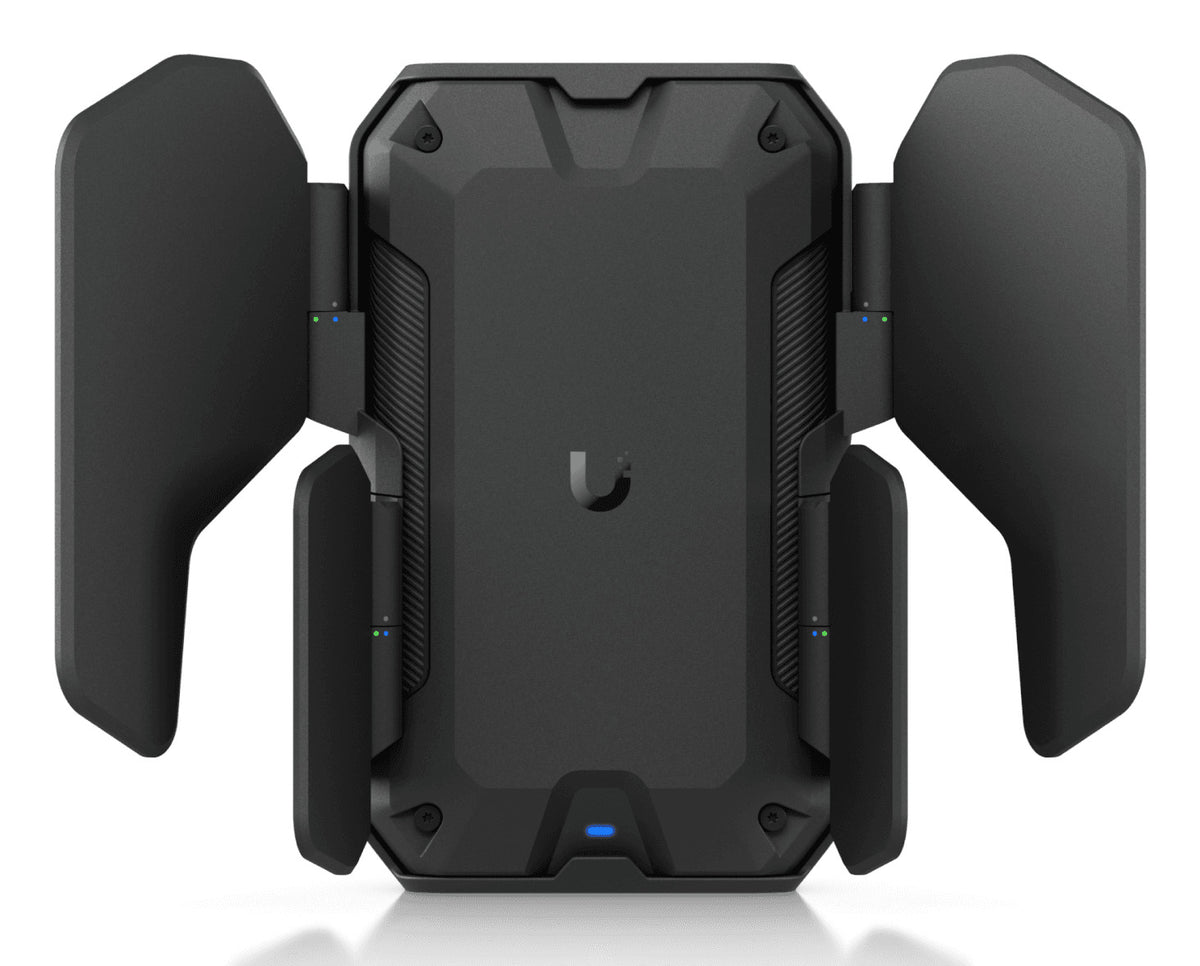

Ubiquiti U7-INDUSTRIAL | UniFi U7 Industrial WiFi 7 Access Point, IP67, 2.5GbE PoE

Authorised Ubiquiti Partner

SKU:U7-INDUSTRIAL

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The UniFi U7 Industrial is an IP67-rated WiFi 7 access point built for harsh and outdoor environments, with extended-temperature operation from -40 to 70 C. It combines an integrated high-gain directional RF system with adjustable isolation and beamwidth control, delivering up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz across 4 spatial streams, with coverage up to 465 m2 and 200+ clients.

Powered over PoE through a single 2.5 GbE RJ45 uplink, the U7 Industrial ships with wall and pole mounts for flexible installation. Optional reflector and omnidirectional antenna configurations let you tailor coverage, and the access point is NDAA compliant and managed through the UniFi Network application.

Features

- Integrated high-gain directional RF system with adjustable isolation and beamwidth control
- Wireless meshing
- Band steering
- 802.11r fast roaming, 802.11k RRM and 802.11v BSS transition management
- Advanced radio management and real-time spectral analysis
- Passpoint (Hotspot 2.0)
- Private Pre-Shared Key (PPSK)
- WiFi speed limiting, WiFi schedules and client device isolation
- RADIUS over TLS (RadSec) and dynamic RADIUS-assigned VLAN
- Captive hotspot portal with custom branding, voucher, payment, password and external portal authentication, plus guest network isolation

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- WiFi 7 (802.11be), 4 spatial streams
- 5 GHz: 2x2 DL/UL MU-MIMO, up to 4.3 Gbps (BW240)
- 2.4 GHz: 2x2 DL/UL MU-MIMO, up to 688 Mbps (BW40)
- 1 x 2.5 GbE RJ45 uplink, PoE powered
- Supported voltage range: 42.5-57 V DC, max. power consumption 13 W
- IP67 weatherproof enclosure
- Operating temperature -40 to 70 C, humidity 5 to 95% noncondensing
- Coverage up to 465 m2 (5,000 ft2), 200+ clients
- Max. TX power: 24 dBm (5 GHz), 23 dBm (2.4 GHz)
- Built-in directional antenna gain: 10 dBi (5 GHz), 8 dBi (2.4 GHz)
- Dimensions (device): 170 x 103 x 41.2 mm, weight 577 g
- Wall and pole mounts included, pole diameter 25-63.5 mm
- UV-stabilised polycarbonate and aluminium alloy enclosure
- NDAA compliant, CE, FCC and IC certified

FAQs

Q: How is the UniFi U7 Industrial powered?
A: It is powered over Ethernet through its single 2.5 GbE RJ45 port, accepting 42.5-57 V DC with a maximum power consumption of 13 W.

Q: What environmental conditions can the U7 Industrial handle?
A: It has an IP67 weatherproof enclosure and operates in ambient temperatures from -40 to 70 C and 5 to 95% noncondensing humidity.

Q: What are the maximum wireless speeds?
A: Up to 4.3 Gbps on the 5 GHz band (BW240) and up to 688 Mbps on the 2.4 GHz band (BW40), each with 2x2 DL/UL MU-MIMO.

Q: What mounting options are included?
A: Wall and pole mounts are included. The pole mount supports pole diameters from 25 to 63.5 mm.

Q: Can the coverage pattern be adjusted?
A: Yes. The integrated directional RF system offers adjustable isolation and beamwidth control, and the unit supports reflector antennas (wide and narrow angle) and external omnidirectional antennas.

Q: Is the U7 Industrial NDAA compliant?
A: Yes, it is NDAA compliant and carries CE, FCC and IC certifications.
