Teltonika DAP142000000 | DAP142 Industrial Wi-Fi 4 Access Point, RS232, Dual RJ45, PoE

Name: Teltonika DAP142000000 | DAP142 Industrial Wi-Fi 4 Access Point, RS232, Dual RJ45, PoE
Brand: Teltonika
SKU: DAP142000000
Price: 120.18 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:DAP142000000

In stock:15

$120.18 inc. GST

$109.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

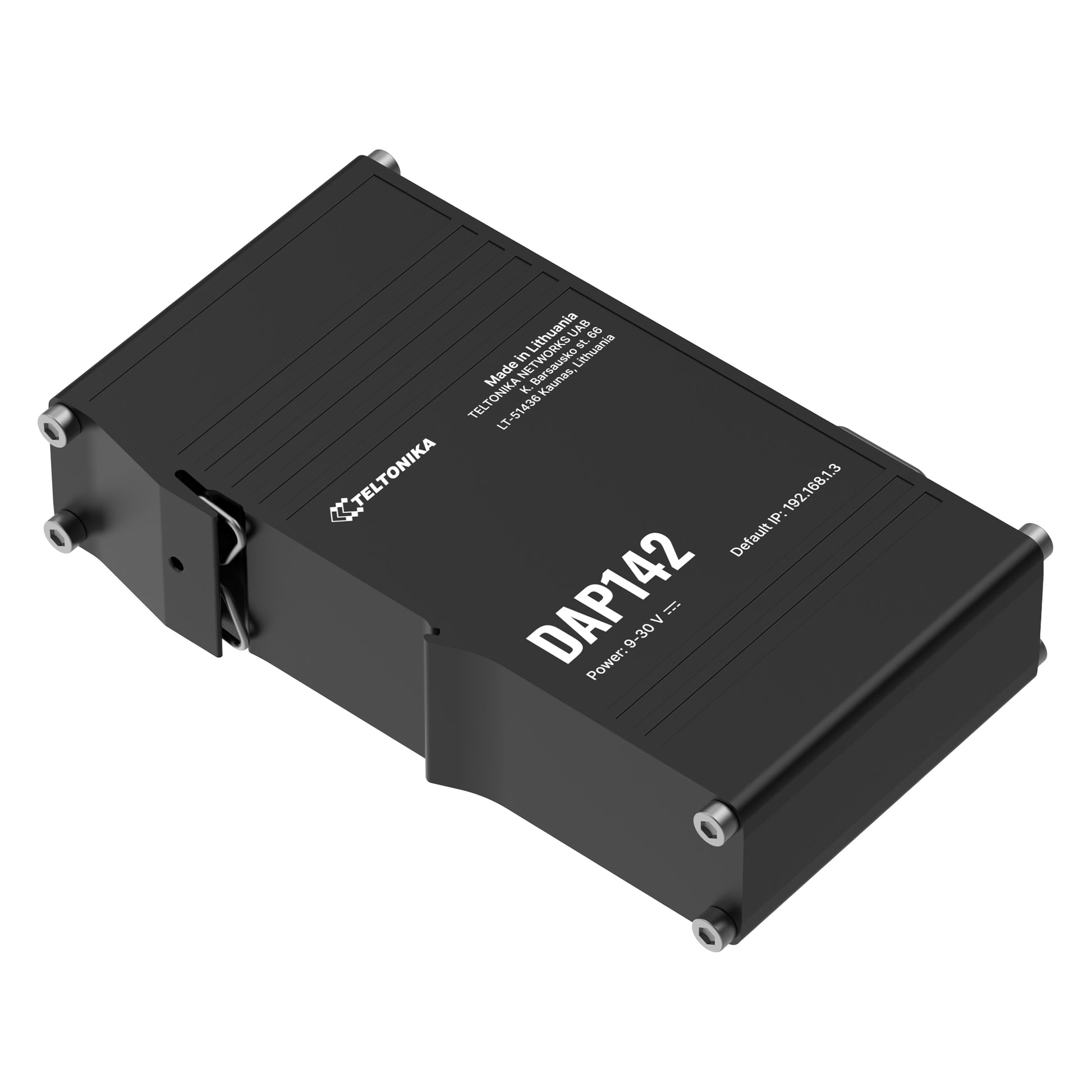

The Teltonika DAP142 is an industrial Wi-Fi 4 access point delivering up to 300 Mbps on the 2.4 GHz band. This variant combines an RS232 serial port with two RJ45 10/100 Ethernet ports, accepts passive PoE input and includes an integrated DIN rail bracket for cabinet and panel installations. The power supply is not included.

Wi-Fi mesh and fast roaming support make the DAP142 suited to extending wireless coverage across factory floors, depots and transport environments. Its aluminium housing, IP30 rating and -40 to 75 degrees Celsius operating range suit demanding industrial deployments, and the RS232 port lets legacy serial equipment be connected to the network.

Features

- Wi-Fi mesh
- Fast roaming
- Passive PoE input
- Integrated DIN rail bracket
- RS232 port for connecting industrial equipment
- 3-pin industrial power connector

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi 4 IEEE 802.11b/g/n, 2.4 GHz, up to 300 Mbps
- Wi-Fi frequency range 2412-2472 MHz, max 20 dBm transmit power
- 1 x RP-SMA antenna connector
- 2 x RJ45 10/100 Mbps Ethernet ports
- 1 x RS232 serial port (DB9)
- Passive PoE-in or 3-pin DC power connector, 9-30 V
- Up to 50 simultaneous wireless connections
- CPU 580 MHz, 128 MB RAM
- Operating temperature -40 to 75 \u00b0C
- Dimensions 113.1 x 25 x 68.6 mm, weight 149.2 g
- Aluminium housing, IP30
- Certifications: CE, CB, UKCA
- Power supply not included

FAQs

Q: Is a power supply included with the DAP142?
A: No. This variant ships without a power supply. It can be powered via passive PoE or through the 3-pin DC connector (9-30 V).

Q: What Wi-Fi standard and speed does the DAP142 support?
A: It supports Wi-Fi 4 (IEEE 802.11b/g/n) on the 2.4 GHz band with speeds up to 300 Mbps and up to 50 simultaneous wireless connections.

Q: Can the DAP142 be mounted on a DIN rail?
A: Yes. It has an integrated DIN rail bracket, making it straightforward to install in industrial cabinets and control panels.

Q: What is the RS232 port used for?
A: The DB9 RS232 serial port lets you connect industrial or legacy serial equipment to the access point and onto your network.

Q: Does the DAP142 support PoE switches?
A: It accepts passive PoE input, not 802.3af/at active PoE. Use a compatible passive PoE injector or supply, or power it via the 3-pin DC input.

Q: What operating conditions can it handle?
A: The DAP142 operates from -40 to 75 degrees Celsius in an IP30-rated aluminium housing, suiting indoor industrial environments.
