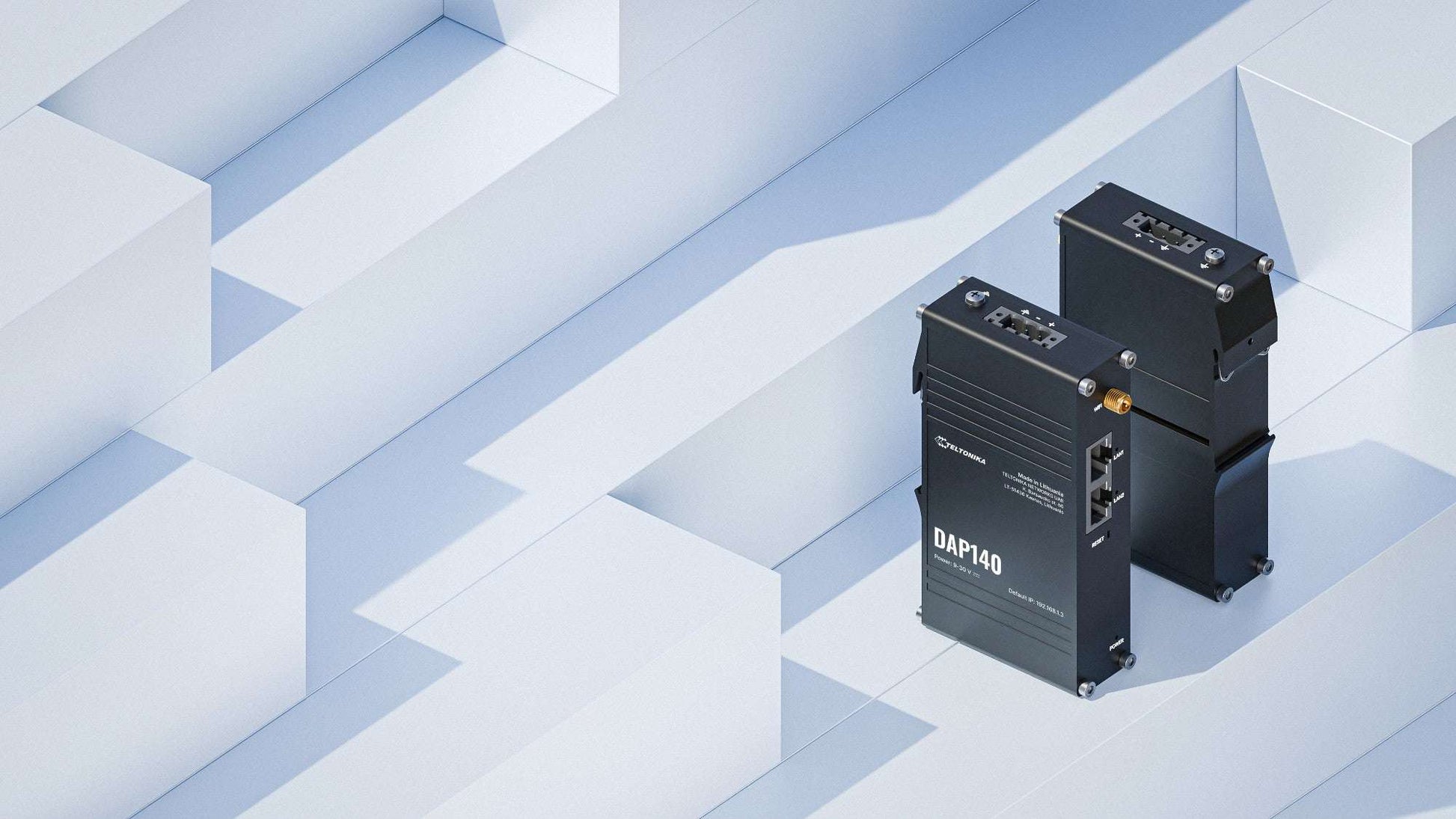

Teltonika DAP140000000 | DAP140 Industrial Wi-Fi 4 Access Point, 2x LAN, PoE-In, DIN

Name: Teltonika DAP140000000 | DAP140 Industrial Wi-Fi 4 Access Point, 2x LAN, PoE-In, DIN
Brand: Teltonika
SKU: DAP140000000
Price: 106.26 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:DAP140000000

In stock:16

$106.26 inc. GST

$96.60 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Teltonika DAP140 is an industrial 2.4 GHz Wi-Fi 4 access point with two 10/100 RJ45 LAN ports, passive PoE-in and an integrated DIN rail bracket. It delivers wireless speeds up to 300 Mbit/s for up to 50 simultaneous connections, making it a practical fit for factory floors, transport, utilities and other harsh deployments where a compact, rugged access point is needed. Power can be supplied via passive PoE-in on LAN2 or the 3-pin industrial power connector (9-30 VDC). The power supply is not included.

The DAP140 supports Access Point, Client (STA), Mesh (802.11s) and Multi AP modes, with fast roaming for moving clients. It runs RutOS with WebUI and CLI management, Layer 3 routing, a firewall with NAT and DMZ, and VPN support including OpenVPN, IPsec and WireGuard. The aluminium IP30 housing is rated for -40 to 75 C operation and can be DIN rail, wall or flat-surface mounted.

Features

- Wi-Fi 4 with Wi-Fi mesh (802.11s) and fast roaming
- Two 10/100 RJ45 LAN ports
- Passive PoE-in plus 3-pin industrial power connector for flexible power options
- Integrated DIN rail bracket for cabinet and panel installation
- Industrial-grade aluminium housing for harsh environments
- Layer 3 routing support including static, RIP, OSPF, BGP, EIGRP and PBR
- Firewall with NAT, DMZ and port forwarding, configurable via WebUI or CLI
- VPN support including OpenVPN, IPsec, WireGuard, GRE and L2TP

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi 4 (IEEE 802.11b/g/n), 2.4 GHz only, up to 300 Mbit/s
- Wireless modes: Access Point, Client (STA), Mesh (802.11s), Multi AP
- Up to 50 simultaneous wireless connections
- Antenna: 1 x 2.4 GHz 4.81 dBi external Wi-Fi antenna (SMA)
- Ethernet: 2 x 10/100 Mbps RJ45 LAN ports, auto MDI/MDIX
- Power input: passive PoE-in on LAN2 or 3-pin industrial power connector
- Input voltage range: 9-30 VDC, power consumption under 2 W max
- Wi-Fi security: WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, OWE, WPA2-EAP, WPA3-EAP
- Processor: MediaTek MIPS 24KEc, 580 MHz, 128 MB DDR2 RAM, 16 MB NOR flash
- Operating system: RutOS, managed via WebUI and CLI
- Housing: aluminium, IP30, DIN rail, wall or flat-surface mounting
- Dimensions: 113.1 x 25 x 68.6 mm, weight 150 g
- Operating temperature: -40 to 75 C, humidity 10% to 90% non-condensing
- Power supply not included

FAQs

Q: Does the DAP140 support 5 GHz Wi-Fi?
A: No. The DAP140 is a single-band Wi-Fi 4 (802.11b/g/n) access point operating on 2.4 GHz only, with speeds up to 300 Mbit/s.

Q: How is the DAP140 powered?
A: It accepts passive PoE-in on the LAN2 port or a 3-pin industrial power connector, with an input range of 9-30 VDC. The power supply is not included, so a compatible PSU or passive PoE injector must be ordered separately.

Q: Is the DAP140 compatible with standard 802.3af/at PoE switches?
A: The DAP140 uses passive PoE-in within a 9-30 VDC range rather than standard 802.3af/at negotiation, so it should be powered from a suitable passive PoE source or the DC connector.

Q: Can the DAP140 be mounted on a DIN rail?
A: Yes. It has an integrated DIN rail bracket and can also be wall mounted or placed on a flat surface.

Q: How many wireless clients can the DAP140 handle?
A: It supports up to 50 simultaneous wireless connections, and offers Wi-Fi mesh (802.11s) and fast roaming for moving clients.

Q: What operating conditions is the DAP140 rated for?
A: It is built in an aluminium IP30 housing and is rated for operation from -40 to 75 C, with 10% to 90% non-condensing humidity.
