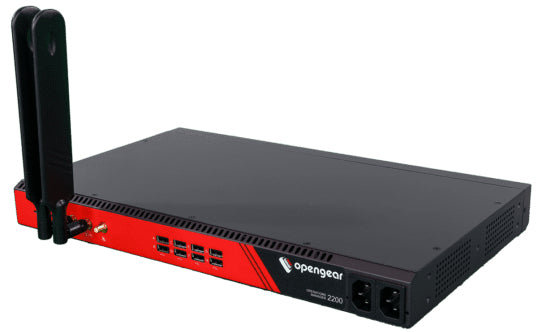

• Black and red opengear om2232-ddc 32-port operations manager with dual dc x86 tpm 2.0 and two external antennas
1 1

OPENGEAR

OPENGEAR OM2232-DDC | 32-Port Operations Manager, Dual DC, x86, TPM 2.0, 1 Yr Foundation Support

OPENGEAR OM2232-DDC | 32-Port Operations Manager, Dual DC, x86, TPM 2.0, 1 Yr Foundation Support

OM2232-DDC

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Opengear OM2232-DDC is a 1U rackmount Operations Manager delivering Smart Out-of-Band console server capabilities across 32 software-selectable RJ45 RS-232 ports (straight or rollover pinout). Built on an AMD GX-412TC x86 4-core platform with 8 GB DDR3 RAM and 64 GB SSD, it supports Docker containers and Python scripting for NetOps automation, while dual DC power inputs and TPM 2.0 secure boot make it well suited to data centre and high-density deployments. Managed via Opengear Lighthouse, it maintains a separate, secure management plane for resilient access even during network outages. This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-OM2200-1YR).

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-OM2200-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Features

- 32 software-selectable RJ45 RS-232 serial ports — straight or rollover pinout configurable per port in software
- Smart Out-of-Band management with automated port discovery and VLAN support for resilient access during network outages
- x86 AMD 4-core platform enables standard Docker container deployment for NetOps automation workloads
- Python runtime environment supports custom scripting and process automation directly on the device
- TPM 2.0 secure boot protects against firmware and configuration tampering
- Dual DC power inputs with screw-in terminals provide power redundancy for data centre and high-density environments
- Managed via Opengear Lighthouse Network Resilience Platform for centralised, scalable operations
- Separate, secure management plane maintains access and automation capability independent of production network state
- Includes 1 Year Opengear Foundation Support (OG-FNTS-OM2200-1YR) — 8x5 regional live assistance, next-business-day RMA in Australia, firmware updates, and 95% SLA compliance

Warranty

Opengear hardware carries a 5-year manufacturer's warranty from the date of original purchase, covering defects in materials and workmanship under normal use. In the event of a confirmed defect, Opengear will repair or replace the product at no additional charge. Firmware security patches and bug fixes are provided for the duration of the warranty period. Warranty does not cover damage resulting from accident, misuse, abuse, electrical stress, negligence, or unauthorised modification. Some products include 1 Year of Opengear Foundation Support, providing 8x5 regional live assistance via phone, email, and portal, next-business-day RMA replacement in Australia, and ongoing firmware and software updates — refer to the individual product listing for details

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial Ports: 32 x RJ45 RS-232 software-selectable straight or rollover pinout console management ports
- CPU: AMD GX-412TC 1.4 GHz 4-core 64-bit x86 processor
- RAM: 8 GB DDR3
- Storage: 64 GB SSD
- Network: 2 x 10/100/1000BASE-T Ethernet/SFP (1GbE) combo ports
- Power: Dual DC power supply with screw-in DC terminals
- Security: TPM 2.0 secure boot
- Form Factor: 1U rackmount
- Dimensions: 440 x 260 x 45 mm (W x D x H)
- Weight: 3.5 kg
- Cellular: None (non-LTE variant)
- Management: Opengear Lighthouse / Network Resilience Platform
- Automation: Docker container support; Python runtime environment
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-OM2200-1YR)

FAQs

Q: What is the difference between the OM2232-DDC and other OM2200 series models?
A: The OM2232-DDC is the dual DC power supply variant of the 32-port OM2200 Operations Manager. It is designed for data centres and environments where DC power feeds are preferred. Other variants in the OM2200 series may offer AC power, cellular (LTE) connectivity, or different port counts. All share the same x86 AMD platform, Docker/Python support, and TPM 2.0 secure boot.

Q: What does 'software-selectable' pinout mean on the serial ports?
A: Each of the 32 RJ45 RS-232 ports can be configured in software to use either straight or rollover pinout, eliminating the need for physical rollover cables or adapters when connecting to devices such as Cisco or Juniper equipment that expect different pinout conventions.

Q: Can I run custom scripts or containers on the OM2232-DDC?
A: Yes. The AMD GX-412TC x86 platform supports standard Docker containers and includes a Python runtime environment, allowing network engineers to deploy NetOps automation, monitoring agents, or custom scripts directly on the device without additional hardware.

Q: What does the included 1 Year Opengear Foundation Support (OG-FNTS-OM2200-1YR) cover?
A: Foundation Support provides 8x5 regional business hours assistance (8 AM–5 PM Mon–Fri) across APAC, Americas, and EMEA via phone, email, and portal. Initial response times are up to 15 minutes via portal and 30 minutes via email. Priority 1 (Critical) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the term, with a 95% SLA compliance target.

Q: Can I extend Foundation Support beyond 1 year?
A: Yes. Foundation Support is available in 1, 3, and 5-year terms (up to 7 years maximum coverage). Co-terming with Opengear Lighthouse subscriptions and hardware warranties is also supported, making it straightforward to align renewal dates across your Opengear estate.

Q: Can I purchase the OM2232-DDC in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is a local Australian source for enterprise-grade networking solutions, including the full Opengear OM2200 series. Purchasing locally means faster fulfilment, local pre-sales support, and next-business-day RMA processing under Foundation Support for Australian customers.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
