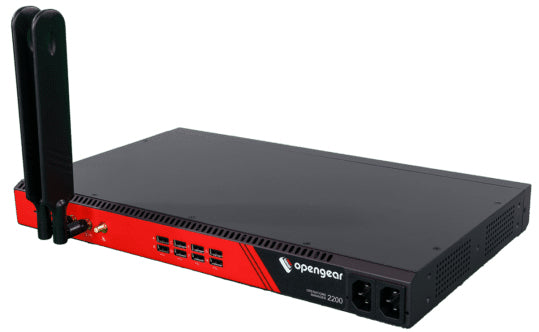

• Black and red opengear n2000 network appliance with two external antennas for serial console server use
1 1

OPENGEAR

OPENGEAR OM2232 | 32-Port Selectable Serial Console Server, x86 Quad-Core, 1 Yr Foundation Support

OPENGEAR OM2232 | 32-Port Selectable Serial Console Server, x86 Quad-Core, 1 Yr Foundation Support

OM2232

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Opengear OM2232 is a rack-mount out-of-band management console server featuring 32 selectable serial ports and an x86 quad-core processor, designed for enterprise and data centre environments requiring resilient, always-on access to network infrastructure. Running Opengear's Linux-based firmware, the OM2232 supports RS-232/422/485 selectable serial signalling, enabling connectivity to a wide range of routers, switches, servers, and industrial devices.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-OM2200-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Features

- 32 selectable serial ports with per-port RS-232/422/485 signalling — no hardware adapters required
- x86 quad-core processor for responsive out-of-band management under high session loads
- Always-on out-of-band access ensures connectivity to critical infrastructure even during network outages
- Linux-based Opengear firmware with support for SSH, TLS, IPv4/IPv6, and FIPS 140-2 security standards
- Integrates with Opengear Lighthouse for centralised, multi-site NetOps console management
- Dual Gigabit Ethernet ports for separated management and production network connectivity
- Rack-mount 1U form factor suitable for standard data centre and enterprise deployments
- Includes 1 Year Opengear Foundation Support (OG-FNTS-OM2200-1YR): 8x5 regional support, next-business-day RMA in Australia, firmware updates, and 95% SLA compliance

Warranty

Opengear hardware carries a 5-year manufacturer's warranty from the date of original purchase, covering defects in materials and workmanship under normal use. In the event of a confirmed defect, Opengear will repair or replace the product at no additional charge. Firmware security patches and bug fixes are provided for the duration of the warranty period. Warranty does not cover damage resulting from accident, misuse, abuse, electrical stress, negligence, or unauthorised modification. Some products include 1 Year of Opengear Foundation Support, providing 8x5 regional live assistance via phone, email, and portal, next-business-day RMA replacement in Australia, and ongoing firmware and software updates — refer to the individual product listing for details

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: OM2232
- Serial Ports: 32 x selectable (RS-232/422/485) serial ports
- Processor: x86 quad-core CPU
- Series: Opengear Operations Manager 2200
- Form Factor: Rack-mount (1U)
- Management: Out-of-band (OOB) console management
- OS: Linux-based Opengear firmware
- Network Interfaces: Dual Gigabit Ethernet (management + production)
- USB Ports: USB for local console and storage
- Cellular Failover: Optional (model-dependent)
- Power: Dual power supply support (model-dependent)
- Standards: FIPS 140-2, IPv4/IPv6, SSH, TLS
- Integration: Compatible with Opengear Lighthouse centralised management
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-OM2200-1YR)

FAQs

Q: What does the OM2232 do?
A: The OM2232 is an out-of-band management console server that provides secure, always-on access to the serial consoles of routers, switches, servers, and other network devices — even when the primary network is down. Its 32 selectable serial ports support RS-232, RS-422, and RS-485 signalling, making it suitable for both IT and industrial environments.

Q: What is included in the 1 Year Foundation Support bundled with this listing?
A: Foundation Support (OG-FNTS-OM2200-1YR) provides 8x5 regional technical assistance across APAC, Americas, and EMEA via phone, email, and portal. Initial response is up to 15 minutes via portal and 30 minutes via email. Priority 1 (critical/DOA) issues receive next-business-day RMA replacement in Australia (within 4 days internationally). Firmware and software updates are included, with a 95% SLA compliance target.

Q: What does 'selectable serial ports' mean on the OM2232?
A: Selectable serial ports means each of the 32 ports can be individually configured for RS-232, RS-422, or RS-485 signalling via software, without requiring physical adapters or hardware changes. This flexibility allows the OM2232 to connect to a diverse range of devices across IT and industrial use cases.

Q: Can the OM2232 be managed centrally?
A: Yes. The OM2232 integrates with Opengear Lighthouse, a centralised NetOps console that provides a single pane of glass for managing multiple Opengear appliances across distributed sites. Lighthouse also supports co-terming with Foundation Support subscriptions.

Q: Can Foundation Support be extended beyond 1 year?
A: Yes. Opengear Foundation Support is available in 1, 3, and 5-year terms, with a maximum of 7 years of cumulative coverage. Co-terming with Lighthouse subscriptions and other hardware warranties is also supported. Contact IP Trading for multi-year support pricing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
