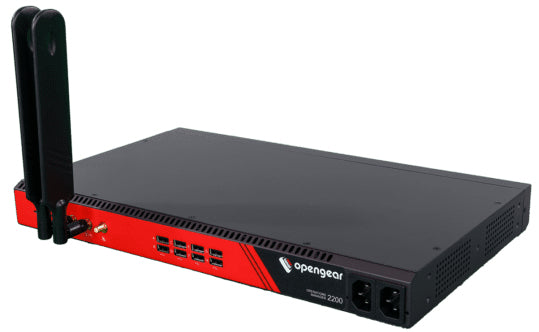

• Black and red opengear n2000 network appliance with two external antennas for 24-port serial console server use
1 1

OPENGEAR

OPENGEAR OM2224-24E-DDC-L-LSP | Operations Manager 24-Port Serial Console Server, 24x 1GbE Switch, x86 4-Core, 4G LTE-A Pro, Dual DC, 1 Yr Foundation Support

OPENGEAR OM2224-24E-DDC-L-LSP | Operations Manager 24-Port Serial Console Server, 24x 1GbE Switch, x86 4-Core, 4G LTE-A Pro, Dual DC, 1 Yr Foundation Support

OM2224-24E-DDC-L-LSP

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Opengear OM2224-24E-DDC-L-LSP is an enterprise-grade console server and network management appliance delivering 24 selectable serial ports, a 24-port 1GbE managed switch, and a powerful x86 quad-core CPU with 8 GB RAM and 64 GB SSD — all in a single 1U rackmount unit. Built-in 4G LTE-A Pro Global connectivity provides resilient out-of-band access, while dual DC power inputs, TPM 2.0 security, Docker container support, and Lighthouse Service Portal integration make it ideal for large-scale, security-conscious network operations. This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-OM2200-1YR), bundled together with the hardware as one SKU.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-OM2200-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Features

- 24 selectable RS-232/422/485 serial ports for universal device connectivity
- 24-port integrated 1GbE managed switch eliminates the need for a separate switch
- Powerful x86 quad-core CPU with 8 GB RAM and 64 GB SSD for local processing and scripting
- 4G LTE-A Pro Global cellular modem for resilient out-of-band failover connectivity
- Dual DC power inputs for high-availability power in data centre and industrial environments
- TPM 2.0 hardware security module for trusted boot and secure credential storage
- Docker container support enables custom application deployment at the network edge
- Lighthouse Service Portal (LSP) ready for centralised zero-touch provisioning and management
- 1 Year Opengear Foundation Support included — 8x5 regional live assistance, next-business-day RMA in Australia, and firmware updates throughout the term

Warranty

Opengear hardware carries a 5-year manufacturer's warranty from the date of original purchase, covering defects in materials and workmanship under normal use. In the event of a confirmed defect, Opengear will repair or replace the product at no additional charge. Firmware security patches and bug fixes are provided for the duration of the warranty period. Warranty does not cover damage resulting from accident, misuse, abuse, electrical stress, negligence, or unauthorised modification. Some products include 1 Year of Opengear Foundation Support, providing 8x5 regional live assistance via phone, email, and portal, next-business-day RMA replacement in Australia, and ongoing firmware and software updates — refer to the individual product listing for details

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial Ports: 24 selectable serial ports (RS-232/RS-422/RS-485)
- Integrated Switch: 24-port 1GbE managed switch
- Processor: x86 quad-core (4-core) CPU
- RAM: 8 GB
- Storage: 64 GB SSD
- Network Uplink: 1GbE with SFP combo port
- Cellular: 4G LTE-A Pro Global (integrated modem)
- Power Input: Dual DC power inputs (DDC)
- Security: TPM 2.0
- Container Support: Docker
- Management: Lighthouse Service Portal enabled (LSP)
- Form Factor: 1U rackmount
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-OM2200-1YR)

FAQs

Q: What does '24 selectable serial ports' mean on the OM2224-24E?
A: Each of the 24 serial ports can be individually configured as RS-232, RS-422, or RS-485, giving you maximum flexibility to connect a wide variety of network devices, industrial equipment, and legacy serial hardware from a single appliance.

Q: What is the purpose of the integrated 24-port 1GbE switch?
A: The built-in 24-port 1GbE managed switch allows direct, local-network connectivity for the devices you are managing, eliminating the need for a separate switch in your out-of-band management deployment and simplifying your rack layout.

Q: What is the 4G LTE-A Pro Global modem used for?
A: The integrated 4G LTE-A Pro Global modem provides a resilient out-of-band (OOB) cellular backup path. If your primary network goes down, the console server automatically fails over to the cellular link so you retain remote management access to all connected devices.

Q: What does the Lighthouse Service Portal (LSP) integration provide?
A: Lighthouse Service Portal integration allows this unit to be centrally managed and orchestrated by Opengear's Lighthouse platform, enabling zero-touch provisioning, bulk configuration, monitoring, and remote access management across large distributed deployments.

Q: What is covered by the included 1 Year Opengear Foundation Support?
A: Foundation Support (OG-FNTS-OM2200-1YR) covers 8x5 regional technical assistance via phone, email, and portal across APAC, Americas, and EMEA. Initial response times are up to 15 minutes via portal and 30 minutes via email. Priority 1 (critical/DOA) issues receive next-business-day RMA replacement in Australia. Firmware and software updates are included, and the service targets 95% SLA compliance.

Q: Can I buy the OM2224-24E-DDC-L-LSP in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an authorised Australian B2B IT hardware reseller supplying Opengear products. We ship across Australia and can assist with procurement, quotes, and volume orders — contact us or shop directly on the website.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
