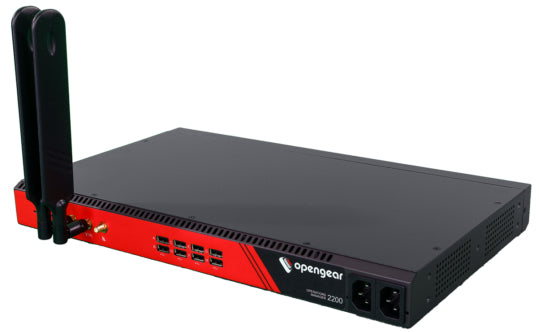

• Black and red opengear s2000 network appliance with two external antennas for console server management and connectivity
1 1

OPENGEAR

OPENGEAR OM2224-24E-10G-L-1TB-LSP | Operations Manager 24-Port Serial Console Server, 24x 1GbE, x86 4-Core, 8G RAM, 1TB SSD, 10GbE SFP+, 4G LTE-A Pro, Lighthouse Portal, 1 Yr Foundation Support

OPENGEAR OM2224-24E-10G-L-1TB-LSP | Operations Manager 24-Port Serial Console Server, 24x 1GbE, x86 4-Core, 8G RAM, 1TB SSD, 10GbE SFP+, 4G LTE-A Pro, Lighthouse Portal, 1 Yr Foundation Support

OM2224-24E-10G-L-1TB-LSP

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Opengear OM2224-24E-10G-L-1TB-LSP is an enterprise-grade console server delivering 24 selectable serial ports alongside a built-in 24-port 1GbE switch, purpose-built for out-of-band management of critical network infrastructure. Powered by an x86 quad-core CPU with 8 GB RAM and a 1 TB SSD, it supports Docker containerisation for running custom applications at the edge, while hardware-backed security is ensured via TPM 2.0. Dual AC (C14) power inputs provide redundant connectivity, and the integrated 4G LTE-A Pro global modem delivers resilient cellular failover. Lighthouse Service Portal (LSP) is enabled, providing centralised fleet management, and 10GbE SFP+ uplinks ensure high-throughput primary network integration.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-OM2200-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Features

- 24 selectable serial ports (RS-232/422/485) for comprehensive out-of-band console access to network, server, and power devices
- Built-in 24-port 1GbE managed switch eliminates the need for a separate aggregation switch in the management plane
- Dual 10GbE SFP+ uplinks deliver high-throughput primary network integration for large-scale deployments
- x86 quad-core CPU with 8 GB RAM and 1 TB SSD provides ample compute and storage for Docker-based edge applications
- Integrated 4G LTE-A Pro global modem ensures resilient cellular out-of-band failover when primary WAN is unavailable
- TPM 2.0 hardware security module protects cryptographic keys and ensures platform integrity
- Lighthouse Service Portal (LSP) enabled — centralised zero-touch provisioning, fleet management, and policy orchestration across distributed sites
- Dual AC (C14) redundant power inputs maximise uptime in mission-critical environments
- 1 Year Opengear Foundation Support included (OG-FNTS-OM2200-1YR) — 8x5 regional live assistance, next-business-day RMA in Australia, and firmware updates throughout the support term

Warranty

Opengear hardware carries a 5-year manufacturer's warranty from the date of original purchase, covering defects in materials and workmanship under normal use. In the event of a confirmed defect, Opengear will repair or replace the product at no additional charge. Firmware security patches and bug fixes are provided for the duration of the warranty period. Warranty does not cover damage resulting from accident, misuse, abuse, electrical stress, negligence, or unauthorised modification. Some products include 1 Year of Opengear Foundation Support, providing 8x5 regional live assistance via phone, email, and portal, next-business-day RMA replacement in Australia, and ongoing firmware and software updates — refer to the individual product listing for details

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial Ports: 24 x selectable serial (RS-232/422/485)
- Integrated Switch: 24 x 1GbE RJ45 managed switch ports
- Uplink: 2 x 10GbE SFP+ ports
- Processor: x86 quad-core CPU
- RAM: 8 GB
- Storage: 1 TB SSD
- Cellular: 4G LTE-A Pro global dual-SIM modem
- Security: TPM 2.0 hardware trusted platform module
- Containerisation: Docker support for edge application deployment
- Management: Lighthouse Service Portal (LSP) enabled
- Power: Dual AC input, IEC C14 connectors
- Form Factor: 1U rack-mount
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-OM2200-1YR) — 8x5 regional, next-business-day RMA (AU), firmware updates included

FAQs

Q: What is included in this listing?
A: This listing bundles the Opengear OM2224-24E-10G-L-1TB-LSP console server hardware together with 1 Year of Opengear Foundation Support (OG-FNTS-OM2200-1YR) as a single SKU. Both are purchased together.

Q: What does the 1 Year Opengear Foundation Support cover?
A: Foundation Support provides 8x5 regional business-hours assistance (8 AM–5 PM Mon–Fri) across APAC, Americas, and EMEA via phone, email, and portal. Initial response is up to 15 minutes via portal and 30 minutes via email. Priority 1 (Critical) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Firmware and software updates are included throughout the term, with a 95% SLA compliance target.

Q: What are the serial port capabilities on the OM2224-24E-10G-L-1TB-LSP?
A: The unit features 24 selectable serial ports supporting RS-232, RS-422, and RS-485 signalling, making it suitable for a wide range of console server and device management applications.

Q: Does this unit support out-of-band management over cellular?
A: Yes. The OM2224-24E-10G-L-1TB-LSP includes an integrated 4G LTE-A Pro global dual-SIM modem, providing resilient out-of-band cellular connectivity when primary network paths are unavailable.

Q: Can I run custom applications on this device?
A: Yes. The unit supports Docker containerisation, allowing operators to deploy and run custom edge applications alongside the core out-of-band management functions, leveraging the onboard x86 quad-core CPU and 1 TB SSD.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
