OPENGEAR OM1308-8E | Operations Manager 8-Port RS232 Console Server & 8-Port GbE Switch, 1 Yr Foundation Support

Name: OPENGEAR OM1308-8E | Operations Manager 8-Port RS232 Console Server & 8-Port GbE Switch, 1 Yr Foundation Support
Brand: OPENGEAR
SKU: OM1308-8E
Price: 4573.11 AUD
Availability: BackOrder

SKU:OM1308-8E

Stock Status: Enquire

$4,573.11 inc. GST

$4,157.37 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

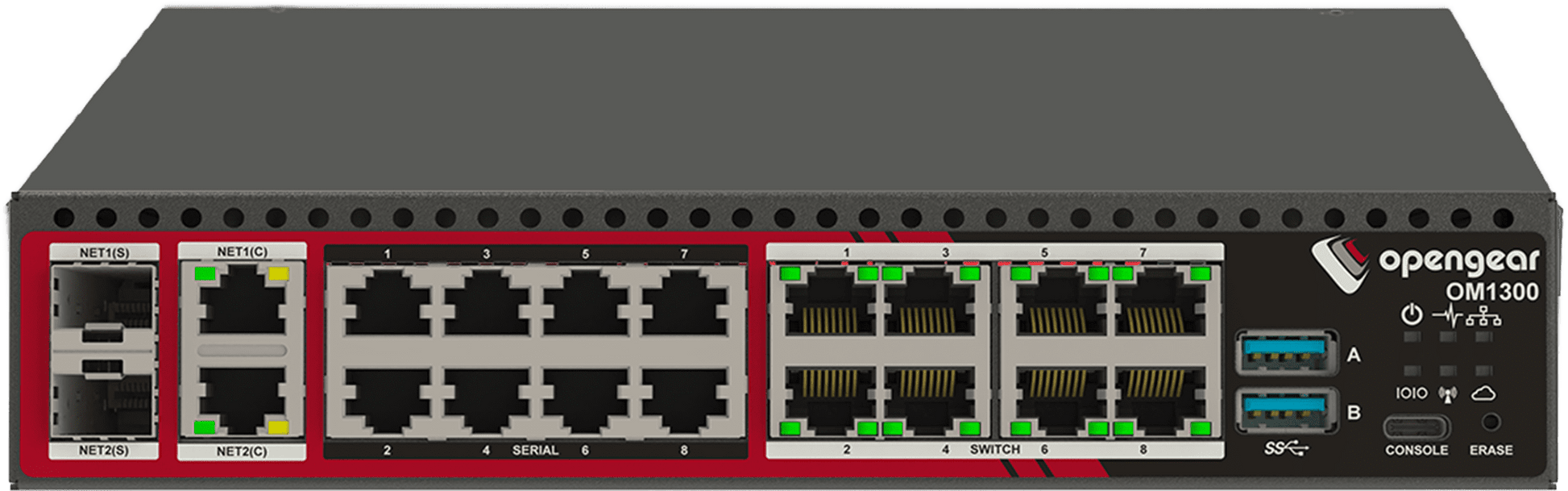

The Opengear OM1308-8E is a compact, fanless Operations Manager combining 8x RS232 RJ45 serial console ports (X1/X2 pinout software-selectable) with an integrated 8-port Gigabit Ethernet switch and 2x 1GbE/SFP combo uplink ports — all in a single 1U appliance purpose-built for secure branch, retail, and remote edge deployments. Powered by a quad-core ARM Cortex-A53 at 1.6 GHz with 4 GB LPDDR4 RAM, 32 GB flash, TPM 2.0, and Docker/Python support, it integrates with Opengear Lighthouse for Smart Out-of-Band (Smart OOB) access, edge automation, and network resilience. This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-OM1300-1YR), sold together with the hardware as a bundle.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-OM1300-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Features

- Smart Out-of-Band (Smart OOB) access keeps remote management available even during WAN outages
- Integrated 8-port GbE switch eliminates the need for a separate switch at edge and branch sites
- Software-selectable X1/X2 RS232 pinout provides broad compatibility across network and serial devices
- Fanless, compact 1U design engineered for branch, retail, and remote environments
- Lighthouse Management Software integration enables centralised, at-scale operations across distributed sites
- Docker and Python on-device support enables local automated remediation without upstream orchestration
- Hardware crypto acceleration delivers up to 2.91x IPsec performance vs. OM1200/2200 series
- TPM 2.0 security chip provides hardware-level security and trusted boot
- Up to 1.57x Python performance improvement vs. previous-generation OM1200/2200 series
- 1 Year Opengear Foundation Support included — 8x5 regional assistance, next-business-day RMA in Australia, firmware updates, and 95% SLA compliance

Warranty

Opengear hardware carries a 5-year manufacturer's warranty from the date of original purchase, covering defects in materials and workmanship under normal use. In the event of a confirmed defect, Opengear will repair or replace the product at no additional charge. Firmware security patches and bug fixes are provided for the duration of the warranty period. Warranty does not cover damage resulting from accident, misuse, abuse, electrical stress, negligence, or unauthorised modification. Some products include 1 Year of Opengear Foundation Support, providing 8x5 regional live assistance via phone, email, and portal, next-business-day RMA replacement in Australia, and ongoing firmware and software updates — refer to the individual product listing for details

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial Ports: 8x RS232 RJ45 — X1 or X2 pinout software-selectable
- Integrated Switch: 8x 1GbE switched Ethernet ports
- Uplink Ports: 2x 1GbE/SFP combo
- USB: 2x USB 3.0
- CPU: ARM Cortex-A53 Quad-core, 1.6 GHz
- RAM: 4 GB LPDDR4
- Flash Storage: 32 GB
- Security: TPM 2.0 hardware security chip
- Container Support: Docker and Python on-device
- Power: Barrel-threaded DC power jacks; includes 450047 Power Brick and C14 power cable
- Form Factor: Compact, fanless, rack-mountable (1U)
- Management: Lighthouse Service Portal enabled
- Cellular: Not integrated (cellular variant: OM1308-8E-C)
- Bundled Support: 1 Year Opengear Foundation Support — OG-FNTS-OM1300-1YR

FAQs

Q: What is included with the OM1308-8E when I purchase it from IP Trading?
A: This listing includes the Opengear OM1308-8E hardware appliance, a 450047 Power Brick, a C14 power cable, and 1 Year of Opengear Foundation Support (OG-FNTS-OM1300-1YR) — all sold together as a single bundle.

Q: What does Opengear Foundation Support cover?
A: Foundation Support provides 8x5 regional technical assistance (8 AM–5 PM Mon–Fri) across APAC, Americas, and EMEA via phone, email, and portal. Initial response times are up to 15 minutes via portal and 30 minutes via email. Priority 1 (Critical) issues — such as severe outages or DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Q: Can I extend Foundation Support beyond 1 year?
A: Yes. Foundation Support is available in 1, 3, and 5-year terms, up to a maximum of 7 years of coverage. Co-terming with Lighthouse subscriptions and hardware warranties is also supported. Contact IP Trading to discuss multi-year options.

Q: Does the OM1308-8E have an integrated cellular modem?
A: No. The OM1308-8E does not include an integrated cellular modem. If you require built-in cellular connectivity for out-of-band failover, consider the OM1308-8E-C variant. Contact IP Trading for availability.

Q: How does the integrated Ethernet switch benefit edge deployments?
A: The built-in 8-port Gigabit Ethernet switch eliminates the need for a separate switching appliance at branch, retail, or remote sites, reducing hardware costs, rack space, and cabling complexity while simplifying management through a single device.

Q: Can I purchase the Opengear OM1308-8E in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an authorised reseller of Opengear products in Australia. We offer competitive pricing, local support, and fast fulfilment. Contact us for volume pricing, project quotes, or configuration advice.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
