OPENGEAR OM1308-8E-LSP | Operations Manager, 8x RS232, 8-Port GbE Switch, LSP Enabled, 1 Yr Foundation Support

Name: OPENGEAR OM1308-8E-LSP | Operations Manager, 8x RS232, 8-Port GbE Switch, LSP Enabled, 1 Yr Foundation Support
Brand: OPENGEAR
SKU: OM1308-8E-LSP
Price: 4573.11 AUD
Availability: BackOrder

SKU:OM1308-8E-LSP

Stock Status: Enquire

$4,573.11 inc. GST

$4,157.37 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

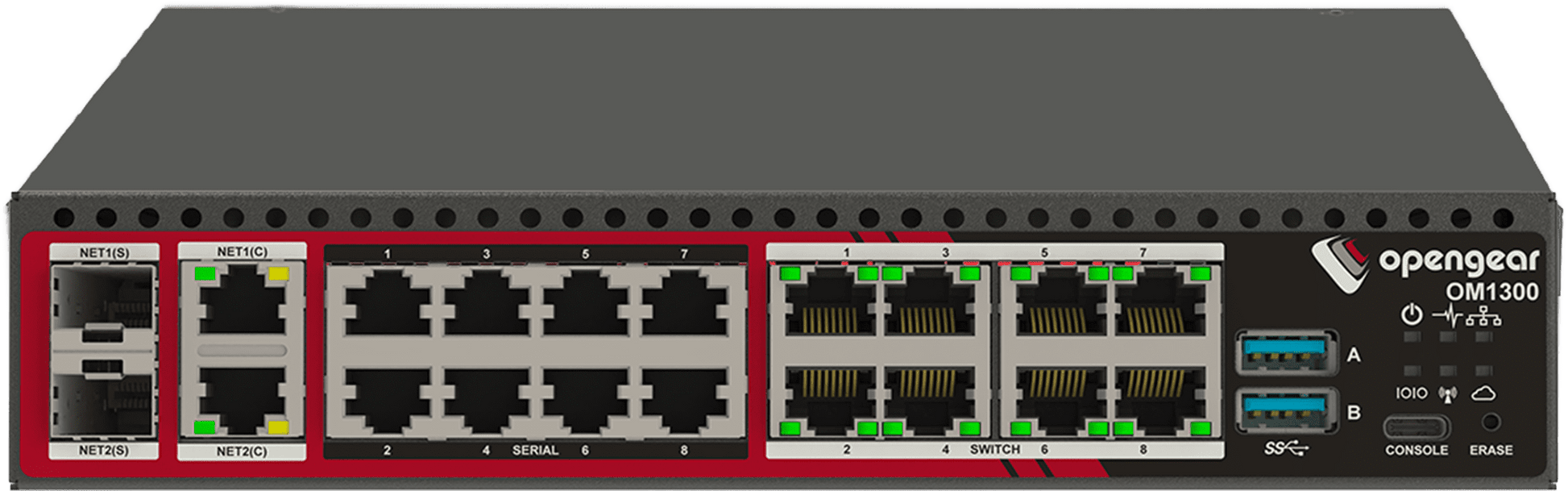

The Opengear OM1308-8E-LSP is a compact, fanless Operations Manager designed for secure out-of-band management at edge, branch, and remote sites. It delivers 8x RS232 RJ45 serial console ports (X1/X2 software-selectable pinout), an integrated 8-port Gigabit Ethernet switch, 2x 1GbE/SFP combo uplinks, and Lighthouse Service Portal (LSP) enablement for centralised cloud-based remote access and automation. Powered by an ARM Cortex-A53 Quad-core 1.6 GHz processor with 4 GB LPDDR4 RAM, 32 GB flash, TPM 2.0 hardware security, Docker and Python support, and hardware crypto acceleration, it provides reliable Smart Out-of-Band access even during WAN outages.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-OM1300-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Features

- Smart Out-of-Band (OOB) access — maintains secure connectivity to critical infrastructure even during WAN outages
- Integrated 8-port Gigabit Ethernet switch — eliminates the need for a separate switch at edge or branch sites
- Lighthouse Service Portal (LSP) enabled — centralised cloud-based remote access, monitoring, and automation across distributed sites
- Docker and Python support — enables on-device edge automation and local automated remediation without external compute
- TPM 2.0 hardware security — provides secure boot, remote attestation, and hardware-accelerated crypto for fast VPN sessions
- Up to 2.91x IPsec and 1.57x Python performance vs. OM1200/OM2200 series
- Fanless, compact, rack-mountable form factor — purpose-built for branch, retail, remote, and industrial environments
- X1/X2 software-selectable pinout on all 8 RS232 ports — broad device compatibility without physical adapters
- Automated port discovery and VLAN support for simplified deployment
- 1 Year Opengear Foundation Support included — 8x5 live regional assistance, next-business-day RMA (Australia), and firmware updates

Warranty

Opengear hardware carries a 5-year manufacturer's warranty from the date of original purchase, covering defects in materials and workmanship under normal use. In the event of a confirmed defect, Opengear will repair or replace the product at no additional charge. Firmware security patches and bug fixes are provided for the duration of the warranty period. Warranty does not cover damage resulting from accident, misuse, abuse, electrical stress, negligence, or unauthorised modification. Some products include 1 Year of Opengear Foundation Support, providing 8x5 regional live assistance via phone, email, and portal, next-business-day RMA replacement in Australia, and ongoing firmware and software updates — refer to the individual product listing for details

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Part Number: OM1308-8E-LSP
- Serial Ports: 8x RS232 RJ45 — X1 or X2 software-selectable pinout
- Ethernet Switch: 8x 1GbE switched ports
- Uplink Ports: 2x 1GbE/SFP combo ports
- USB: 2x USB 3.0
- Processor: ARM Cortex-A53 Quad-core 1.6 GHz
- RAM: 4 GB LPDDR4 SDRAM
- Flash Storage: 32 GB
- Security: TPM 2.0 (secure boot, remote attestation, hardware crypto acceleration)
- Container Support: Docker
- Python Support: Yes (up to 1.57x performance vs. OM1200/OM2200 series)
- IPsec Performance: Up to 2.91x vs. OM1200/OM2200 series
- Power: Barrel threaded DC jacks; includes 450047 Power Brick and C14 Power cable
- Form Factor: Compact, fanless, rack-mountable
- Lighthouse Service Portal: Enabled (LSP)
- Shipping Weight: Approx. 2.7 kg (5.95 lbs)
- Standards: AS/NZS CISPR22:2009+A1:2010, CISPR 22:2008
- Bundled Support: 1 Year Opengear Foundation Support — SKU OG-FNTS-OM1300-1YR

FAQs

Q: What does the OM1308-8E-LSP do differently from a standard console server?
A: Beyond serial console access, the OM1308-8E-LSP integrates an 8-port Gigabit Ethernet switch, Smart Out-of-Band access that maintains connectivity during WAN outages, Lighthouse Service Portal enablement for centralised cloud management, and on-device Docker/Python automation — eliminating the need for a separate switch at edge or branch sites.

Q: What is the X1/X2 software-selectable pinout on the RS232 ports?
A: The 8 RS232 RJ45 serial ports support both X1 and X2 pinout configurations, selectable via software. This allows the OM1308-8E-LSP to connect to a wide variety of vendor equipment without requiring physical cable adapters.

Q: What does 1 Year Opengear Foundation Support (OG-FNTS-OM1300-1YR) include?
A: Foundation Support provides 8x5 regional live technical assistance (8 AM–5 PM Mon–Fri) across APAC, Americas, and EMEA via phone, email, and the support portal. Initial response is up to 15 minutes via portal and up to 30 minutes via email. Priority 1 (Critical) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Q: Is Foundation Support mandatory, and can I extend it beyond one year?
A: Yes — a minimum of 1 year of Foundation Support is required with every new Opengear appliance, and this listing bundles the first year together with the hardware. Support can be extended for up to 7 years total, available in 1-, 3-, and 5-year terms. Co-terming with Lighthouse subscriptions is also available.

Q: What is Lighthouse Service Portal (LSP) enablement?
A: LSP (Lighthouse Service Portal) enablement means this unit is pre-configured to connect to Opengear's Lighthouse centralised management platform, allowing you to remotely access, monitor, and automate thousands of nodes across distributed sites from a single cloud-based console.

Q: Can I purchase the OM1308-8E-LSP in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an authorised Australian B2B reseller of Opengear hardware. You receive authentic, warranty-backed product with local sales and support. Orders can be placed directly via the website or by contacting the IP Trading team.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
