OPENGEAR

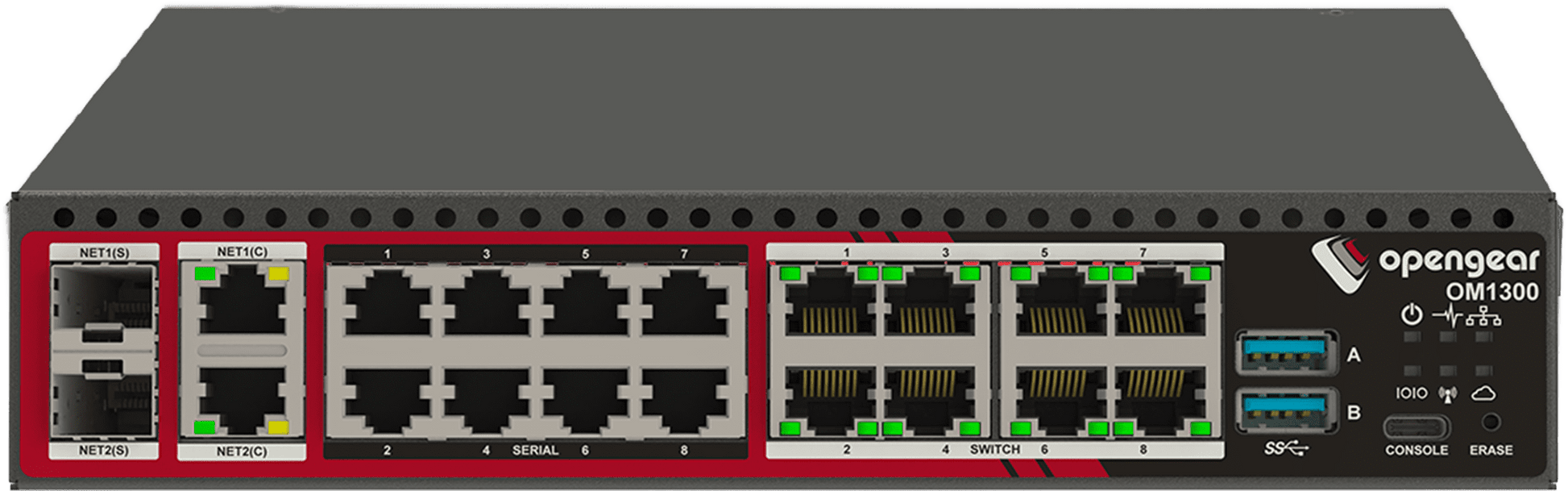

OPENGEAR OM1308-8E-C-LSP | 8-Port RS232 Console Server, 5G Modem, 8-Port GbE Switch, LSP, 1 Yr Foundation Support

OPENGEAR OM1308-8E-C-LSP | 8-Port RS232 Console Server, 5G Modem, 8-Port GbE Switch, LSP, 1 Yr Foundation Support

OM1308-8E-C-LSP

Stock Status: Enquire

$5,611.72 inc. GST
$5,101.56 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Opengear OM1308-8E-C-LSP Operations Manager is a compact, purpose-built out-of-band management appliance delivering 8x RS232 (X1/X2 software-selectable) serial console ports, an integrated 8-port 1GbE switch, 2x 1GbE/SFP combo uplinks, a 5G cellular modem with dual nano-SIM slots, and Lighthouse Service Portal (LSP) zero-touch enrollment — all powered by a 4-core ARM Cortex-A53 at 1.6GHz with 4GB RAM, 32GB flash, TPM 2.0, and Docker support.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-OM1300-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Features

- Smart Out-of-Band (OOB) access keeps management available during primary network outages
- Integrated 8-port 1GbE switch eliminates the need for a separate external switch at remote sites
- 5G cellular modem with dual nano-SIM provides resilient failover WAN connectivity
- Zero-touch provisioning via Lighthouse Service Portal (LSP) for rapid, scalable deployments
- X1/X2 software-selectable RS232 serial pinout ensures broad compatibility with console devices
- TPM 2.0 hardware security module enables secure boot, key storage, and device attestation
- Docker and Python support enables edge automation, scripting, and custom application deployment
- Hardware crypto acceleration delivers fast, secure VPN sessions
- Centrally managed via Opengear Lighthouse for unified visibility across distributed infrastructure
- 1 Year Opengear Foundation Support included — 8x5 live assistance, next-business-day RMA in Australia, and firmware updates

Warranty

Opengear hardware carries a 5-year manufacturer's warranty from the date of original purchase, covering defects in materials and workmanship under normal use. In the event of a confirmed defect, Opengear will repair or replace the product at no additional charge. Firmware security patches and bug fixes are provided for the duration of the warranty period. Warranty does not cover damage resulting from accident, misuse, abuse, electrical stress, negligence, or unauthorised modification. Some products include 1 Year of Opengear Foundation Support, providing 8x5 regional live assistance via phone, email, and portal, next-business-day RMA replacement in Australia, and ongoing firmware and software updates — refer to the individual product listing for details

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial Ports: 8x RS232 RJ45 (X1 or X2 software-selectable pinout)
- Switched Ethernet: 8x 1GbE integrated switch ports
- Uplink Ports: 2x 1GbE/SFP combo
- USB: 2x USB 3.0
- Processor: ARM Cortex-A53, 1.6GHz, 4-core
- RAM: 4GB LPDDR4
- Storage: 32GB Flash
- Cellular Modem: 5G with 2x 4FF nano SIM slots
- Security: TPM 2.0 hardware security module
- Containerisation: Docker support
- Power: Barrel threaded DC jacks; includes 450047 Power Brick and C14 power cable
- Zero-Touch Provisioning: Lighthouse Service Portal (LSP) enabled
- Form Factor: Compact / rack-mountable (1U)
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-OM1300-1YR)

FAQs

Q: What does the bundled Opengear Foundation Support (OG-FNTS-OM1300-1YR) include?
A: Foundation Support provides 8x5 regional technical assistance (8 AM–5 PM Mon–Fri) across APAC, Americas, and EMEA via phone, email, and portal. Initial response times are up to 15 minutes via portal and 30 minutes via email. Priority 1 (Critical) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Firmware and software updates are included throughout the term, with a 95% SLA compliance target.

Q: Can I extend Foundation Support beyond the included 1 year?
A: Yes. Opengear Foundation Support is available in 1, 3, and 5-year terms, with maximum coverage of up to 7 years. Contact IP Trading to discuss renewal or extended-term options (OG-FNTS-OM1300-1YR through OG-FNTS-OM1300-7YR). Co-terming with Lighthouse subscriptions and hardware warranties is also available.

Q: What is the purpose of the integrated 8-port 1GbE switch on this unit?
A: The built-in 8-port switch allows the OM1308-8E-C-LSP to directly connect multiple network devices at a remote or branch site without requiring a separate external switch, reducing rack space, cabling complexity, and overall cost.

Q: How does the 5G cellular modem provide resilience?
A: The integrated 5G modem with dual nano-SIM slots acts as an out-of-band failover path. If the primary WAN connection fails, the OM1308-8E-C-LSP can maintain secure management connectivity via cellular, allowing administrators to access, troubleshoot, and recover remote infrastructure without dispatching on-site staff.

Q: What is Lighthouse Service Portal (LSP) zero-touch enrollment and why does it matter?
A: LSP zero-touch enrollment allows the OM1308-8E-C-LSP to automatically register and configure itself with Opengear's Lighthouse centralised management platform when connected to a network — no manual on-site configuration required. This dramatically simplifies large-scale rollouts across branch, retail, edge, or industrial sites.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
