Moxa WAC-M300 | Wireless Access Controller, 0-50°C, TAP-M310R

Authorised Moxa Partner

SKU:WAC-M300

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

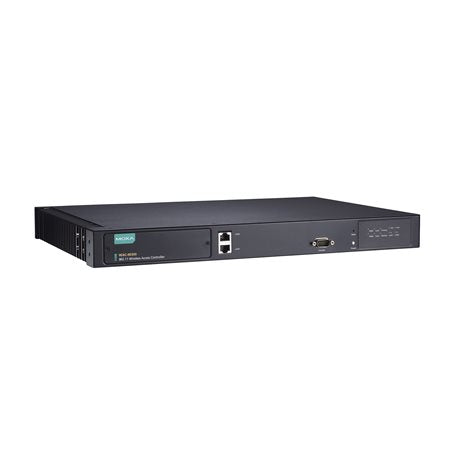

The Moxa WAC-M300 is a rail train-to-ground wireless access controller built for TAP-M310R access points. It delivers Layer 2 controller-based Turbo Roaming with a 50 ms handover time and acts as a 2-in-1 AP controller and mobile IP home agent. This 0 to 50°C rack-mount model supports up to 190 clients roaming between 400 APs on Layer 2 networks.

The controller provides 1-on-1 hot backup failover for device-level redundancy, inter-controller roaming, and IEEE 802.11i wireless security. It fits a standard 19-inch rack in a metal housing, with a web interface and API support for system integration.

Features

- 2-in-1 AP controller and mobile IP home agent
- Millisecond-level controller-based Turbo Roaming
- IEEE 802.11i compliant wireless security
- Scalable tunnelling capacity
- Device-level redundancy via hot standby controller
- Inter-controller roaming
- Web interface with API support for system integration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) RJ45 ports (Port 1: WAC/HA communications, Port 2: reserved)
- Handover time: 50 ms
- Roaming: Turbo Roaming (L2) with inter-controller roaming
- Capacity: up to 190 clients roaming between 400 APs (Layer 2)
- Controller failover: 1-on-1 hot backup
- Supported access points: TAP-M310R Series
- Console port: RS-232 x 1 (DB9 male)
- Power input: 100 to 240 VAC, 1.2 A @ 100 VAC, 2 power inputs
- Housing: metal, 19-inch rack mounting
- Dimensions (without ears): 304 x 440 x 44 mm
- Weight: 5,480 g
- Operating temperature: 0 to 50°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Standards: IEEE 802.11i, IEEE 802.3, 802.3u, 802.3ab, IEEE 802.1X
- Safety: UL 62368-1, EN 62368-1, IEC 62368-1
- EMC/EMI: EN 55032/35, EN 61000-6-2/-6-4, CISPR 32, FCC Part 15B Class A
- Green product: RoHS, CRoHS, WEEE
- MTBF: 770,346 hrs (Telcordia SR-332)

FAQs

Q: Which access points does the Moxa WAC-M300 support?
A: The WAC-M300 supports the TAP-M310R Series access points for rail train-to-ground wireless deployments.

Q: What handover time does the WAC-M300 achieve?
A: It provides Layer 2 controller-based Turbo Roaming with a handover time of 50 ms.

Q: How many clients and access points can it handle?
A: On Layer 2 networks it supports up to 190 clients roaming between 400 APs.

Q: Does the WAC-M300 support controller redundancy?
A: Yes. It supports 1-on-1 hot backup controller failover, providing device-level redundancy.

Q: What is the operating temperature range of this model?
A: This model is rated for operation from 0 to 50°C.

Q: How is the WAC-M300 mounted and powered?
A: It is a metal-housed 19-inch rack-mount unit powered from 100 to 240 VAC, with two power inputs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
