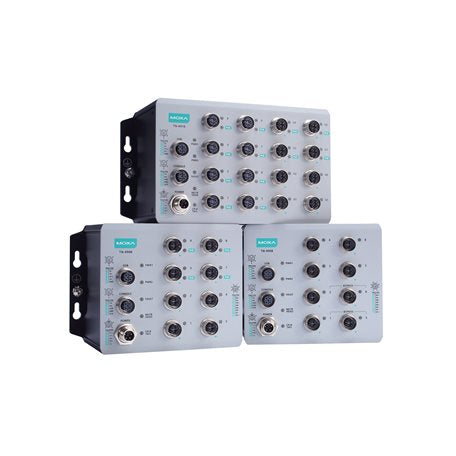

Moxa TN-4916-ETBN-F-4GTXBP-WV-CT-T | TN-4900 ETBN Railway Firewall Router, 12x FE + 4x GbE, 24-110 VDC

Authorised Moxa Partner

SKU:TN-4916-ETBN-F-4GTXBP-WV-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The TN-4900 ETBN railway secure firewall router is an IEC 61375 Ethernet Train Backbone Node built for rolling-stock networks. It provides 12 Fast Ethernet M12 D-coded ports and 4 Gigabit M12 X-coded ports with bypass relay, accepts redundant 24-110 VDC inputs, and is PCB conformal coated for -40 to 70°C operation.

Beyond train backbone connectivity, it combines a router firewall with stateful inspection, DoS/DDoS protection, NAT and up to 250 IPsec VPN tunnels. Routing support covers RIP, OSPF, static routes and VRRP, and the TRDP railway protocol is supported. It is certified to EN 50155 and EN 45545-2 and meets IEC 62443-4-2 Security Level 2 with Secure Boot, in an IP40 metal housing for wall mounting.

Features

- IEC 61375 ETBN functionality for train backbone networks
- Four Gigabit backbone ports with bypass relay
- M12 connectors suited to rolling-stock environments
- Router and transparent (bridge) firewall modes with stateful inspection and DoS/DDoS protection
- IPsec VPN for secure site-to-site and remote connectivity
- NAT (1-to-1, port forwarding, N-to-1) and routing with RIP, OSPF, static routes and VRRP
- IEC 62443-4-2 Security Level 2 with Secure Boot
- Redundant dual power inputs with overload and reverse polarity protection
- PCB conformal coating and -40 to 70°C operating range
- Configuration via CLI (serial, Telnet, SSH), web console (HTTP/HTTPS) or Windows utility

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x 10/100BaseT(X) M12 D-coded 4-pin female ports
- 4 x 10/100/1000BaseT(X) M12 X-coded 8-pin female ports with bypass relay
- IEC 61375 Ethernet Train Backbone Node (ETBN)
- Redundant dual power inputs, 24/36/48/72/96/110 VDC (operating range 16.8 to 137.5 VDC)
- M12 K-coded 5-pin male power connector
- Routing throughput 450,000 FPS; firewall throughput up to 350,000 packets per second
- Up to 250 concurrent IPsec VPN tunnels (3DES, DES, AES-128/192/256)
- Redundancy: RSTP, STP, Turbo Ring v2, static port trunk, VRRP
- Unicast routing: RIPv1/v2, OSPF, static route; railway protocol TRDP
- MAC table 16 K, up to 32 VLANs, 1024 IGMP groups
- RS-232 console port (M12 B-coded) and M12 A-coded USB interface for ABC-02
- IP40 metal housing, wall mounting
- Operating temperature -40 to 70°C, 5 to 95% non-condensing humidity, altitude 3,000 m
- PCB conformal coating
- EN 50155, EN 50121-4, EN 45545-2, IEC 61373, IEC 62368, IEC 62443-4-2 SL2

FAQs

Q: What does ETBN mean on this router?
A: ETBN stands for Ethernet Train Backbone Node under IEC 61375. This unit can act as a backbone node in a train communication network.

Q: What power supply does the TN-4916-ETBN-F-4GTXBP-WV-CT-T need?
A: It has redundant dual DC inputs supporting 24, 36, 48, 72, 96 and 110 VDC, with an operating voltage range of 16.8 to 137.5 VDC. Overload current and reverse polarity protection are supported.

Q: What port types and connectors does it have?
A: It has 12 Fast Ethernet ports on M12 D-coded 4-pin connectors and 4 Gigabit ports on M12 X-coded 8-pin connectors. The four Gigabit ports include a bypass relay.

Q: Does it support firewall and VPN functions?
A: Yes. It provides router and transparent firewall modes, filtering by IP address, MAC address, ports and protocols, DoS/DDoS protection, and up to 250 concurrent IPsec VPN tunnels.

Q: Which railway and security standards does it meet?
A: It is certified to EN 50155 and EN 45545-2 for railway use, and meets IEC 62443-4-2 Security Level 2. Shock and vibration compliance covers IEC 61373.

Q: What temperature range is it rated for?
A: The operating temperature range is -40 to 70°C, and the circuit boards are conformal coated for added environmental protection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
