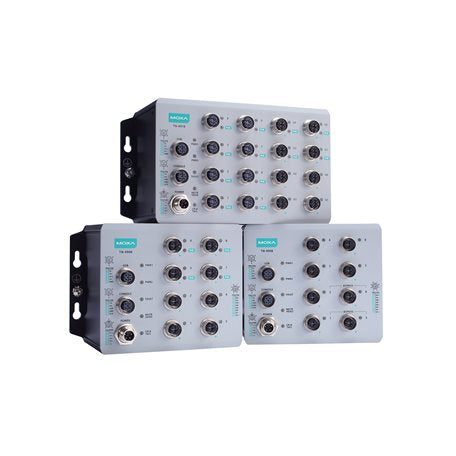

Moxa TN-4916-ETBN-F-12PoE-4GTXBP-WV-CT-T | TN-4900 ETBN Industrial Secure Router, 12 PoE+ FE, 4 GbE Bypass

Authorised Moxa Partner

SKU:TN-4916-ETBN-F-12PoE-4GTXBP-WV-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TN-4916-ETBN-F-12PoE-4GTXBP-WV-CT-T is an IEC 61375 ETBN industrial secure firewall router built for rolling stock backbone networks. It provides 12 Fast Ethernet PoE+ ports and 4 Gigabit ports with bypass relay, a 95 W total PoE power budget, wide 24-110 VDC redundant power input, conformal coating and operation from -40 to 70°C.

M12 connectors suit demanding train environments, and the unit meets EN 50155 and IEC 61373 shock requirements. Firewall, NAT and routing support are combined with Turbo Ring v2 and RSTP/STP redundancy, plus secure management over SSH, HTTPS and SNMPv3, for dependable and secure onboard networking.

Features

- IEC 61375 ETBN functionality
- Firewall and NAT/routing support
- Redundancy: Turbo Ring v2, RSTP/STP, static port trunk
- Management via CLI (Serial/Telnet/SSH), web console (HTTP/HTTPS), SNMPv1/v2c/v3
- IEEE 802.1X authentication, VLAN (802.1Q), QoS
- Redundant dual power inputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x 10/100BaseT(X) PoE+ ports, M12 D-coded 4-pin female, with bypass relay
- 4 x 10/100/1000BaseT(X) ports, M12 X-coded 8-pin female, with bypass relay
- IEEE 802.3af/at PoE/PoE+ output, 95 W total PoE power budget
- Input voltage: 24/36/48/72/96/110 VDC, redundant dual inputs
- Operating temperature: -40 to 70°C
- IP40 protection
- Conformal coating
- Shock: IEC 60068-2-27, IEC 61373, EN 50155
- Wallmount installation

FAQs

Q: What is the PoE power budget on this router?
A: The 12 Fast Ethernet ports support IEEE 802.3af/at PoE/PoE+ with a 95 W total PoE power budget shared across the ports.

Q: What connectors does the TN-4916-ETBN-F-12PoE-4GTXBP-WV-CT-T use?
A: The 12 Fast Ethernet PoE+ ports use M12 D-coded 4-pin female connectors, and the 4 Gigabit ports use M12 X-coded 8-pin female connectors.

Q: What is the bypass relay on the Ethernet ports?
A: Both the 12 PoE+ ports and the 4 Gigabit ports include a bypass relay.

Q: What power input does it accept?
A: It accepts 24/36/48/72/96/110 VDC on redundant dual inputs, which suits typical rolling stock supply voltages.

Q: Is it suitable for harsh environments?
A: Yes. It operates from -40 to 70°C, has conformal coating and IP40 protection, and meets shock requirements under IEC 60068-2-27, IEC 61373 and EN 50155.

Q: What redundancy and management options are supported?
A: Redundancy options are Turbo Ring v2, RSTP/STP and static port trunk. Management is via CLI over serial, Telnet or SSH, a web console over HTTP or HTTPS, and SNMPv1/v2c/v3.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
