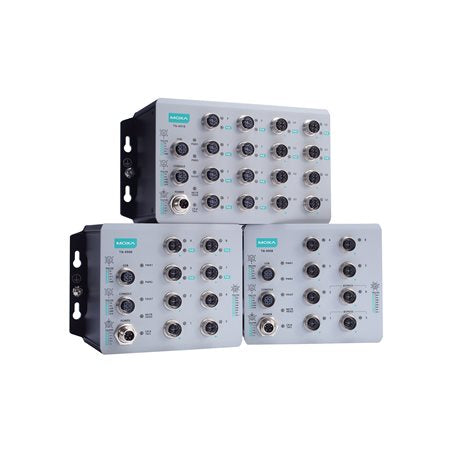

• Three gray Moxa TN-4916-ETBN modules with black connectors and teal branding
1 1

Moxa

Moxa TN-4916-ETBN-8PoE-4GPoE-4GTXBP-WV-CT-T | TN-4900 ETBN Secure Router, 8x PoE+ FE, M12, 4x GbE PoE+

Moxa TN-4916-ETBN-8PoE-4GPoE-4GTXBP-WV-CT-T | TN-4900 ETBN Secure Router, 8x PoE+ FE, M12, 4x GbE PoE+

Authorised Moxa Partner

TN-4916-ETBN-8PoE-4GPoE-4GTXBP-WV-CT-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The TN-4900 ETBN secure router with 8x PoE+ Fast Ethernet ports, 4x Gigabit PoE+ ports and 4x Gigabit ports with bypass relay is built for rolling stock backbone networks. It supports IEC 61375 ETBN and uses M12 connectors throughout: M12 D-coded for the Fast Ethernet PoE+ ports and M12 X-coded for the Gigabit ports. A 95 W total PoE budget powers connected devices such as cameras and access points, and the redundant 24 to 110 VDC dual power inputs suit train power systems. The conformal-coated PCB and IP40 metal housing support operation from -40 to 70°C.

Routing and security are built in, with static routes, RIP and OSPF, NAT, VRRP, a stateful firewall and IPsec VPN with up to 250 tunnels. Secure Boot and IEC 62443-4-2 Security Level 2 support cybersecurity requirements, and TRDP railway protocol support, EN 50155, EN 50121-4 and EN 45545-2 compliance suit railway deployments.

Features

- Designed for rolling stock backbone networks with IEC 61375 ETBN support
- Four Gigabit backbone ports with bypass relay
- NAT and routing functionality, including RIP, OSPF and static routes, to support cross-network deployments
- Stateful inspection firewall in router and transparent (bridge) modes
- DoS/DDoS protection and IPsec VPN with up to 250 tunnels
- Secure Boot and IEC 62443-4-2 Security Level 2 cybersecurity
- TRDP railway protocol support
- PCB conformal coating, IP40 metal housing and -40 to 70°C operating range
- Redundant dual wide-range DC power inputs (24 to 110 VDC) with overload and reverse polarity protection
- Turbo Ring v2, RSTP and VRRP redundancy

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) PoE+ ports (M12 D-coded 4-pin female)
- 4 x 100/1000BaseT(X) PoE+ ports (M12 X-coded 8-pin female)
- 4 x 10/100/1000BaseT(X) ports with bypass relay (M12 X-coded 8-pin female)
- 95 W total PoE power budget
- 24/36/48/72/96/110 VDC redundant dual power inputs, 16.8 to 137.5 VDC operating voltage
- Power connector: M12 K-coded 5-pin male
- Maximum power consumption: 40.5 W
- Routing throughput: 450,000 FPS (pure routing)
- Firewall throughput: up to 350,000 packets per second
- Up to 250 concurrent IPsec VPN tunnels
- MAC table size 16 K, up to 32 VLANs, 1024 IGMP groups
- Console port: RS-232 (M12 B-coded 5-pin female)
- USB interface: M12 A-coded 5-pin female for ABC-02 USB storage
- IP40 metal housing, wall mounting
- Dimensions: 206 x 115 x 100 mm, weight 1990 g
- Operating temperature: -40 to 70°C
- Compliance: EN 50155, EN 50121-4, EN 45545-2, IEC 61373, IEC 62443-4-2 Security Level 2
- MTBF: 472,578 hrs (Telcordia SR332 Issue 2)

FAQs

Q: What power input does this router accept?
A: It has redundant dual DC inputs supporting 24/36/48/72/96/110 VDC, with an operating voltage range of 16.8 to 137.5 VDC. Power is delivered through an M12 K-coded 5-pin connector, and overload current and reverse polarity protection are supported.

Q: How many PoE ports does it have and what is the PoE budget?
A: It provides 8 Fast Ethernet PoE+ ports on M12 D-coded connectors and 4 Gigabit PoE+ ports on M12 X-coded connectors, sharing a 95 W total PoE power budget.

Q: What is the bypass relay used for?
A: Four of the Gigabit ports (M12 X-coded) include a bypass relay as part of the ETBN backbone design, helping maintain backbone connectivity in rolling stock networks.

Q: Which railway standards does it comply with?
A: It is compliant with EN 50155, EN 50121-4, EN 45545-2 fire protection, and IEC 61373 shock and vibration, and supports the TRDP railway protocol.

Q: What VPN and security capabilities are supported?
A: It supports IPsec VPN with up to 250 concurrent tunnels, with encryption options of 3DES, DES and AES-128/192/256. It also provides a stateful firewall, Secure Boot, RADIUS and IEC 62443-4-2 Security Level 2.

Q: What routing and redundancy protocols does it support?
A: It supports static routing, RIPv1/v2 and OSPF for unicast routing, VRRP for routing redundancy, and Turbo Ring v2, RSTP and STP for Layer 2 redundancy.
